Tile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic

Johnson Tools Manufactory Co., Ltd.
  • Customized：Customized
  • Standard：SGS,GB
  • Length：62mm
  • Type：Core Drill Bit
  • Material：Diamond
  • Usage：Masonry Drilling, Ceramic, Porcelain, Stone.

Base Info

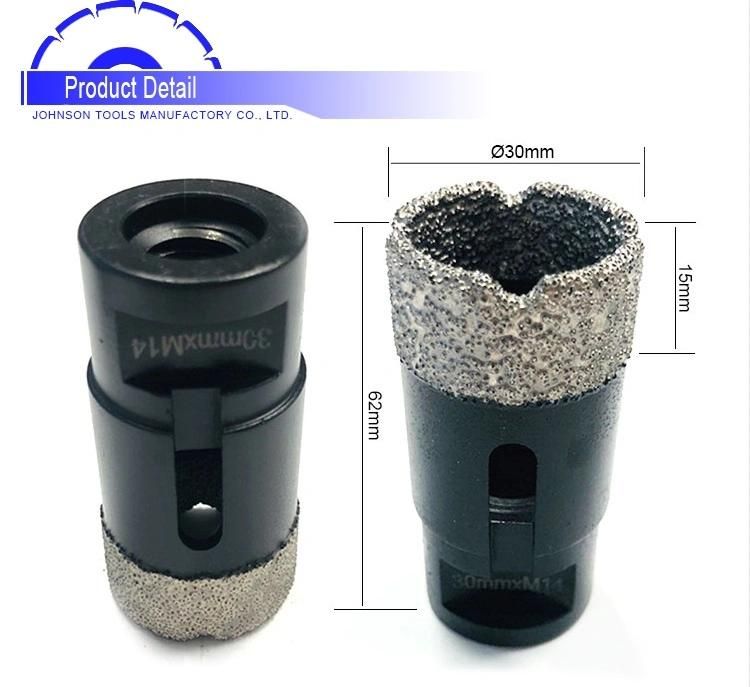

  • Diameter：30mm
  • Total Length：62mm
  • Segment Height：15mm

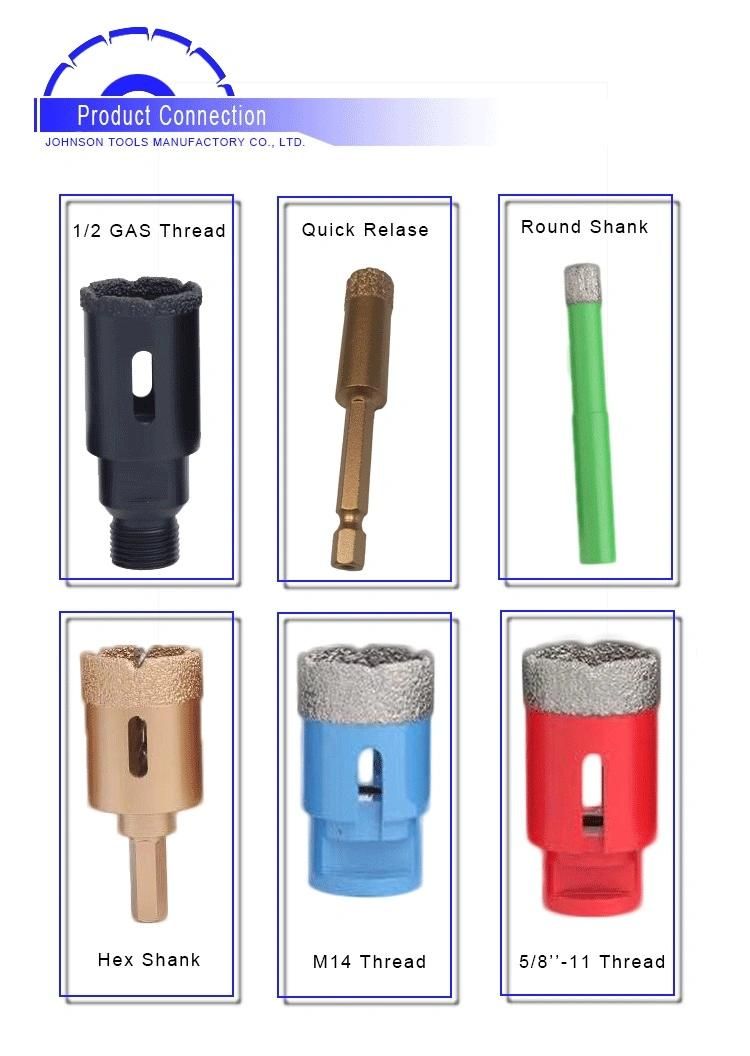

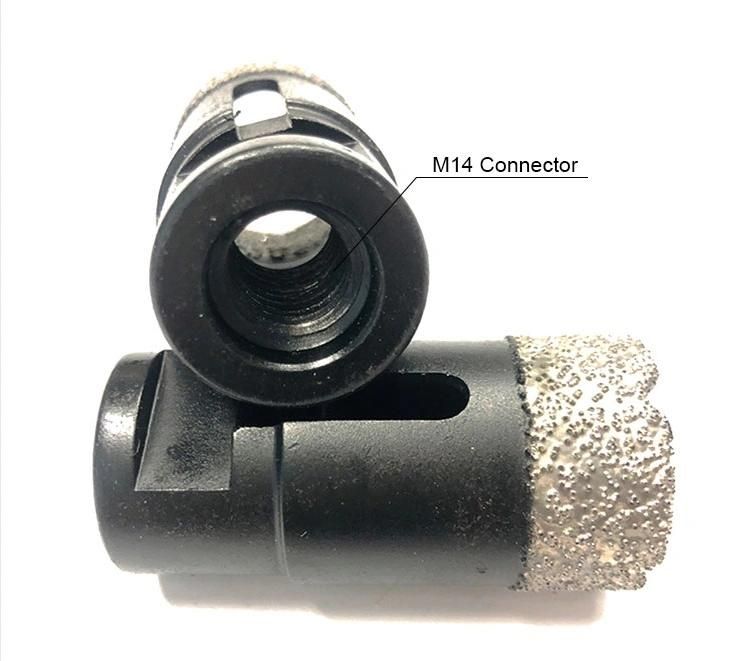

  • Thread：M14 or 5,8"-11

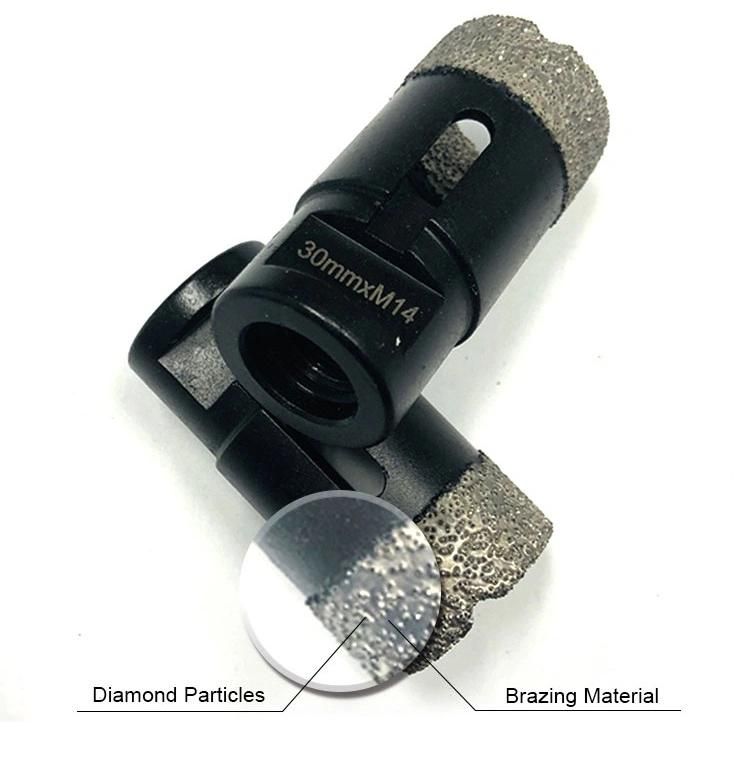

  • Technology：Vacuum Brazed
  • Application：Wet Drilling or Dry Drilling
  • Delivery Date：15-20days
  • MOQ：20PCS
  • Transport Package：Aluminum Box Packaging
  • Specification：30MM
  • Trademark：Johnson Tools
  • Origin：China
  • Production Capacity：10000PCS,Month

Description

Product NameTile Hole Cutter Diamond Core Drill Bits For Porcelain CeramicSize30mmConectionM14 Thread (5/8"-11 thread)Total Length62mmSegment Height15mmApplicationPorcelain, Ceramic, TileFeatures1. Vacuum Brazed Diamond Core Bits are very aggressive ideal for drilling ceramic and porcelain tiles  with super high precision while leaving smooth edges with minimal chipping.
2. Vacuum brazed technology is superior to electroplating in that the bits last much longer than electro-plated diamond bits.

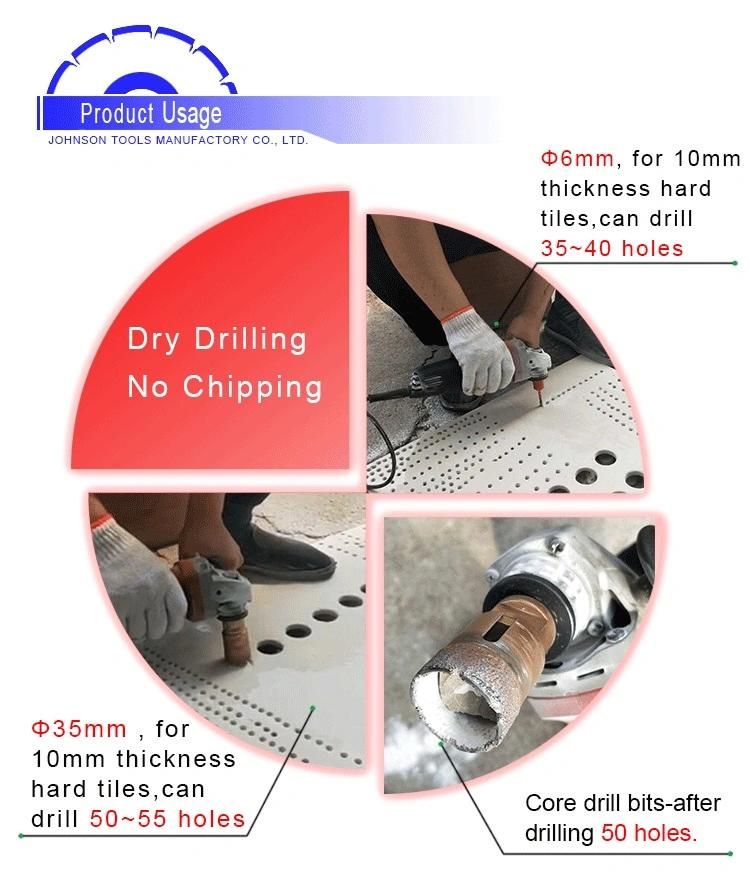

3. They can typically drill more than 30 holes although life is dependent on type of material.

Tile Hole Cutter Diamond Core Drill Bits for Porcelain CeramicTile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic

Tile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic
Tile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic
Tile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic
Tile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic
Tile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic
Tile Hole Cutter Diamond Core Drill Bits for Porcelain Ceramic
