• Model NO.：ZT10
• Origin：China
• HS Code：843143200
• Production Capacity：50000,Year

Basic Info.

Model NO. ZT10 Origin China HS Code 843143200 Production Capacity 50000/Year

Product Description

All the information you need to locate underground utilities with ease and confidence!

The Mapping Display confirms a good locate signal and identifies distortion in congested areas using:

Target Line---Guides the operator down the line and shows changes in direction.
Left-Right Guidance Arrows---Points the operator to the target utility.
Proximity Signal and signal Strength-----Helps the operator center the locator closer to the target for more confident locates.

Other features include:
Continual Depth---Increase productivity by showing depth changes in real time.
Current----Identifies current on target line for faster diagnosis of complex locates.
Sensitivity---Customizes the SRM-ZT10 to locate within specified depth ranges.


Catalog No.	Description	Shipping weight

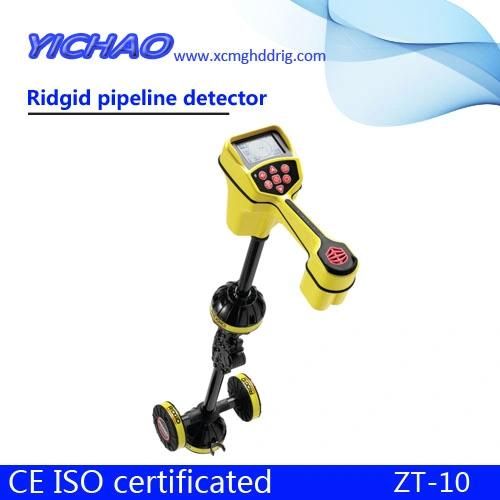

21893	SeekTech SRM-ZT10 Line Locator	3.9 lbs/1.8 kg

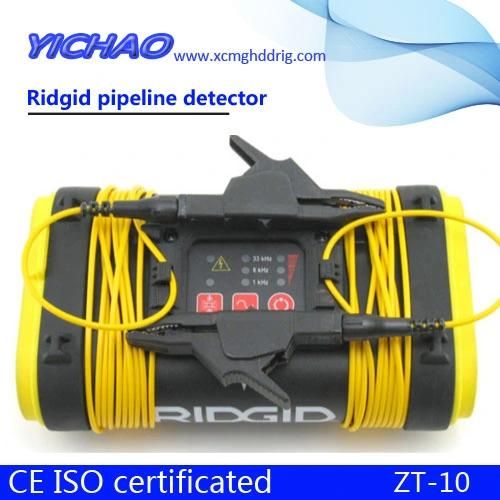

21898	SeekTech ST-305 Transmitter(5 watts)	2.4 lbs/1.1 kg

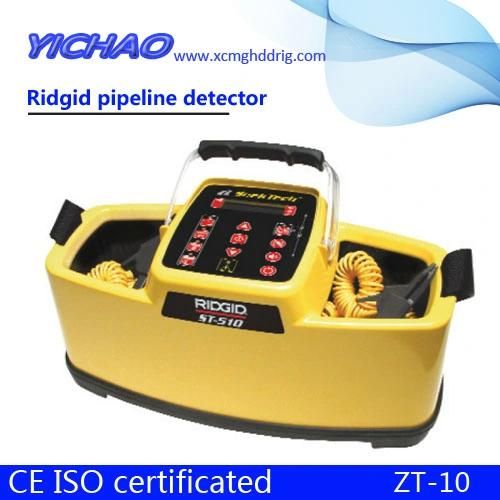

21903	SeekTech ST-510 Transmitter(10 watts)	8.9 lbs/4.0 kg

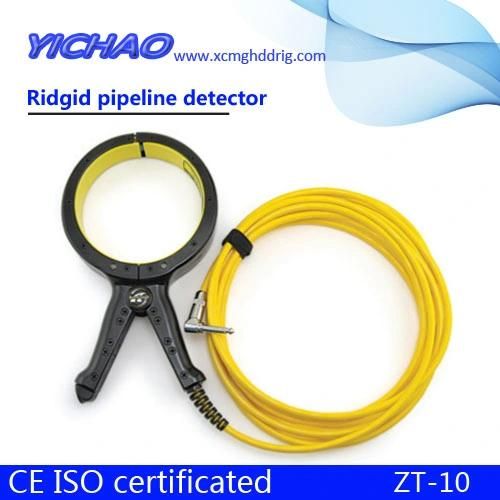

20973	SeekTech 4" Inductive Signal Clamp	1.8 lbs/0.8 kg

Specifications:
Active Line
Trace Frequencies...........128Hz,1kHz,8kHz,33kHz
Passive Power Trace.......50Hz,60Hz,<4kHz Broadband
Passive Radio Trace.......4kHz-15kHz,15kHz-36kHz
Sonde Frequencies.........16Hz,512Hz,33kHz
Weight..............................3.9 lbs
Power Source...................4 C-Size Batteries
