Professional Diamond Core Drill for Cured Concrete
QUANZHOU HISEN DIAMOND TOOL CO., LTD.- Material:Diamond
- Customized:Customized
- Usage:Stone Cutting, Drilling, Engineering Material
- Manufacturing Arts:Welding
- Kind:Diamond Drill
- Specification:14mm to 500mm
Base Info
- Model NO.:Diamond drill
- Saw Blade External Diameter:16mm to 500mm
- Application:Reinforced Concrete
- Length of Barrel:400mm, 450mm, 500mm
- Transport Package:Wood Carton & Paper Carton
- Trademark:OEM and ODM
- Origin:Quanzhou, China
- Production Capacity:4000PCS,Month
Description
Basic Info.
Model NO. Diamond drill Saw Blade External Diameter 16mm to 500mm Application Reinforced Concrete Length of Barrel 400mm, 450mm, 500mm Transport Package Wood Carton & Paper Carton Trademark OEM and ODM Origin Quanzhou, China Production Capacity 4000PCS/MonthProduct Description

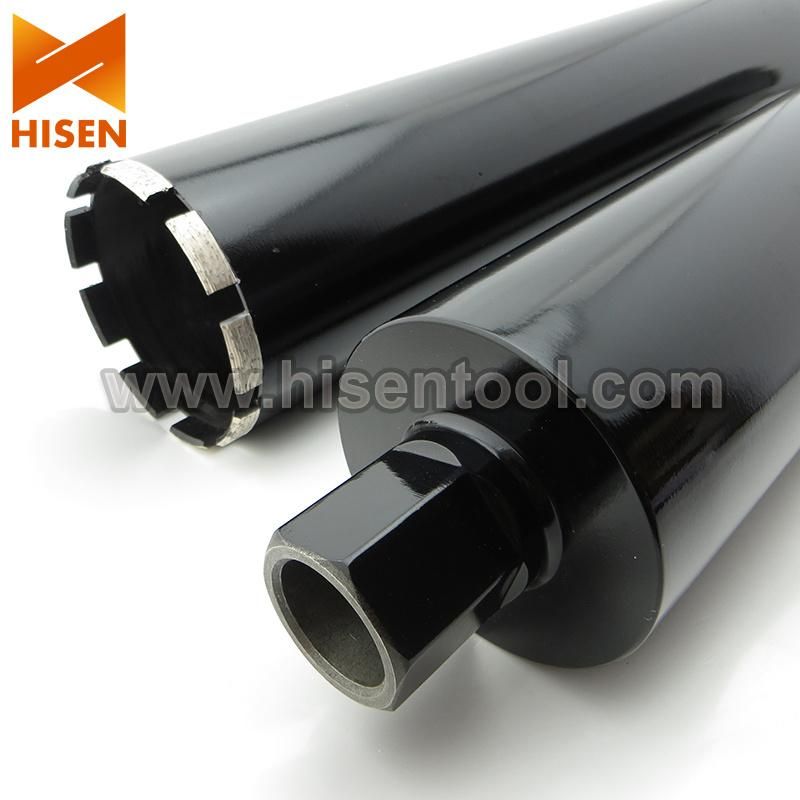

Our company specialized in producing laser welded diamond core drill bits, which are mainly used for wet cutting reinforced concrete, concrete, masonry walls. Laser welding not only gives the bit the ability to cut through reinforced concrete, but it also prevents segment loss. Crown segments are used on bits less than 2" diameter. Bits 2" diameter and above are segmented and laser welded.Features: Fast cutting, long life
Thread: 1 1/4-7 UNC female thread
Welded: Leaser welding
Type: Wet Drilling
Segment type: flat segments, roof segments, turbo segments
Other length and thread can be produced as required.
Item No. | Diameter mm | Segment Height mm | Segment width mm | Valid Length mm |
CBC16 | 16 | 10 | 2.5 | 400/450/500 |
CBC18 | 18 | 10 | 2.5 | 400/450/500 |
CBC20 | 20 | 10 | 2.5 | 400/450/500 |
CBC22 | 22 | 10 | 2.5 | 400/450/500 |
CBC24 | 24 | 10 | 2.5 | 400/450/500 |
CBC26 | 26 | 10 | 2.5 | 400/450/500 |
CBC28 | 28 | 10 | 3.0 | 400/450/500 |
CBC32 | 32 | 10 | 3.0 | 400/450/500 |
CBC35 | 35 | 10 | 3.0 | 400/450/500 |
CBC38 | 38 | 10 | 3.0 | 400/450/500 |
CBC40 | 40 | 10 | 3.0 | 400/450/500 |
CBC44 | 44 | 10 | 3.0 | 400/450/500 |
CBC52 | 52 | 10 | 3.5 | 400/450/500 |
CBC62 | 62 | 10 | 3.5 | 400/450/500 |
CBC77 | 77 | 10 | 3.5 | 400/450/500 |
CBC83 | 83 | 10 | 3.5 | 400/450/500 |
CBC102 | 102 | 10 | 3.5 | 400/450/500 |
CBC108 | 108 | 10 | 3.5 | 400/450/500 |
CBC112 | 112 | 10 | 3.5 | 400/450/500 |
CBC122 | 122 | 10 | 3.5 | 400/450/500 |
CBC127 | 127 | 10 | 3.5 | 400/450/500 |
CBC132 | 132 | 10 | 3.5 | 400/450/500 |
CBC152 | 152 | 10 | 4.0 | 400/450/500 |
CBC162 | 162 | 10 | 4.0 | 400/450/500 |
CBC177 | 177 | 10 | 4.0 | 400/450/500 |
CBC182 | 182 | 10 | 4.0 | 400/450/500 |
CBC200 | 200 | 10 | 4.0 | 400/450/500 |
CBC225 | 225 | 10 | 4.5 | 400/450/500 |
CBC253 | 253 | 10 | 4.5 | 400/450/500 |
CBC300 | 250 | 10 | 5.0 | 400/450/500 |
CBC350 | 350 | 10 | 5.0 | 400/450/500 |
CBC400 | 400 | 10 | 5.0 | 400/450/500 |
CBC500 | 500 | 10 | 5.5 | 400/450/500 |
