• Model NO.：DNHF
• Applications：Building and Industrial
• Shank Type：Fein Shank
• Surface Treatment：All-Ground
• Transport Package：Blister Box
• Specification：D 12mm~60mm, D. O. C. 35mm
• Trademark：CHTOOLS
• Origin：China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. DNHF Applications Building and Industrial Shank Type Fein Shank Surface Treatment All-Ground Transport Package Blister Box Specification D 12mm~60mm, D. O. C. 35mm Trademark CHTOOLS Origin China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

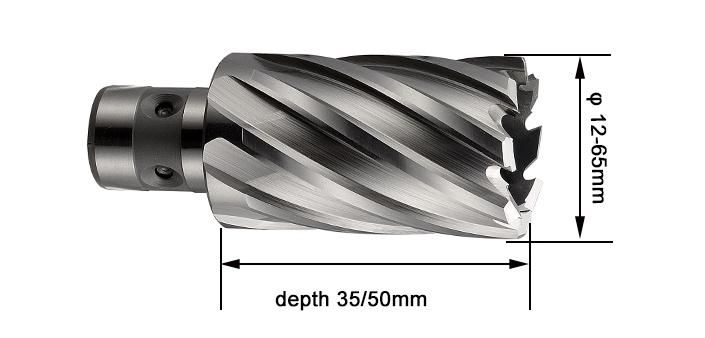

1. 18mm Fein Quick-In shank. Suitable on Fein Magnetic drill machines.

2. Made of high-performance high speed steel., e. G. M2, M2AL, M35, M42 etc. And can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic.

3. Special multi-cut geometry with ply-cutting and lower friction to reach better performance of endurance and removal of chips. So its life is lengthened. It is stable made and can cut with high speed, and make the surface of materials smooth. It has exact diameter and can use after regrinding.

4. The specifications from the Φ 12mm ~ Φ 65mm, depth of cutting 35mm, 50mm series.

5. TiN or TiAIN coating are available upon request

6. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.


Type	Size	Type	Size
DNHF-30120	12*35	DNHF-30370	37*35
DNHF-30130	13*35	DNHF-30380	38*35
DNHF-30140	14*35	DNHF-30390	39*35
DNHF-30150	15*35	DNHF-30400	40*35
DNHF-30160	16*35	DNHF-30410	41*35
DNHF-30170	17*35	DNHF-30420	42*35
DNHF-30180	18*35	DNHF-30430	43*35
DNHF-30190	19*35	DNHF-30440	44*35
DNHF-30200	20*35	DNHF-30450	45*35
DNHF-30210	21*35	DNHF-30460	46*35
DNHF-30220	22*35	DNHF-30470	47*35
DNHF-30230	23*35	DNHF-30480	48*35
......	......	......	......
DNHF-30350	35*35	DNHF-30600	60*35
DNHF-30360	36*35
