• Model NO.：SCY-68HD
• Color：Red
• Transport Package：Iron Box
• Specification：CE
• Trademark：CAYKEN
• Origin：Shanghai
• Production Capacity：5000 Per Month

Basic Info.

Model NO. SCY-68HD Color Red Transport Package Iron Box Specification CE Trademark CAYKEN Origin Shanghai Production Capacity 5000 Per Month

Product Description

Specifications

Diamond core drillIing machine
With CE certifacate
Professional manufacture in the field of drilling machine
We can offer OEM



Choose our advantage:

Professional manufacture in the field of drilling machine in China.

Diamond/Magnetic core drillIing machine and wall cutter.

With CE certifacate and offer OEM.

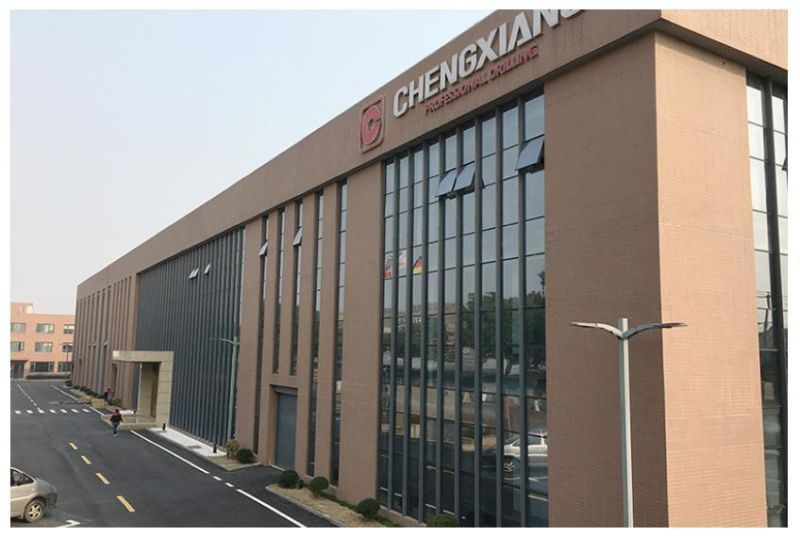

Factory Introduce:

Shanghai Chengxiang Electromechanical Equipment Co., Ltd.

It is a hi-tech enterprise which boasts of its scientific research, manufacturing, and sales.

We are an experts in the field of drilling in China.


Product detail:


Model: SCY-68HD


Packing detail:



Product feature:

1. Soft-starting, constant power.
2. Over-loading protection.
3. Stepless speed-regulating.
4. High magnetic adhesion.

Introduction Magnetic Drilling:


Magnetic drill is a kind of electric tool for adhering and drilling on the horizontal level, side face and top face, and widely used in the building, bridge building, and ship building industries and so on.

You can use the magnetic drill when you can not use drill press and electric hand drill to drill huge steel workpieces or in field operation.

They are convenient and small, and can reducing work force and improve the machining accuracy and effiency.

Feature: Over-load protection, gear speed regulation, etc.

Product Model	SCY-32HD	SCY-42HD	SCY-68HD	SCY-98HD
Drill Range	32mm	42mm	68mm	98mm
Rated Voltage	110/220V	110/220V	110/220V	110/220V
Rated Frequency	50-60HZ	50-60HZ	50-60HZ	50-60HZ
Rared Input Power	1550W	1700W	1890W	2180W
No-Load Speed	100 -520RPM	100-450RPM	100-420RPM	100-385RPM
WEIGHT:	9.8KGS	11.5KGS	15KGS	18KGS
