• Model NO.：WD-044
• Flute Type：Double Flutes
• Transport Package：One Piece in One PVC Pouch or in One PVC Tube
• Specification：6-28mm
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. WD-044 Flute Type Double Flutes Transport Package One Piece in One PVC Pouch or in One PVC Tube Specification 6-28mm Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

Product Name

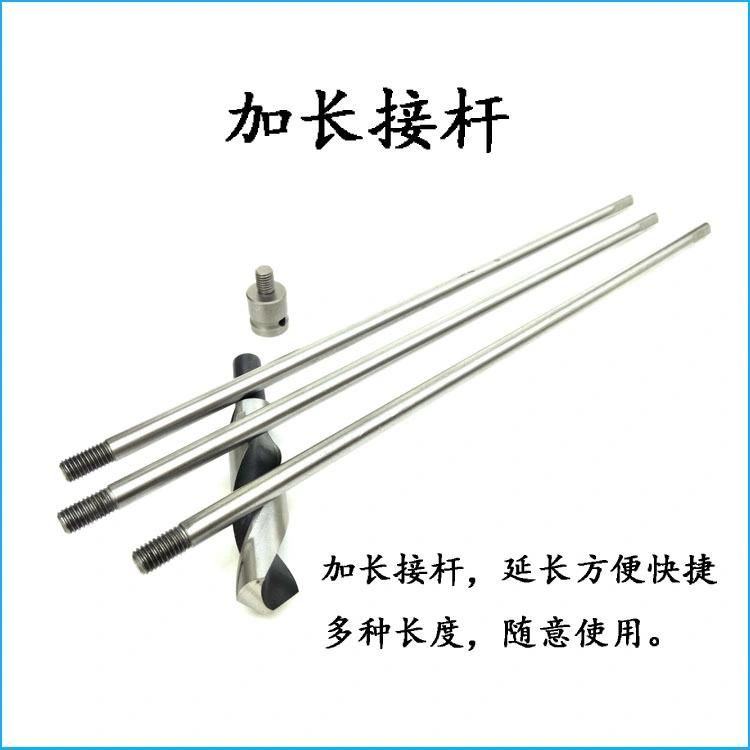

Thread Connected Wood Formwork Drill Bit with Extension Bar for Wood Metal Formwork

Material

High Speed Steel     (Cabon Steel is Available)

Process

Rolled     (Milled is Available)

Shank

Round Shank with Extension Bar    (Tri-flats Shank, Impact Shank, SDS Plus Shank are available)

Flute

Double Flutes

Surface Finish

Black & Bright

Package

One piece in Double Blister or PVC bag.

Features

1. HSS twist drill bit with long shank, drill bit tip of 118°, manufactured to DIN 7490.

2. Very robust drill bit: the drill bit and shank end are screw-connected, which ensures low risk of breakage and improved smooth running properties
3. Tapered flute and offset drill bit and shank ends prevent jamming, even in moist wood
4. Drilling through the inner and outer formwork boards in one operation.
5. Suitable for formwork, interior fitting work, plumbing, heating, electrical installation, also for metals, e.g. sandwich material with steel, aluminium or profile sheeting, wood, plasterboard, light building materials, insulation.


Dia	Overall Length(mm)	Shank Dia
6	400/500/600	5
8	400/500/600	6
10	400/500/600	8
12	400/500/600	8
14	400/500/600	8
16	400/500/600	10
18	400/500/600	10
20	400/500/600	10
22	400/500/600	10
24	400/500/600	11
26	400/500/600	11
28	400/500/600	11
