Laser Welded Diamond Core Drill Bits for Reinforced Concrete (Professional)

QUANZHOU HISEN DIAMOND TOOL CO., LTD.
  • Type：Core Drill Bit, Core Drill
  • Material：Diamond
  • Classification：Hand Drill
  • Applications：Building and Industrial
  • Customized：Non-Customized
  • Condition：New

Base Info

  • Model NO.：Core drill
  • Drill Brand：Hisen
  • Quality Grade：Professional Quality
  • Welded：Laser Welded
  • Transport Package：Paper Boxes
  • Specification：SGS, MPA
  • HS Code：82075010
  • Production Capacity：10000PCS,Month

Description

Basic Info.

Model NO. Core drill Drill Brand Hisen Quality Grade Professional Quality Welded Laser Welded Transport Package Paper Boxes Specification SGS, MPA HS Code 82075010 Production Capacity 10000PCS/Month

Product Description

Real Factory == √ Strictly Quality Control == √ Good Price == √ High quality

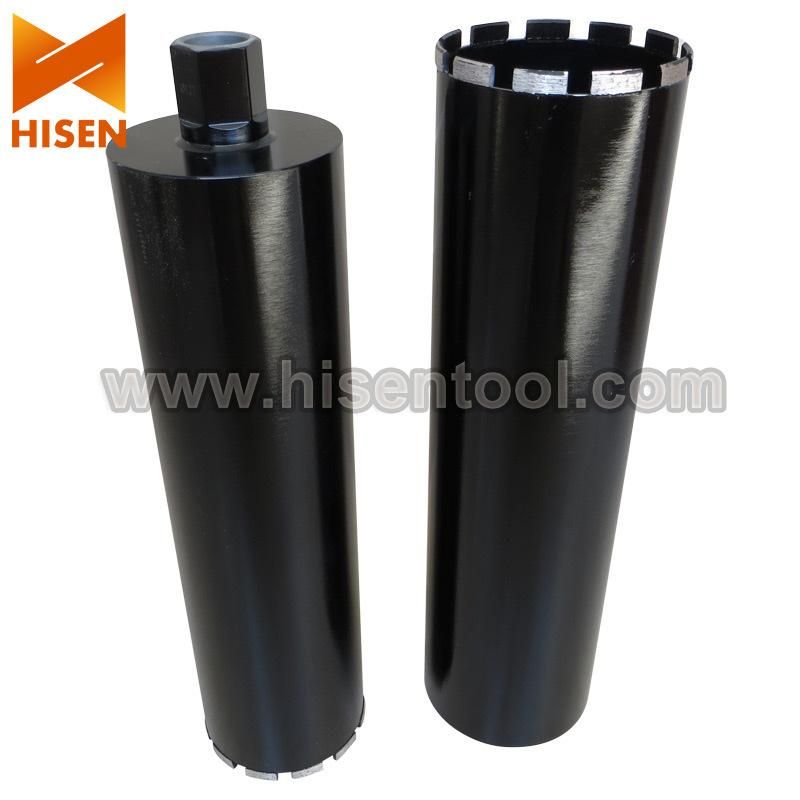

Our company specialized in producing laser welded diamond core drill bits, which are mainly used for wet cutting reinforced concrete, concrete, masonry walls. Laser welding not only gives the bit the ability to cut through reinforced concrete, but it also prevents segment loss.

Features: Fast cutting, long life
Thread:  1 1/4-7 UNC female thread
Welded:  Leaser welding

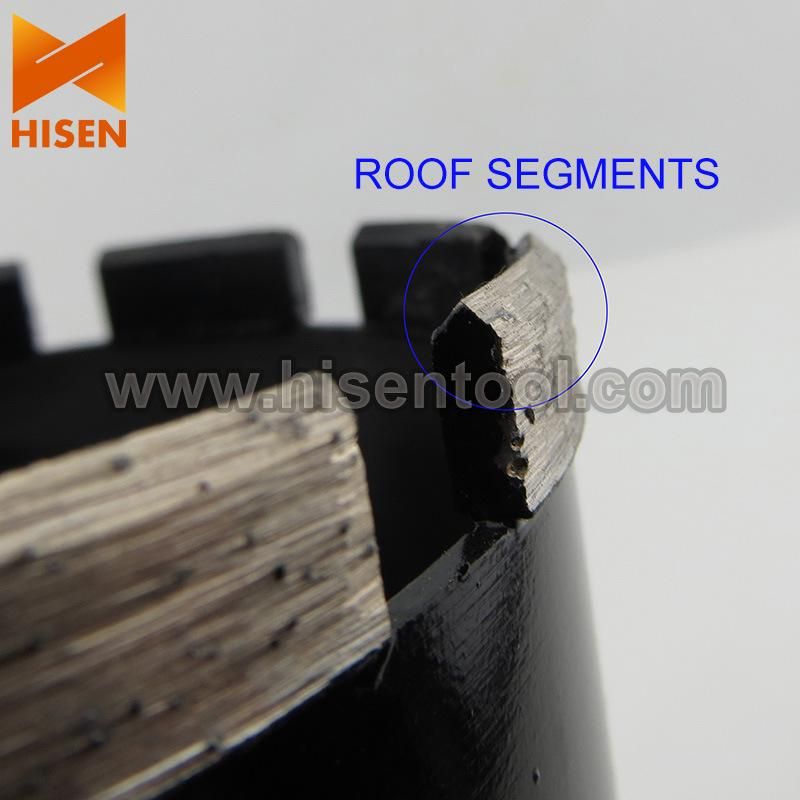

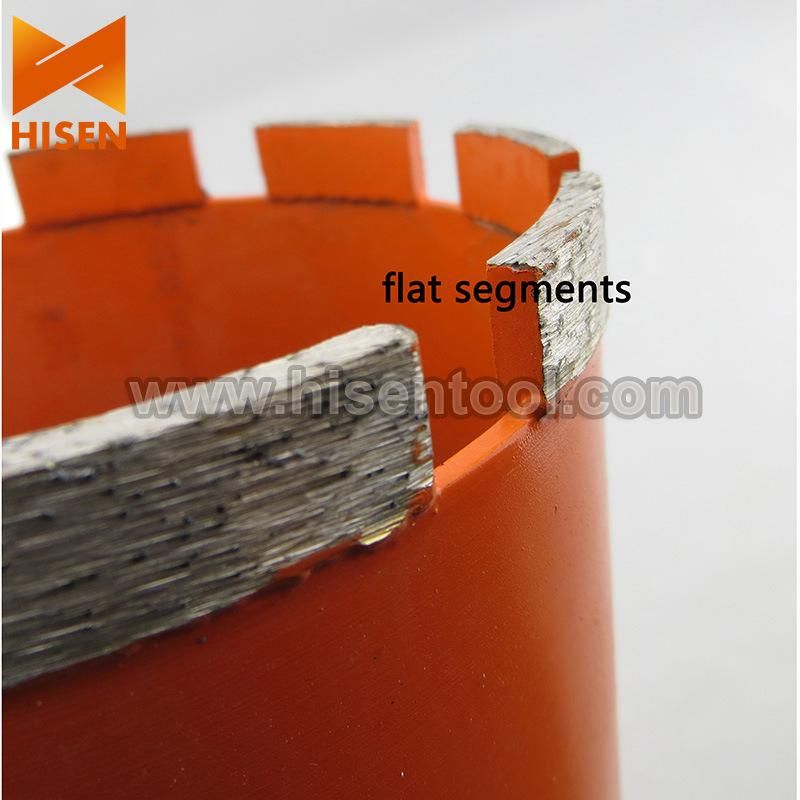

Segment type:  flat segments, roof segments, turbo segments
Other length and thread can be produced as required.

Laser Welded Diamond Core Drill Bits for Reinforced Concrete (Professional)

Item No.Diameter
mm		Segment Diamension
Width*height mm		Valid Length
mm
CBC16162.5 *10400/450/500
CBC18182.5 *10400/450/500
CBC20202.5 *10400/450/500
CBC22222.5 *10400/450/500
CBC25242.5 *10400/450/500
CBC26262.5 *10400/450/500
CBC28282.5 *10400/450/500
CBC32323.0 *10400/450/500
CBC35353.0 *10400/450/500
CBC38383.0 *10400/450/500
CBC40403.0 *10400/450/500
CBC42423.0 *10400/450/500
CBC45453.0 *10400/450/500
CBC48483.0 *10400/450/500
CBC52523.5 *10400/450/500
CBC58583.5 *10400/450/500
CBC62623.5 *10400/450/500
CBC70703.5 *10400/450/500
CBC76763.5 *10400/450/500
CBC83833.5 *10400/450/500
CBC89893.5 *10400/450/500
CBC1021023.5 *10400/450/500
CBC1081083.5 *10400/450/500
CBC1121123.5 *10400/450/500
CBC1221223.5 *10400/450/500
CBC1271273.5 *10400/450/500
CBC1321323.5 *10400/450/500
CBC1401404.0 *10400/450/500
CBC1521524.0 *10400/450/500
CBC1621624.0 *10400/450/500
CBC1781784.0 *10400/450/500
CBC1821824.0 *10400/450/500
CBC2002004.0 *10400/450/500
CBC2252254.5 *10400/450/500
CBC2542544.5 *10400/450/500
CBC3003005.0 *10400/450/500
CBC3503505.0 *10400/450/500
CBC4004005.0 *10400/450/500
CBC5005005.5 *10400/450/500
