• Model NO.：WD-030
• Head Tip：Tri-Point with Cutting Groove
• Transport Package：One Piece in One PVC Pouch or in One PVC Tube
• Specification：6 and 12 inch
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. WD-030 Head Tip Tri-Point with Cutting Groove Transport Package One Piece in One PVC Pouch or in One PVC Tube Specification 6 and 12 inch Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

Product Name

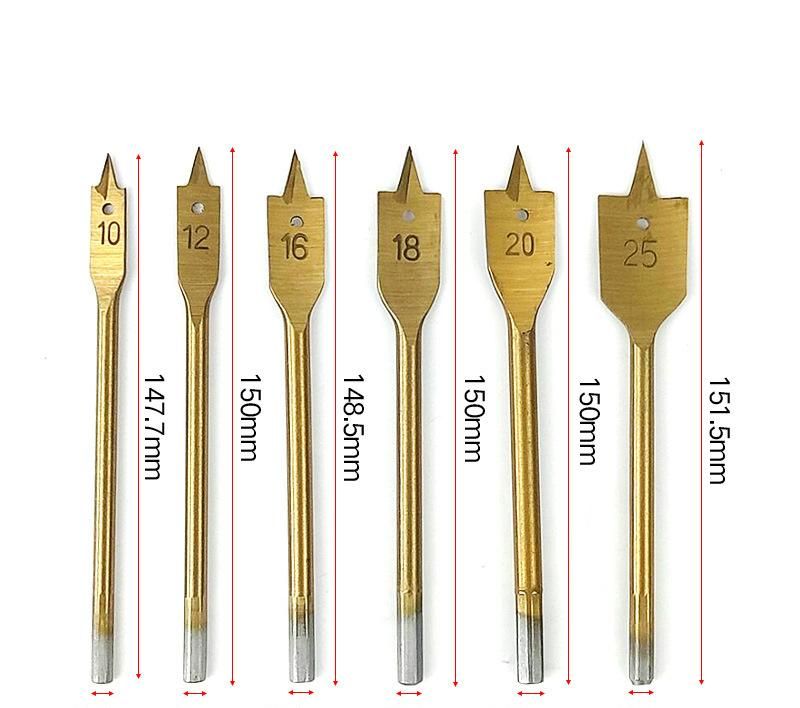

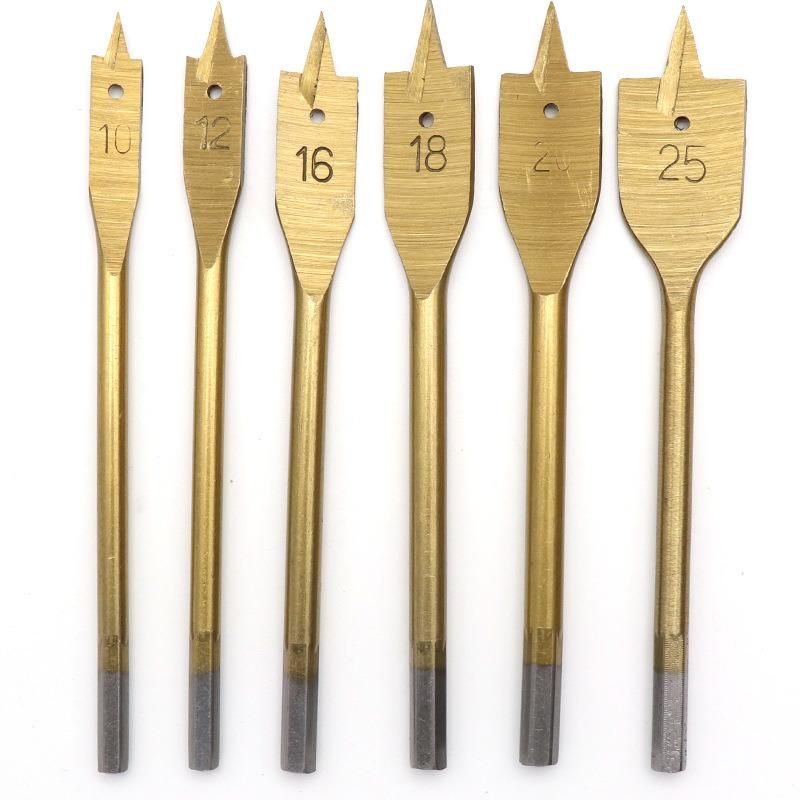

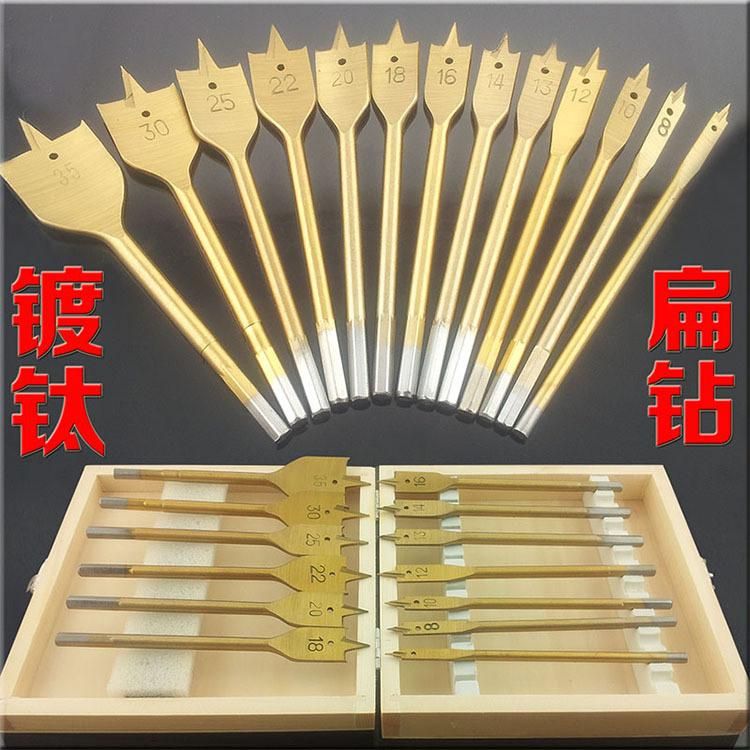

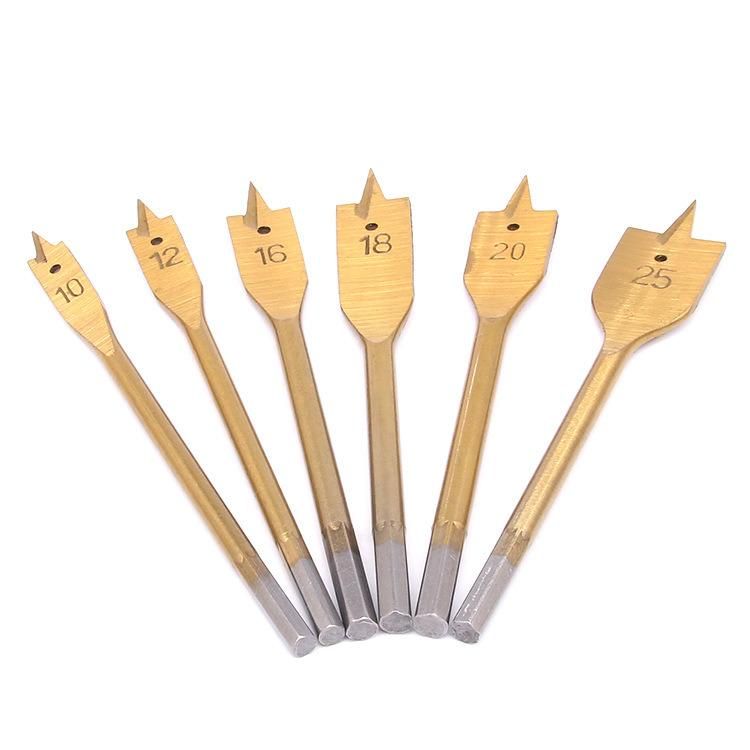

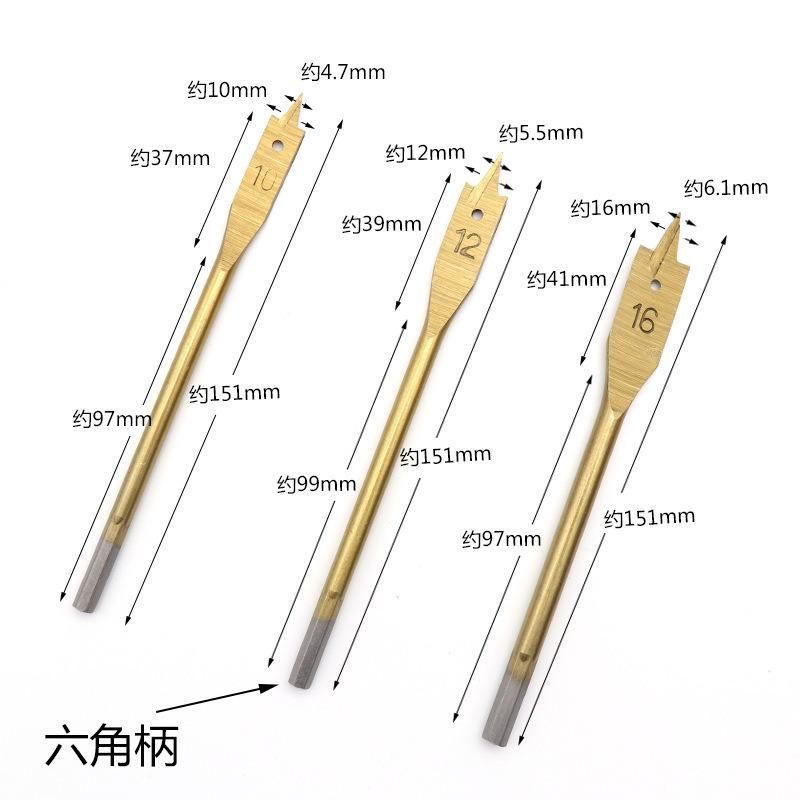

Titanium Coating Quick Change Hex Shank Tri-Point Flat Wood Spade Drill Bit with Cutting Groove

Material

High Carbon Steel with Heat Treatment

Shank Type

Quick Change Hex Shank   ( Hex Shank is available)

Head Tip

Tri-Point with Cutting Groove   (Center Point and Tri-Point are available)

Surface Finish

Titanium Coating  (Black oxide and Bright are available)

Package

One Piece in One PVC Pouch or PVC Skin Card  or Paper Sandwich  or PVC Double Blister

Features

1. Expert quality, manufactured from 45#special carbon steel hardened and tempered.

2. Full-length heat treatment guards against bending bit in heavy-duty applications.
3. Precision ground central point with optimized design for faster cutting performance.
4. Double cutting spurs scribe the outside of the hole reducing breakout.
5. Chisel edge design is more positively angled and digs into the wood.
6. Quick-change shank reduces slipping in standard chucks and is compatible with all 1/4" quick-change chucks and Extension, including impact drills.
7. Designed to perform fast, clean cuts, will bore all types of timber and are equally efficient when drilling with or against the grain.
8. Hang hole allows for bit storage & wire pulling.
9.Titanium Coating for high corrosion resistance and low friction.
