• Model NO.：3115
• Carbide Type：Virgin Yg9
• Steel Shaft Type：40cr
• Flute Type：L
• Cutting Head：Triangle
• Marking：Stamped Marking
• Surface Treatment：Shot-Peened
• Shank Type：Cylindrical
• Welding Type：AVS (Automatic Vacuum Soldering)
• Certificate：Pgm
• Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
• Specification：3mm to 25mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：4800000PCS,Year

Basic Info.

Model NO. 3115 Carbide Type Virgin Yg9 Steel Shaft Type 40cr Flute Type L Cutting Head Triangle Marking Stamped Marking Surface Treatment Shot-Peened Shank Type Cylindrical Welding Type AVS (Automatic Vacuum Soldering) Certificate Pgm Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/Year

Product Description

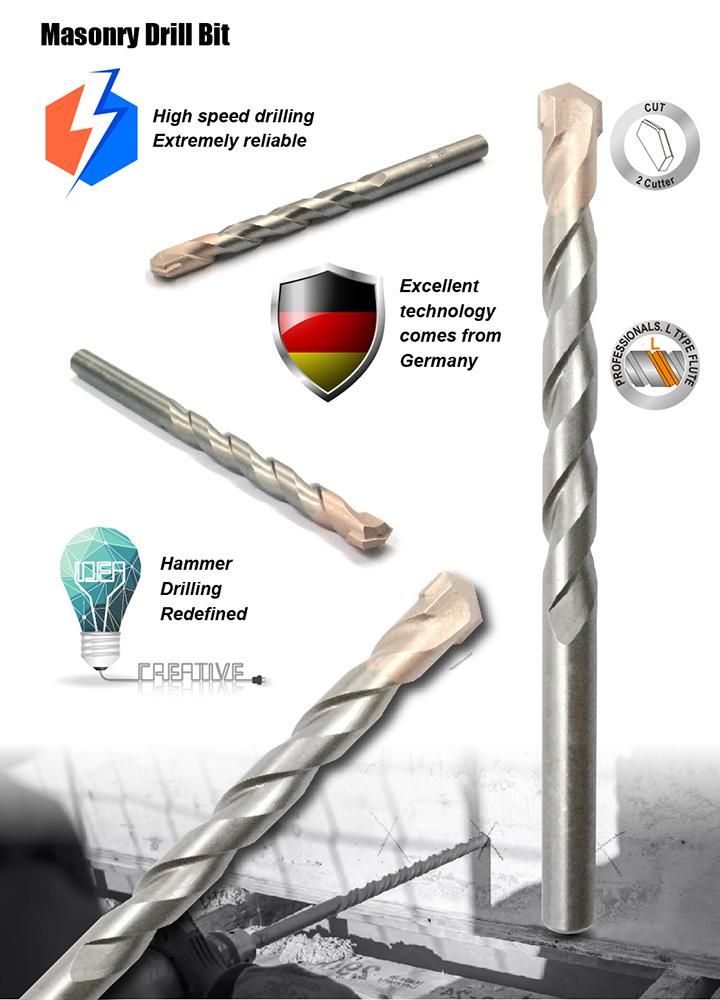

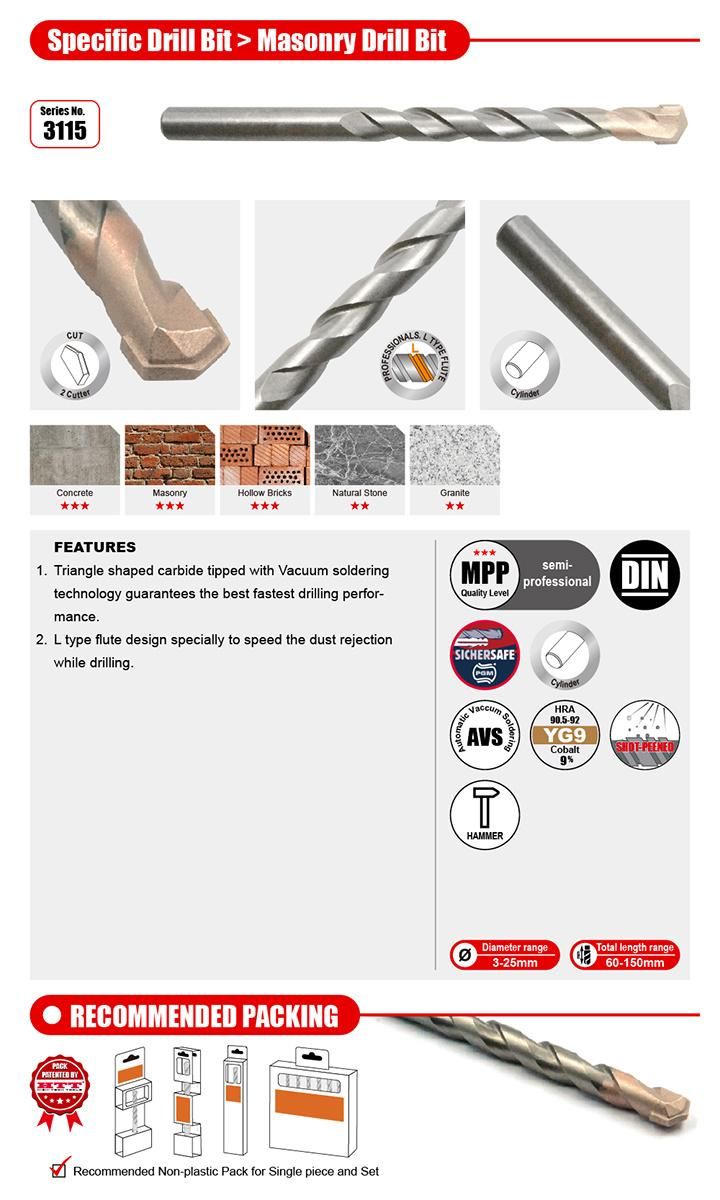

*PGM Certificated Premium Quality Concrete Drill Bit Cylindrical shank for drilling concrete brick block cement.

*Virgin YG9 carbide tip to be with extra high wear-resistance for concrete and masonry drilling work

*L type of flute FASTER design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.

*PGM certificated quality and standard sizes to meet the industrial application demands.




*Other special sizes are also available on the customers' special requests.
* Diameter 14mm to 22mm with the reduced 10mm diameter shank.
* Diameter 25mm with the reduced 12.7mm diameter shank.

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
3115.030060	3	30	60
3115.030070	3	35	70
3115.030085	3	45	85
3115.040075	4	35	75
3115.040085	4	45	85
3115.040090	4	50	90
3115.040150	4	110	150
3115.050085	5	40	85
3115.050090	5	45	90
3115.050095	5	50	95
3115.050100	5	60	100
3115.050150	5	110	150
3115.050250	5	200	250
3115.050300	5	250	300
3115.050400	5	260	400
3115.050500	5	360	500
3115.055095	5.5	50	95
3115.055100	5.5	60	100
3115.055150	5.5	110	150
3115.060100	6	60	100
3115.060150	6	110	150
3115.060200	6	130	200
3115.060260	6	190	260
3115.060300	6	230	300
3115.060400	6	340	400
3115.060600	6	460	600
3115.065100	6.5	60	100
3115.065150	6.5	110	150
3115.065200	6.5	130	200
3115.065260	6.5	190	260
3115.065300	6.5	230	300
3115.065400	6.5	340	400
3115.070100	7	60	100
3115.070120	7	80	120
3115.070150	7	110	150
3115.070300	7	230	300
3115.070400	7	340	400
3115.070500	7	360	500
3115.080120	8	80	120
3115.080150	8	110	150
3115.080200	8	130	200
3115.080260	8	190	260
3115.080300	8	230	300
3115.080400	8	340	400
3115.080600	8	460	600
3115.090120	9	80	120
3115.090150	9	110	150
3115.100120	10	80	120
3115.100150	10	110	150
3115.100200	10	135	200
3115.100260	10	190	260
3115.100300	10	230	300
3115.100400	10	340	400
3115.100600	10	460	600
3115.120130	12	80	130
3115.120150	12	90	150
3115.120200	12	150	200
3115.120260	12	150	260
3115.120300	12	230	300
3115.120400	12	340	400
3115.120600	12	460	600
3115.121000	12	900	1000
3115.130150	13	90	150
3115.130200	13	150	200
3115.130300	13	230	300
3115.140150	14	90	150
3115.140200	14	135	200
3115.140260	14	200	260
3115.140300	14	230	300
3115.140400	14	340	400
3115.140600	14	460	600
3115.160150	16	90	150
3115.160200	16	135	200
3115.160250	16	200	260
3115.160300	16	230	300
3115.160400	16	340	400
3115.160600	16	460	600
3115.180160	18	100	160
3115.180200	18	135	200
3115.180300	18	230	300
3115.180400	18	340	400
3115.180600	18	460	600
3115.200160	20	100	160
3115.200200	20	135	200
3115.200260	20	200	260
3115.200300	20	230	300
3115.200400	20	340	400
3115.200600	20	460	600
3115.220160	22	100	160
3115.220200	22	135	200
3115.220300	22	230	300
3115.220400	22	340	400
3115.250160	25	100	160
3115.250200	25	135	200
3115.250300	25	230	300
3115.250400	25	340	400
