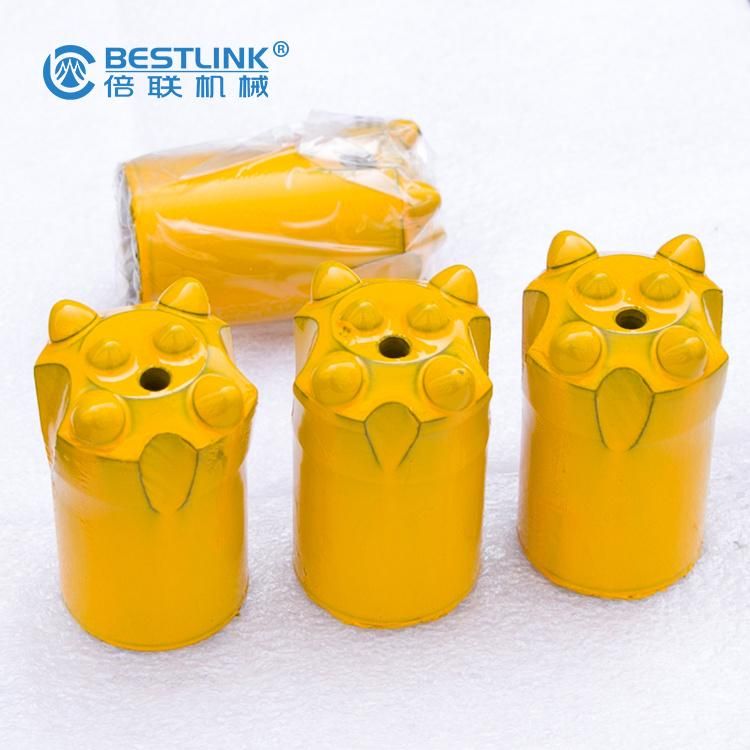

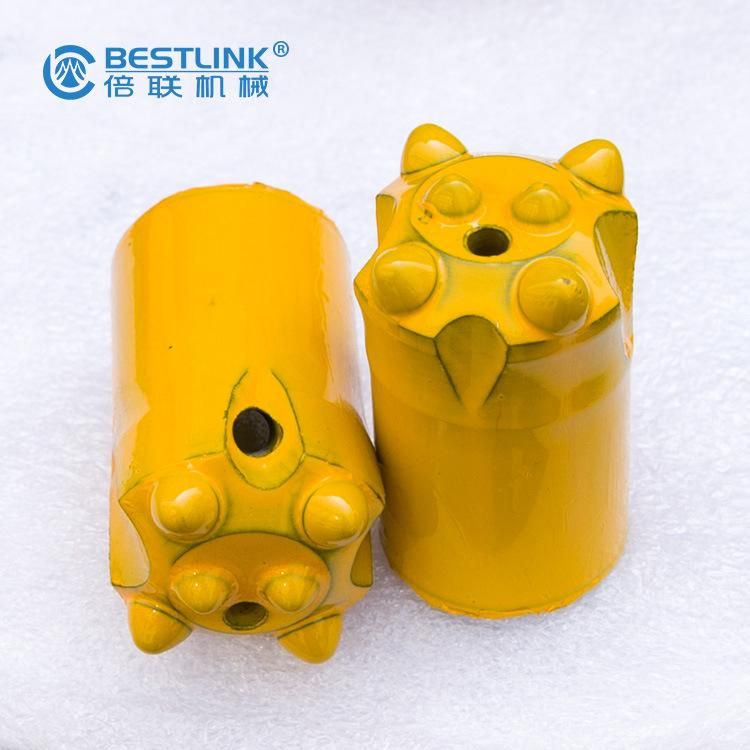

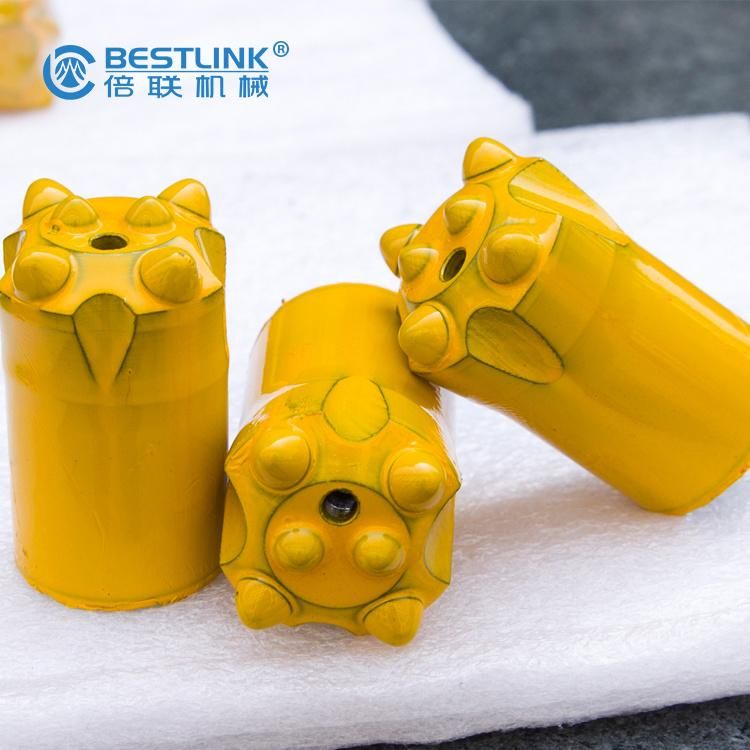

Taper Button Bit China Supplier 34mm Rock Drill Button Bit for Hydraulic Rock Rig
Xiamen Bestlink Factory Co., Ltd.- Customized：Customized
- Standard：API
- Length：Taper-length
- Type：Rock Drill Bit
- Material：Tungsten Carbide
- Usage：Ore Mining
Base Info
- Model NO.：34mm rock drill button bit
- Condition：New
- Color：Blue
- MOQ：20PCS
- Diameter：34mm
- Height：50mm
- Degree：7
- No of Button：7PCS

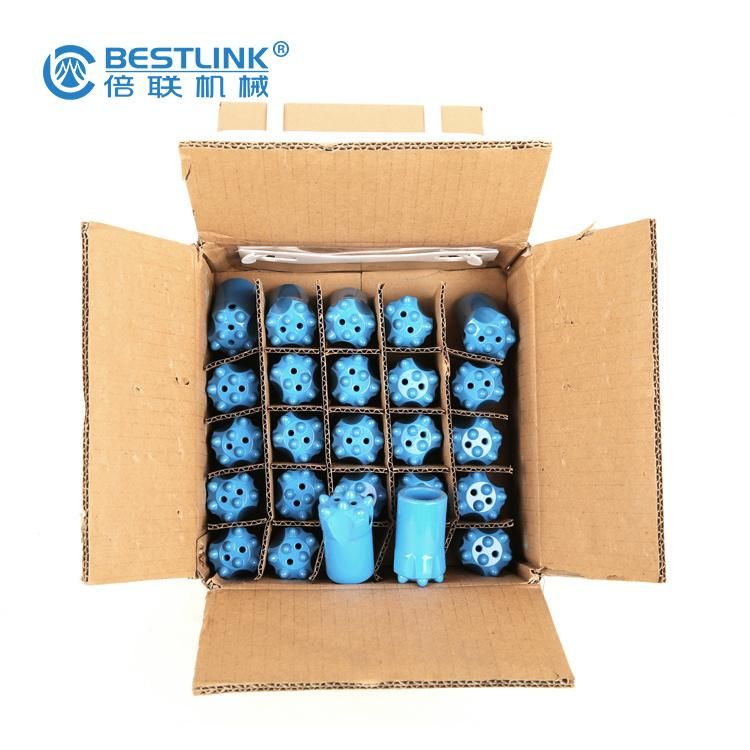

- Transport Package：Wooden
- Trademark：BESTLINK
- Origin：Xiamen
- HS Code：82071990
- Production Capacity：10000 Per Month
Description
Specifications of Thread button bit tapered button bitDiameter NO*Button Dia Gauge Flushing Approx's Part No. Dia Front Gauge Buttons Hole Weight mm inch EA EA Angle Front Side kg 32 1 1/4 2*7 3*8 35 1*6 2*4 0.2 Q532-722 33 1 19/64 2*7 4*7 40 1*5 1*5 0.2 Q633-722 33 1 19/64 2*7 5*7 35 2*4 1*4 0.2 Q733-722 34 1 11/32 2*7 4*7 40 1*5 1*5 0.29 Q634-722 35 1 3/8 2*7 5*7 35 1*5 1*5 0.22 Q735-722 36 1 27/64 1*8 3*9 40 1*6 1*6 0.3 Q436-722 36 1 27/64 2*7 4*7 40 1*6 1*6 0.35 Q636-722 36 1 27/64 2*7 5*8 35 1*6 1*5 0.3 Q736-722 38 1 1/2 1*9 3*9 40 1*6 1*6 0.35 Q438-722 38 1 1/2 2*8 4*8 40 1*6 1*6 0.35 Q638-722 38 1 1/2 2*7 5*8 35 1*6 1*5 0.35 Q738-722 38 1 1/2 2*7 5*9 40 2*4 1*4 0.35 Q738-722A 40 1 37/64 1*9 3*9 40 1*6 1*6 0.35 Q440-722 40 1 37/64 2*7 5*9 35 1*6 1*5 0.35 Q740-722 41 1 5/8 2*7 5*9 35 1*6 1*5 0.35 Q741-722 42 1 21/32 1*9 3*9 30 1*6 1*6 0.35 Q741-722 42 1 5/8 2*7 5*9 35 1*6 1*5 0.35 Q442-722
