• Model NO.：HZ335
• Application：Concrete, Reinforeced Concrete
• Technology：Silver Welding
• Export：Global
• Transport Package：Carton. etc
• Specification：D25-350mm
• Trademark：Huazuan
• Origin：Fujian. China
• HS Code：82075010
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. HZ335 Application Concrete, Reinforeced Concrete Technology Silver Welding Export Global Transport Package Carton. etc Specification D25-350mm Trademark Huazuan Origin Fujian. China HS Code 82075010 Production Capacity 50000PCS/Month

Product Description

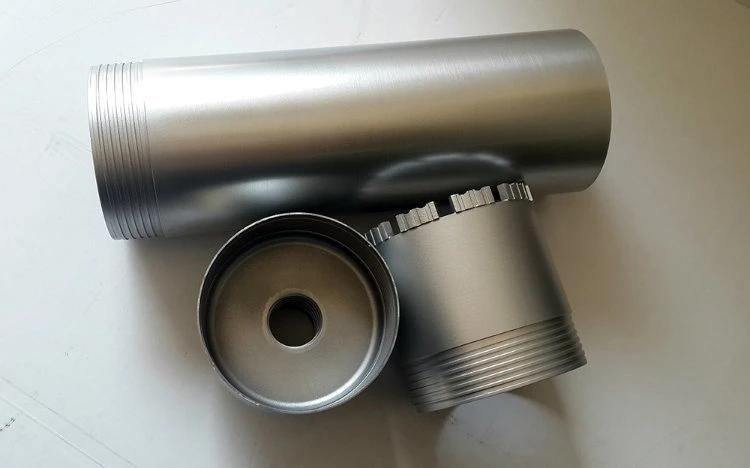

Huazuan 3 parts reinforced concrete diamond core drill bit
Features of core drill:
Sharp segment,
Fast drilling speed long service life, high safety.
Description of diamond core drill bit:

Brand	Huazuan or OEM
Types	Core drill bit
Compose	Segment + core bit matrix
Diameter	1-20"
Working length	120,160,370,450mm,other length is available upon request.
Thread	1 1/4-7;5/8-11,M14,m16,m22,other thread is available upon request.

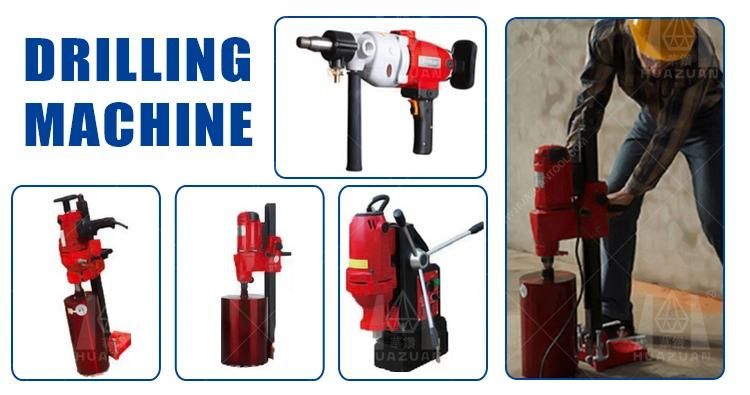

Machine	Drilling machine
Application	Drilling reinforced concrete, natural stones, bricks, blocks & Rock
Quality Control	1. Strict Raw material inspection 2. Professional formula 3. Production process control(PDCA+7S Principle) 4. Do some cutting testing to sure the using function 5. Products pass ISO9001 and SGS inspection
Package	As customers' requirement.
Delivery	7-10 days after receiving the payment.
Certification	ISO9001 and SGS Product quality control.

The specification of diamond core bit

Diameter(mm)	Length(mm)	Seg.Thickness	Seg.Height	Thread cap
27	120/160/370/450	3.8	8/10	5/8"-11
30	120/160/370/450	3.8	8/10	5/8"-11
32	120/160/370/450	3.8	8/10	5/8"-11
36	120/160/370/450	3.8	8/10	5/8"-11
38	120/160/370/450	3.8	8/10	5/8"-11
40	120/160/370/450	3.8	8/10	5/8"-11
44	120/160/370/450	3.8	8/10	5/8"-11
46	120/160/370/450	3.8	8/10	5/8"-11
51	120/160/370/450	3.8	8/10	11/4"-7
56	120/160/370/450	3.8	8/10	11/4"-7
63	120/160/370/450	3.8	8/10	11/4"-7
66	120/160/370/450	3.8	8/10	11/4"-7
71	120/160/370/450	4.0	8/10	11/4"-7
76	120/160/370/450	4.0	8/10	11/4"-7
83	120/160/370/450	4.0	8/10	11/4"-7
89	120/160/370/450	4.0	8/10	11/4"-7
96	120/160/370/450	4.0	8/10	11/4"-7
102	120/160/370/450	4.0	8/10	11/4"-7
108	120/160/370/450	4.0	8/10	11/4"-7
114	120/160/370/450	4.0	8/10	11/4"-7
120	120/160/370/450	4.0	8/10	11/4"-7
127	120/160/370/450	4.5	8/10	11/4"-7
132	120/160/370/450	4.5	8/10	11/4"-7
152	120/160/370/450	4.5	8/10	11/4"-7
159	120/160/370/450	4.5	8/10	11/4"-7
168	120/160/370/450	4.5	8/10	11/4"-7
180	120/160/370/450	4.5	8/10	11/4"-7
200	120/160/370/450	4.5	8/10	11/4"-7
230	120/160/370/450	4.5	8/10	11/4"-7
250	120/160/370/450	4.5	8/10	11/4"-7

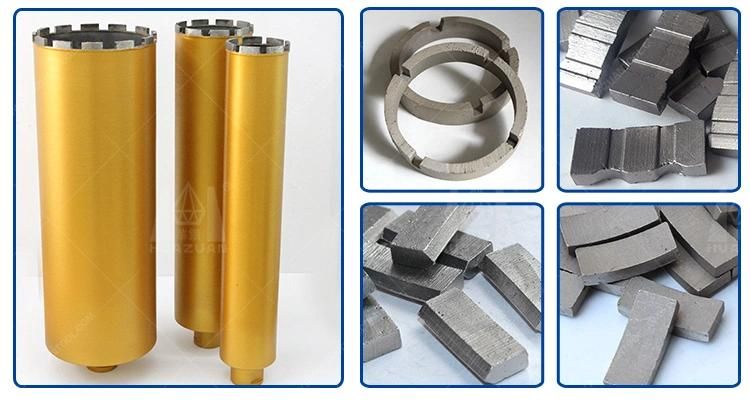

 Different type of diamond segments for core bit:
Diamond Segments

• All our diamond segments have well designed bond systems combined with high concentrations of top quality synthetic diamonds to provide trouble-free drilling through a variety of applications
• Segments type:1)crown type; 2) turbo type; 3)roof type 4)straight type for you choose.

Steel Barrel

• All our barrels are made using top quality steel and are guaranteed to run true

For diameters 10mm to 38mm we use high quality 10mm high quality crown (ring) diamond segments - This helps for an easy start-up when hand held drilling.For diameters 40mm to 500mm we use high quality 10mm high diamond segments with castellated tips to insure an easy start-up and fast opening of the segment.Usually customers will choosing the thread of 1-1/4-7.

Application of reinforced concrete diamond core bit

  Huazuan diamond tools Introduction:
