• Model NO.：2337
• Carbide Type：Virgin Yg9
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Triple 130degrees
• Flute Type：W
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Pgm, Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 4mm to 32mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：4800000,Year

Basic Info.

Model NO. 2337 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Triple 130degrees Flute Type W Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000/Year

Product Description

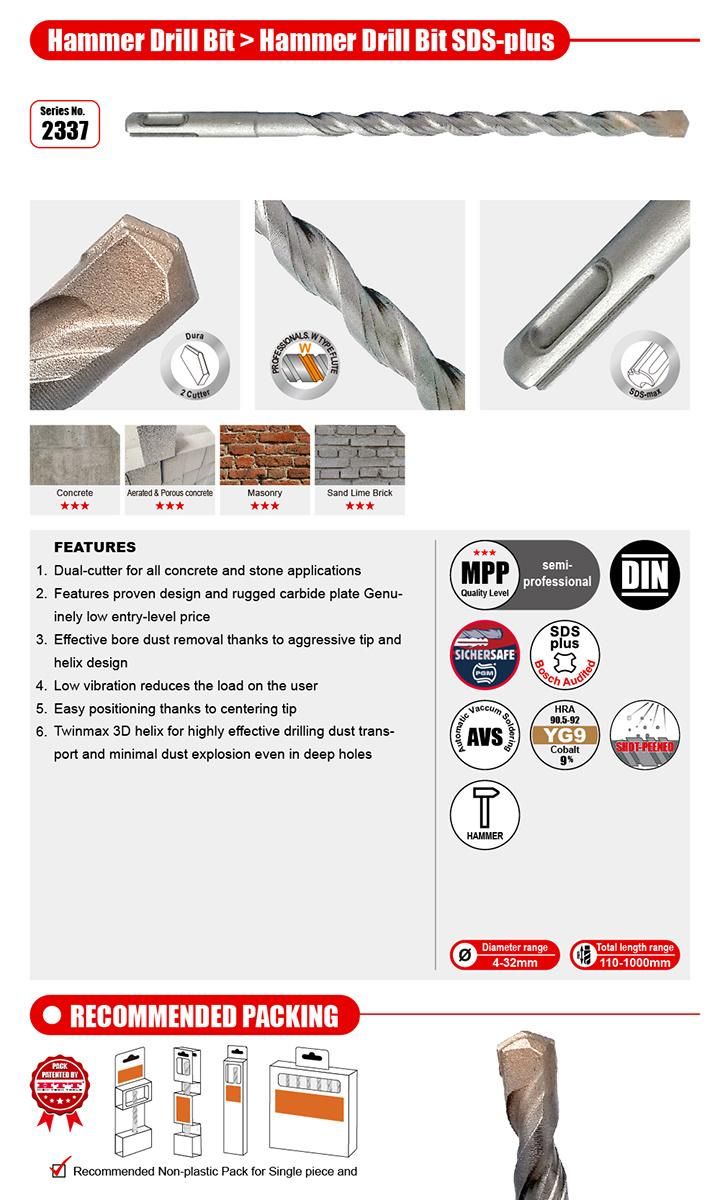

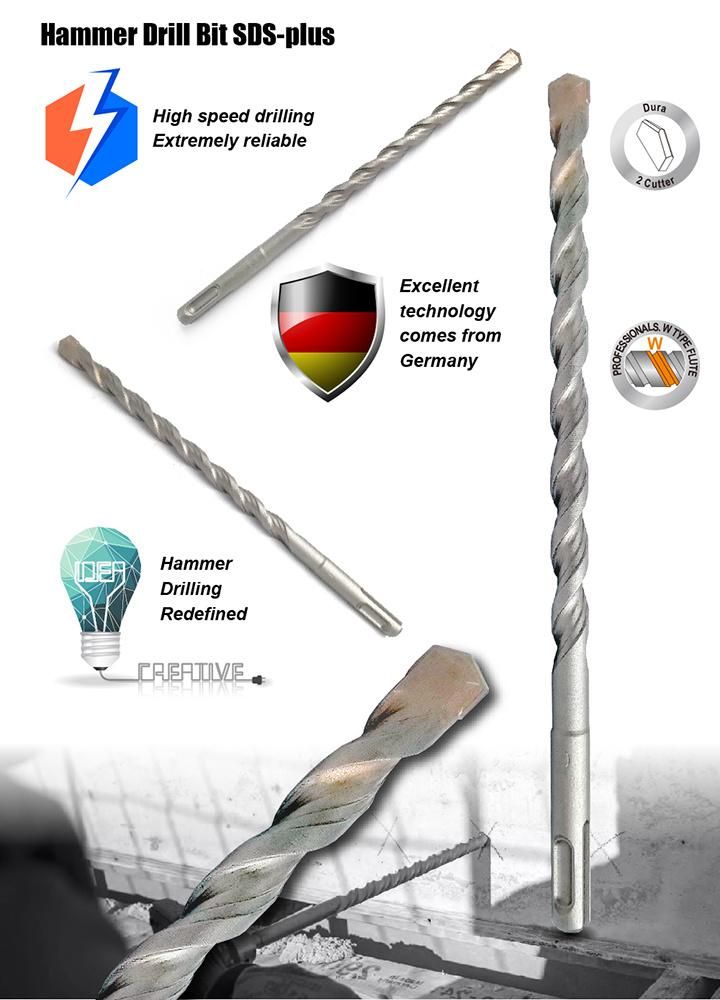

*Hammer Drill SDS plus for Concrete Stone Drilling, PGM certificated, Manufactured by HTT,  2 Cutter carbide tip made of YG9 formulation.

* Carbide tips are specially designed with high durability.

* W flute 3DMAX with multi step design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.

* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.




*Available sizes for Choices( The special sizes are also available upon the customers' special request.)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
2337.040110	4	60	110
2337.050110	5	60	110
2337.055110	5.5	60	110
2337.060110	6	60	110
2337.065110	6.5	60	110
2337.070110	7	60	110
2337.080110	8	60	110
2337.090110	9	60	110
2337.100110	10	60	110
2337.110110	11	60	110
2337.040160	4	110	160
2337.050160	5	110	160
2337.055160	5.5	110	160
2337.060160	6	110	160
2337.065160	6.5	110	160
2337.070160	7	110	160
2337.080160	8	110	160
2337.090160	9	110	160
2337.100160	10	110	160
2337.110160	11	110	160
2337.120160	12	110	160
2337.130160	13	110	160
2337.140160	14	110	160
2337.150160	15	110	160
2337.160160	16	110	160
2337.180160	18	110	160
2337.190160	19	110	160
2337.200160	20	110	160
2337.220160	22	110	160
2337.240160	24	110	160
2337.250160	25	110	160
2337.260160	26	110	160
2337.280160	28	110	160
2337.300160	30	110	160
2337.320160	32	110	160
2337.040180	4	130	180
2337.050180	5	130	180
2337.055180	5.5	130	180
2337.060180	6	130	180
2337.065180	6.5	130	180
2337.080180	8	130	180
2337.100180	10	130	180
2337.050210	5	160	210
2337.055210	5.5	160	210
2337.060210	6	160	210
2337.065210	6.5	160	210
2337.070210	7	160	210
2337.080210	8	160	210
2337.090210	9	160	210
2337.100210	10	160	210
2337.110210	11	160	210
2337.120210	12	160	210
2337.130210	13	160	210
2337.140210	14	160	210
2337.150210	15	160	210
2337.160210	16	160	210
2337.180210	18	160	210
2337.190210	19	160	210
2337.200210	20	160	210
2337.220210	22	160	210
2337.240210	24	160	210
2337.250210	25	160	210
2337.260210	26	160	210
2337.280210	28	160	210
2337.300210	30	160	210
2337.320210	32	160	210
2337.050260	5	210	260
2337.055260	5.5	210	260
2337.060260	6	210	260
2337.065260	6.5	210	260
2337.070260	7	210	260
2337.080260	8	210	260
2337.090260	9	210	260
2337.100260	10	210	260
2337.110260	11	210	260
2337.120260	12	210	260
2337.130260	13	210	260
2337.140260	14	210	260
2337.150260	15	210	260
2337.160260	16	210	260
2337.180260	18	210	260
2337.190260	19	210	260
2337.200260	20	210	260
2337.220260	22	210	260
2337.240260	24	210	260
2337.250260	25	210	260
2337.260260	26	210	260
2337.280260	28	210	260
2337.300260	30	210	260
2337.320260	32	210	260
2337.050310	5	260	310
2337.055310	5.5	260	310
2337.060310	6	260	310
2337.065310	6.5	260	310
2337.070310	7	260	310
2337.080310	8	260	310
2337.090310	9	260	310
2337.100310	10	260	310
2337.110310	11	260	310
2337.120310	12	260	310
2337.130310	13	260	310
2337.140310	14	260	310
2337.150310	15	260	310
2337.160310	16	260	310
2337.180310	18	260	310
2337.190310	19	260	310
2337.200310	20	260	310
2337.220310	22	260	310
2337.240310	24	260	310
2337.250310	25	260	310
2337.260310	26	260	310
2337.280310	28	260	310
2337.300310	30	260	310
2337.320310	32	260	310
2337.050350	5	300	350
2337.055350	5.5	300	350
2337.060350	6	300	350
2337.065350	6.5	300	350
2337.070350	7	300	350
2337.080350	8	300	350
2337.090350	9	300	350
2337.100350	10	300	350
2337.110350	11	300	350
2337.120350	12	300	350
2337.130350	13	300	350
2337.140350	14	300	350
2337.150350	15	300	350
2337.160350	16	300	350
2337.180350	18	300	350
2337.190350	19	300	350
2337.200350	20	300	350
2337.220350	22	300	350
2337.240350	24	300	350
2337.250350	25	300	350
2337.260350	26	300	350
2337.280350	28	300	350
2337.300350	30	300	350
2337.320350	32	300	350
2337.050410	5	360	410
2337.055410	5.5	360	410
2337.060410	6	360	410
2337.065410	6.5	360	410
2337.070410	7	360	410
2337.080410	8	360	410
2337.090410	9	360	410
2337.100410	10	360	410
2337.110410	11	360	410
2337.120410	12	360	410
2337.130410	13	360	410
2337.140410	14	360	410
2337.150410	15	360	410
2337.160410	16	360	410
2337.180410	18	360	410
2337.190410	19	360	410
2337.200410	20	360	410
2337.220410	22	360	410
2337.240410	24	360	410
2337.250410	25	360	410
2337.260410	26	360	410
2337.280410	28	360	410
2337.300410	30	360	410
2337.320410	32	360	410
2337.050460	5	410	460
2337.055460	5.5	410	460
2337.060460	6	410	460
2337.065460	6.5	410	460
2337.070460	7	410	460
2337.080460	8	410	460
2337.090460	9	410	460
2337.100460	10	410	460
2337.110460	11	410	460
2337.120450	12	400	450
2337.130450	13	400	450
2337.140450	14	400	450
2337.150450	15	400	450
2337.160450	16	400	450
2337.180450	18	400	450
2337.190450	19	400	450
2337.200450	20	400	450
2337.220450	22	400	450
2337.240450	24	400	450
2337.250450	25	400	450
2337.260450	26	400	450
2337.280450	28	400	450
2337.300450	30	400	450
2337.320450	32	400	450
2337.060550	6	500	550
2337.065550	6.5	500	550
2337.070550	7	500	550
2337.080550	8	500	550
2337.090550	9	500	550
2337.100550	10	500	550
2337.110550	11	500	550
2337.120550	12	500	550
2337.130550	13	500	550
2337.140550	14	500	550
2337.150550	15	500	550
2337.160550	16	500	550
2337.180550	18	500	550
2337.190550	19	500	550
2337.200550	20	500	550
2337.220550	22	500	550
2337.240550	24	500	550
2337.250550	25	500	550
2337.260550	26	500	550
2337.280550	28	500	550
2337.300550	30	500	550
2337.320550	32	500	550
2337.060600	6	550	600
2337.065600	6.5	550	600
2337.070600	7	550	600
2337.080600	8	550	600
2337.090600	9	550	600
2337.100600	10	550	600
2337.110600	11	550	600
2337.120600	12	550	600
2337.130600	13	550	600
2337.140600	14	550	600
2337.150600	15	550	600
2337.160600	16	550	600
2337.180600	18	550	600
2337.190600	19	550	600
2337.200600	20	550	600
2337.220600	22	550	600
2337.240600	24	550	600
2337.250600	25	550	600
2337.260600	26	550	600
2337.280600	28	550	600
2337.300600	30	550	600
2337.320600		550	600
2337.080800	8	750	800
2337.090800	9	750	800
2337.100800	10	750	800
2337.110800	11	750	800
2337.120800	12	750	800
2337.130800	13	750	800
2337.140800	14	750	800
2337.150800	15	750	800
2337.160800	16	750	800
2337.180800	18	750	800
2337.190800	19	750	800
2337.200800	20	750	800
2337.220800	22	750	800
2337.240800	24	750	800
2337.250800	25	750	800
2337.260800	26	750	800
2337.280800	28	750	800
2337.300800	30	750	800
2337.320800	32	750	800
2337.101000	10	950	1000
2337.111000	11	950	1000
2337.121000	12	950	1000
2337.131000	13	950	1000
2337.141000	14	950	1000
2337.151000	15	950	1000
2337.161000	16	950	1000
2337.181000	18	950	1000
2337.191000	19	950	1000
2337.201000	20	950	1000
2337.221000	22	950	1000
2337.241000	24	950	1000
2337.251000	25	950	1000
2337.261000	26	950	1000
2337.281000	28	950	1000
2337.301000	30	950	1000
2337.321000	32	950	1000
