• Model NO.：yt28
• Name：Air Leg Rock Drill
• Color：Blue
• Drilling Depth：0.5-6m
• Drilling Diameter：28-60mm
• Piston Stroke：60mm
• Air Pressure：0.4-0.63MPa
• Air Duct Diameter：25mm
• Water Duct Diameter：13mm
• Weight：28kg
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：661*247*195mm
• Trademark：yugong
• Origin：China
• HS Code：8401200000
• Production Capacity：60sets,Week

Basic Info.

Model NO. yt28 Name Air Leg Rock Drill Color Blue Drilling Depth 0.5-6m Drilling Diameter 28-60mm Piston Stroke 60mm Air Pressure 0.4-0.63MPa Air Duct Diameter 25mm Water Duct Diameter 13mm Weight 28kg Warranty One Year Transport Package Wooden Case Specification 661*247*195mm Trademark yugong Origin China HS Code 8401200000 Production Capacity 60sets/Week

Product Description

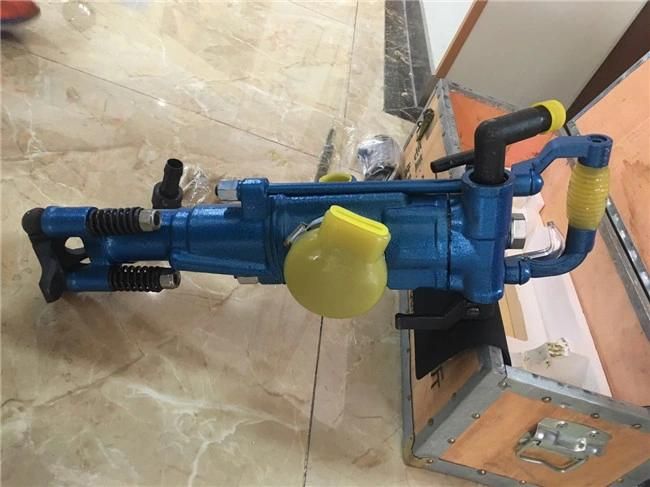

Hand-Held Pneumatic Small Air Leg Rock Drill for Sale

Product Description

Rock drill air leg rock drill is a new type air compressor rock drill with very high efficiency. It was mainly used in quarry mining and mine exploration, tunnel excavation, various of drilling blasting holes etc. And that will be certainly needed in mining, water conservancy, construction engineering, energy and transportation, geological working industries. That will be suited in medium hard and hard degree rock to drill horizontal, inclined and vertical blast hole.

Main Features

1.Blast hole diameter is about 34m-42m, drill hole depth is 6m.

2.This kind of rock drill is a new kind of high efficiency air leg rock drill machinery.

3.Our rock drill is suitable for drilling and blasting under various of rocks and and direction angles.

4.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defend project facility.

5.First-class level Drilling Tools, suitable for sites without power or air pressure equipment, and rock drill has wide adaptability for high mountains and plains, extreme temperature (±40ºC).

Technical Parameter

Model	YT28
Drilling diameter(mm)	28-60
Drilling depth(m)	0.5-6
Piston stroke(mm)	80/60
Impact frequency(Hz)	37
Air cylinder diameter(mm)	80
Racing speed(r/min)	300
Air pressure(Mpa)	0.2-0.3
Air consumption(Hz)	37(Max)
Oil holder(mm)	200
Length of air leg(mm)	1800

Company Information

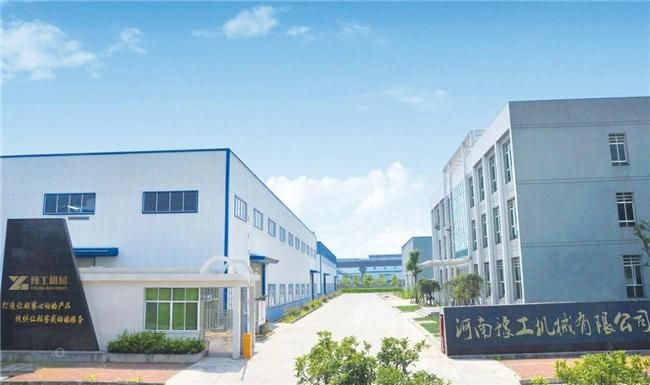

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!

Packaging & Shipping

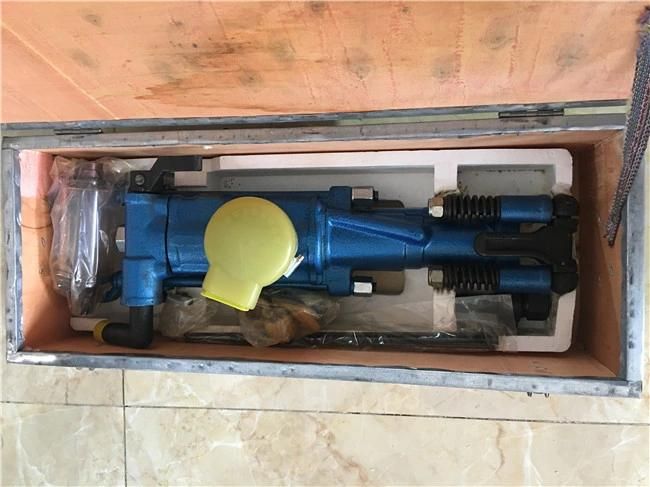

1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
