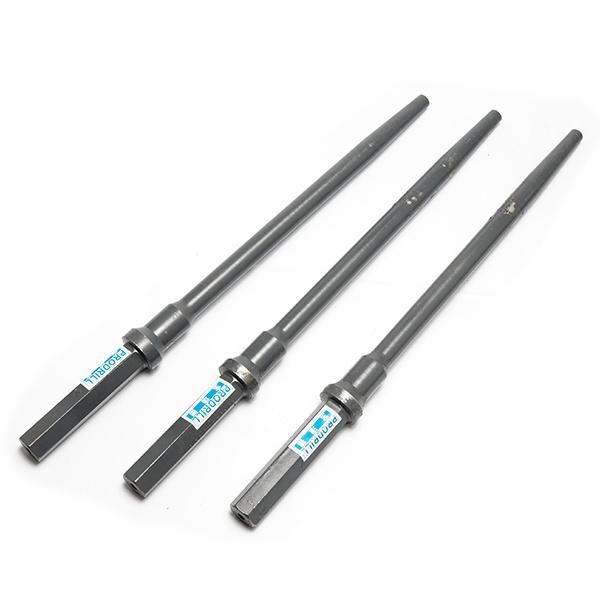

Hex 22 * Shank Length 108mm Integral Drill Rod

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Length：1220mm
  • Usage：for Hand Held Small Hole Drilling
  • Material：Stainless Steel, High Manganese Steel
  • Brand Name：Prodrill
  • Model Number：Steel Tapered Rod
  • Machine Type：Drilling Tool

Base Info

  • Model NO.：integral drill rod
  • Processing Type：Forging
  • Use：Ore Mining, for Small Hole Drilling Tools
  • Body Length：400mm-8000mm
  • Shank：22*108mm, 19*108mm, 25*159mm
  • Transport Package：Wood Package
  • Specification：CE, SGS, ISO9001
  • Trademark：PRODRILL
  • Origin：China
  • HS Code：82071990
  • Production Capacity：10000pec,Months

Description

Hex22mm*108mm Hex25mm*159mm Hex19mm*108mmIntegral drill steelBit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm400mm to 4800mmPlug hole rodsChisel bit diameter: 17mm, 20mm, 22mm150mm to 710mmHex 22 * Shank Length 108mm Integral Drill RodLengthHead Diameter Mmfoot/inchMmInchHex19 × 108mmWe can produce as your request of carbide size, different length of drill rods.400 ~ 4,0001' 4" ~ 13' 1"23 ~ 3527/32 ~ 1 3/8Hex22 × 108mm400 ~ 9,6001' 4" ~ 31' 6"26 ~ 411 1/32 ~ 1 39/64Hex25 × 108mm600 ~ 6,4001' 11 5/8" ~ 21'33 ~ 451 19/64 ~ 1 25/32Hex25 ×159mm800 ~ 6,4002' 7" ~ 21'35 ~ 421 3/8 ~ 1 21/32
