Supreme Quality HSS M2 Twist Drill Bit DIN338 Rn DIN6.35e Shank for Metal Steel Stainless Steel Alloyed Unalloyed Non-Ferrous Metal Board Sheet Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：54mm to 151mm
- Type：Twist Drill Bit
- Material：High Speed Steel
- Usage：Metal Drilling
Base Info
- Model NO.：997
- Steel Type：HSS M2
- Flute Type：N
- Rotation Direction：Right Hand
- Surface Treatment：Bright Finished
- Tip Point：118degrees Split Point
- Marking：Laser Marking
- Standard Type：DIN338rn
- Shank Type：DIN6.35e
- Transport Package：Blister, Skin, PVC Bag, Color Paper Hanger, Paper
- Specification：0.5mm to 13mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 997 Steel Type HSS M2 Flute Type N Rotation Direction Right Hand Surface Treatment Bright Finished Tip Point 118degrees Split Point Marking Laser Marking Standard Type DIN338rn Shank Type DIN6.35e Transport Package Blister, Skin, PVC Bag, Color Paper Hanger, Paper Specification 0.5mm to 13mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

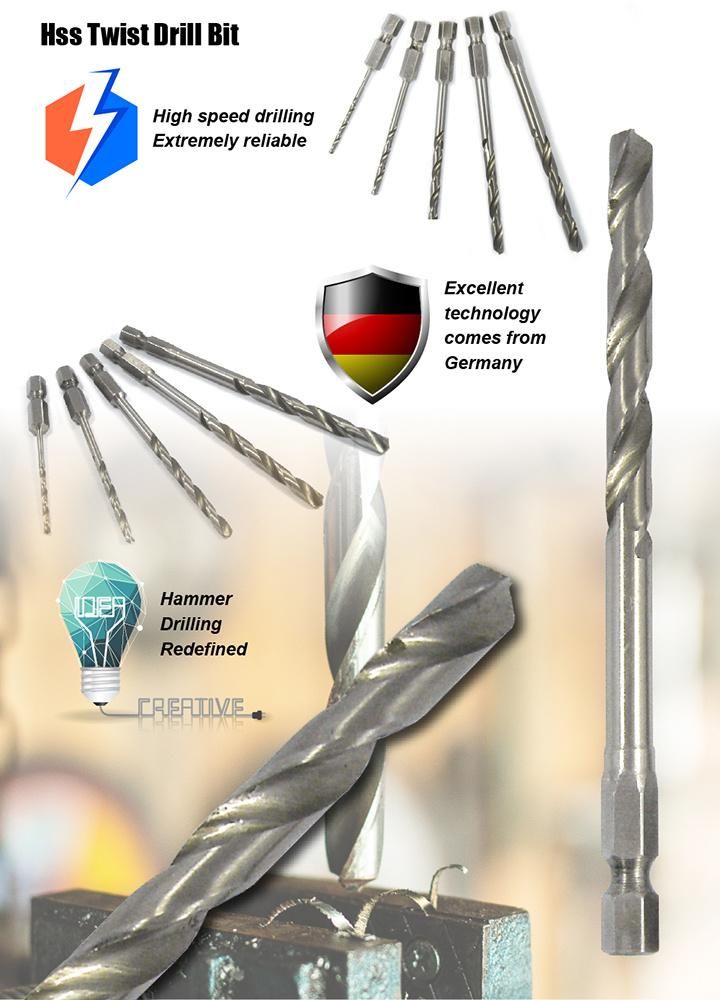

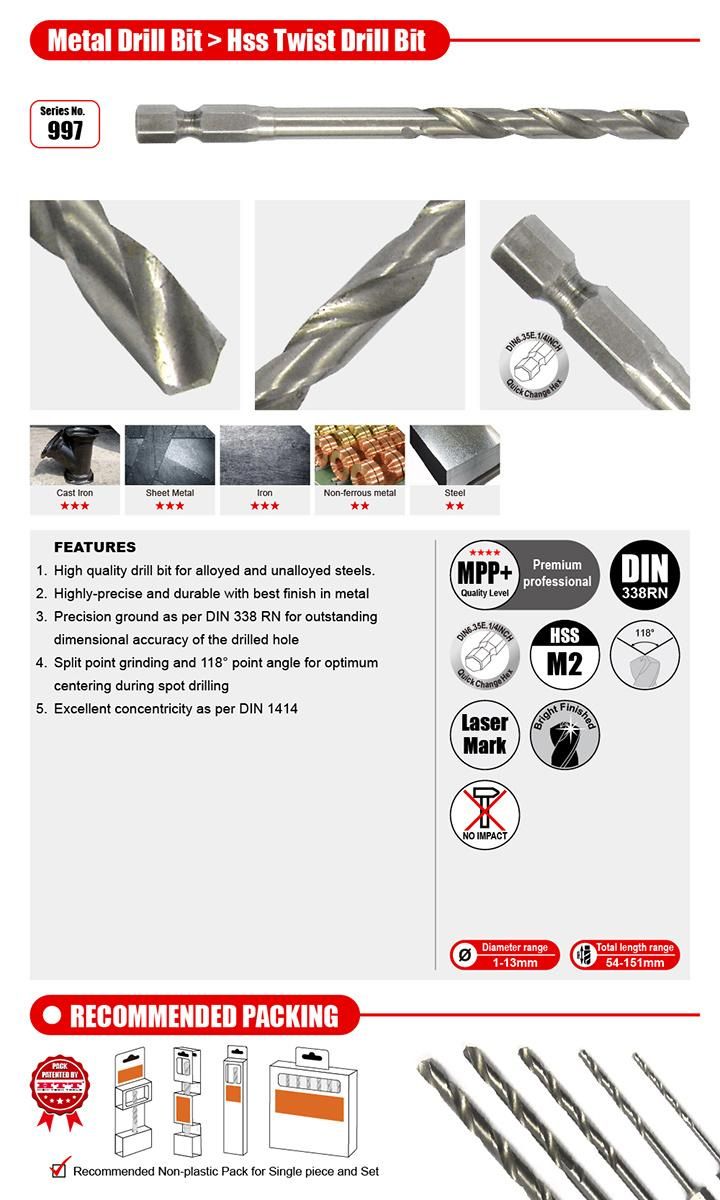

*HSS M2 Twist Drill Bit, Fully Ground, Bright finish, DIN338RN ,DIN6.35E Shank in 1PC structure for drilling holes in various metal sheets, stainless steel, inox sheet, alloyed steel, unalloyed steel, non-ferrous metal, stainless steel sheet, fiberboard, wood board, etc.* Strict and special hardening craftsmanship to realize the M2 HSS durability and sharpness maintaining for long time.
* Fully ground does the precise size controlling under DIN338 standard and run-out concentricity under DIN1414 for H8 correctness touching.
* DIN6.35E Hex shank to do quick change in the quick change connectors and drill chucks without slipping
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 997.338010 | 1 | 12 | 54 |
| 997.338015 | 1.5 | 18 | 60 |
| 997.338020 | 2 | 24 | 60 |
| 997.338025 | 2.5 | 30 | 60 |
| 997.338030 | 3 | 33 | 61 |
| 997.338032 | 3.2 | 36 | 65 |
| 997.338035 | 3.5 | 39 | 70 |
| 997.338040 | 4 | 43 | 75 |
| 997.338042 | 4.2 | 43 | 75 |
| 997.338045 | 4.5 | 47 | 80 |
| 997.338050 | 5 | 52 | 86 |
| 997.338052 | 5.2 | 52 | 86 |
| 997.338055 | 5.5 | 57 | 93 |
| 997.338060 | 6 | 57 | 93 |
| 997.338062 | 6.2 | 63 | 101 |
| 997.338065 | 6.5 | 68 | 109 |
| 997.338070 | 7 | 69 | 109 |
| 997.338075 | 7.5 | 75 | 117 |
| 997.338080 | 8 | 75 | 117 |
| 997.338085 | 8.5 | 81 | 125 |
| 997.338090 | 9 | 81 | 125 |
| 997.338095 | 9.5 | 87 | 133 |
| 997.338100 | 10 | 87 | 133 |
| 997.338105 | 10.5 | 94 | 142 |
| 997.338110 | 11 | 94 | 142 |
| 997.338115 | 11.5 | 101 | 151 |
| 997.338120 | 12 | 101 | 151 |
| 997.338125 | 12.5 | 101 | 151 |
| 997.338130 | 13 | 101 | 151 |
