• Model NO.：HX PDC
• History：26 Years
• Address：Shangqiu ,China
• Transport Package：Carton
• Specification：A
• Trademark：HX
• Origin：Henan China
• HS Code：4113960213
• Production Capacity：5000PCS

Basic Info.

Model NO. HX PDC History 26 Years Address Shangqiu ,China Transport Package Carton Specification A Trademark HX Origin Henan China HS Code 4113960213 Production Capacity 5000PCS

Product Description

Introduction

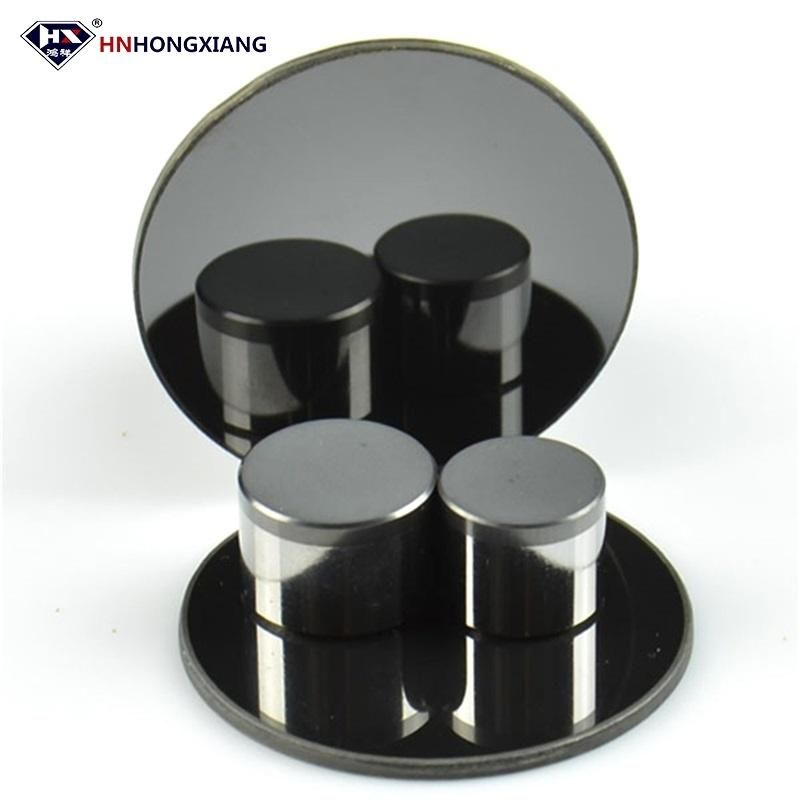

Made of synthetic diamond, kindly used for oil drill bit, high grade cutter, could cutting hard rock, glass, ceramic.


Application and our feature:
1. For oil drilling. Coal drilling. Gas drilling. Stone drilling
2. We can be customized any size according to your requirement
3. We can guarantee our quality
4. Our every PDC cutter must be tested by 800 degree high temperture

Our products have experted to United Kingdom, France, Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many domestic and international exhibitions. Besides, our products have won good satisfaction and recogntion by foreign customers.


All of our business is carried out in full compliance with the ISO9001 Certification. Please contact us if you would like any further information.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Factory Introduction

Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention.

Constant innovation and good faith are our foothold.



Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many



Domestic and international exhibitions. Besides, our product has won good satisfaction and recognition by domestic and foreign customers.
