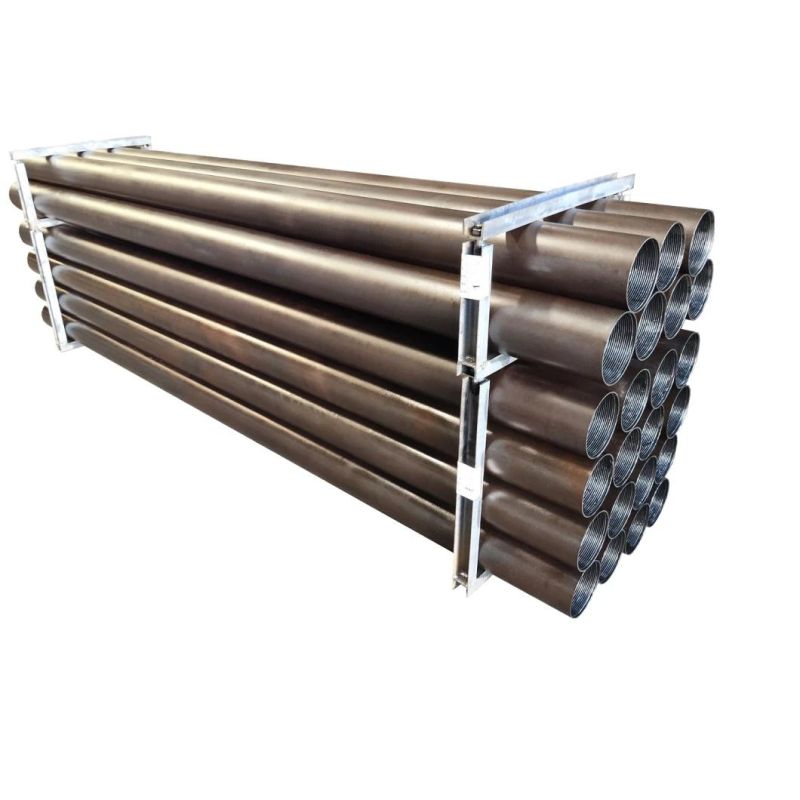

Wireline Core Drilling Rod Pipe 3m

JINSHI DRILLTECH CO., LTD.
  • Standard：RoHS, BS, DIN, JIS, AISI
  • Usage：Coal Mining, Well Drilling
  • Material：Carbon Steel
  • Transport Package：Standard Export Package
  • Trademark：JINSHI
  • Origin：Hebei China

Base Info

  • Model NO.：Drilling Rod 3m
  • Production Capacity：100000 Pieces,Year

Description

Name:Wireline core Drilling RodModel:BQ/NQ/HQ/PQ serices Material:Alloy Steel TubingDimensions:1.5m,  3m length or customizedColor:Black or customizedApplications:Drilling ToolsStandard:ISO-9001Application:Mining or geological DrillingWireline Core Drilling Rod Pipe 3mthe wireline drill rods are made of special geological steel pipe with high strength and toughness which is precessed by high-precision CNC lathe and molding tool.the drill rod thread is tested by special thread guage, and the thread part is specially strengthened, the drill rod has consistent concentricity and straightness, and its precision and mechanical properties reach the international advanced level.

C series wireline drill rod standardStandardDesigned hole depth(m)BQ1200NQ1200HQ1200PQ1200SQ600
C Series Wireline Drill Rod Technical SpecificationStandardOD(mm)ID(mm)Wall
Thichness(mm)TPIPin thread length(mm)weight(kg/m)BQ55.7 46.1 4.8 3.0 44.5 6.03NQ70.5 60.3 5.1 3.0 44.5 8.08HQ89.0 77.8 5.6 3.0 44.5 11.52PQ114.3 101.9 6.2 2.5 63.5 16.53SQ139.7 125.5 7.1 2.5 62.8 23.22
