• Model NO.：PFT100
• Shank：Straight Shank
• Size：1,16"-1,2"
• Application：for Right Angle Drilling in Confined Space
• Processing：Fully Ground
• Point Angle：135 Degree Split Point Angle
• Flute Type：Type N Spiral Right Hand
• Surface：Black Oxide
• Transport Package：PVC Pouch,Plastic Box
• Specification：TUV, CE, ISO
• Trademark：Perfect
• Origin：Jiangsu Province, China
• HS Code：8207509000
• Production Capacity：5000PCS, Per Day

Product Name M2 High Speed Steel HSS NAS 965 Type B Threaded Hex Shank Drill BitMaterial HSS  (HSS Cobalt is Available)Process Fully Ground   (Rolled & Polished, Rolled, Milled are Available)Standard

 Stub DIN1897                              (DIN338, Long DIN340, Extra Long DIN1869, DIN345 Taper Shank,

                                                       Blacksmith Reduced Shank 10mm, 13mm are Available)

 Stub Screw Machine Length     (Jobber Length, Long Taper Length, 6 ,12 inch Airctraft Extensoin                                                                         Silver & Deming 1/2" Reduced Shank are Available)

Size Stub, Short, Long length are AvailablePoint Type 135 Degree Split Point  (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)Shank Type

 Threaded Hex Shank    (Straight Shank, Hex Shank, Tri-Flats Shank, Double R Hex Shank,

                                          Reduced Shank, Taper Shank are Available)

Helix Angle Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)Web &Flute Type Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)Surface Finish Black Oxide  (Bright, Amber Color, Titanium, Black & Gold, Black & Bright are Available)Package 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.Features

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.No center punch is needed-the aggressive 135° Quick-Cut points are self-centering and penetrate quickly   with less pressure. Will not "walk" or "wander".

 3.All are manufactured with 1/4-28 UNF threads and 5/16" wrenching flats.
 4.Adapted threaded hex shank drills for use in right-angle drilling heads when operating in confined   spaces
 5.Oxide coating prevents chip building, galling and welding on the workpiece. It is commonly used on low-carbon metals, stainless steel and ferrous metals.

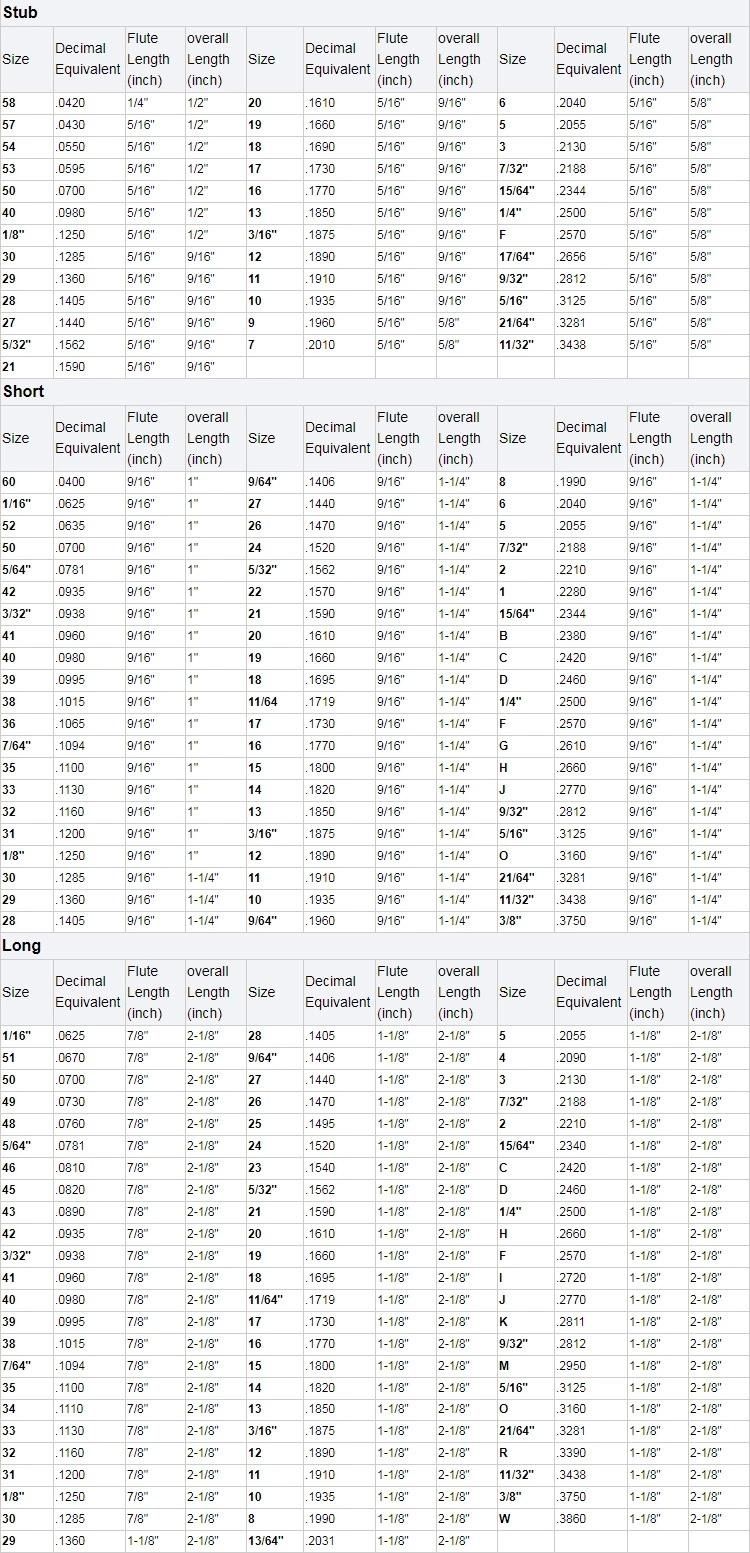

Product sizes
Other specification is also available according to your requirements. (OEM, ODM )
