Carbide Cross Centric Tip 4 Cutters 4 Flutes SDS Plus Hammer Drill Bit for Concrete Block Brick Wall Drilling
Xuzhou Perfect Industry Technology Co., Limited- Customized：Non-Customized
- Type：Core Drill Bit
- Material：40cr Steel with Heat Treatment
- Usage：Masonry Drilling
- Process：Milled Flutes and Welded Tip
- Shank：SDS Plus Shank
Base Info
- Model NO.：PFT076
- Flute Type：S4 Flute
- Surface Finish：Sand Blasted
- Standard：DIN8035 and ANSI
- Tip Material：Tungsten Carbide
- Tip Type：Centric Cross Tip
- Transport Package：Plastic Tube, Hanging Card, PVC Box,Bag
- Specification：TUV, CE, ISO
- Trademark：Perfect
- Origin：Jiangsu Province, China
- HS Code：8205100000
- Production Capacity：5000PCS, Per Day
Description
Milled Flutes and Welded Tip (High Quality Auto Welded Tip is available)
Cross Head Tip 4 Cutters (Single Tip, Centric Tip, X Head are available)
SDS Plus Shank (SDS Max Shank, Spline Shank, Hex Shank and SDS Tapcon Shank are available)
4 Flutes (L Flute, U Flute are available)
4*110mm - 40*1200mm (5/32" * 4" to 1 3/4" * 40")
Sand Blasted
1.Four-cutter head with four-flute technology, for 2X life in concrete with rebar and hard aggregate
2."Turn-angle" head and 4-flute design provide fast dust removal for increased drilling speeds and reduced wear.
3.Centring tip guides drilling from the start for efficient work and exact hole diameters.
4.Accurate anchoring - ideal for drilling anchoring holes, the centering tip provides precise starts
5.The centring tip guides drilling from the start, to prevent wandering, which can falsify the hole diameter.
6.Compatible with all SDS-Plus style chucks.

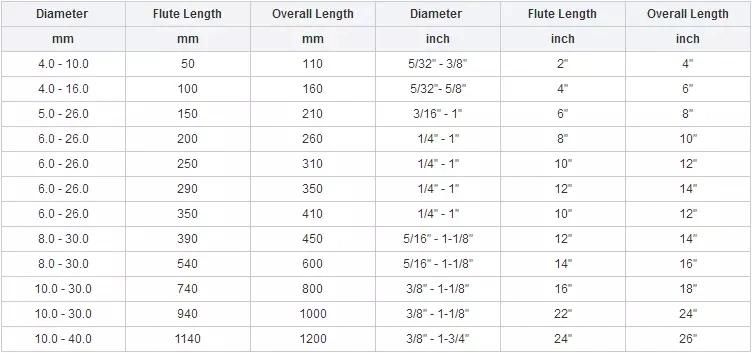

Product Sizes
