SDS Plus Hammer Reinforced Concrete Rebar Drill Bit for Cut Through Rebar of Reinforced Concrete
Xuzhou Perfect Industry Technology Co., Limited- Customized：Non-Customized
- Type：Core Drill Bit
- Material：40cr Steel with Heat Treatment
- Usage：Masonry Drilling
- Process：Milled Flutes and Welded Tip
- Shank：SDS Plus Shank
Base Info
- Model NO.：PFT045
- Flute Type：S4 Flute
- Surface Finish：Sand Blasted
- Standard：DIN8035 and ANSI
- Tip Material：Tungsten Carbide
- Tip Type：Single Type
- Transport Package：Plastic Tube, Hanging Card, PVC Box,Bag
- Specification：TUV, CE, ISO
- Trademark：Perfect
- Origin：Jiangsu Province, China
- HS Code：8207509000
- Production Capacity：5000PCS, Per Day
Description

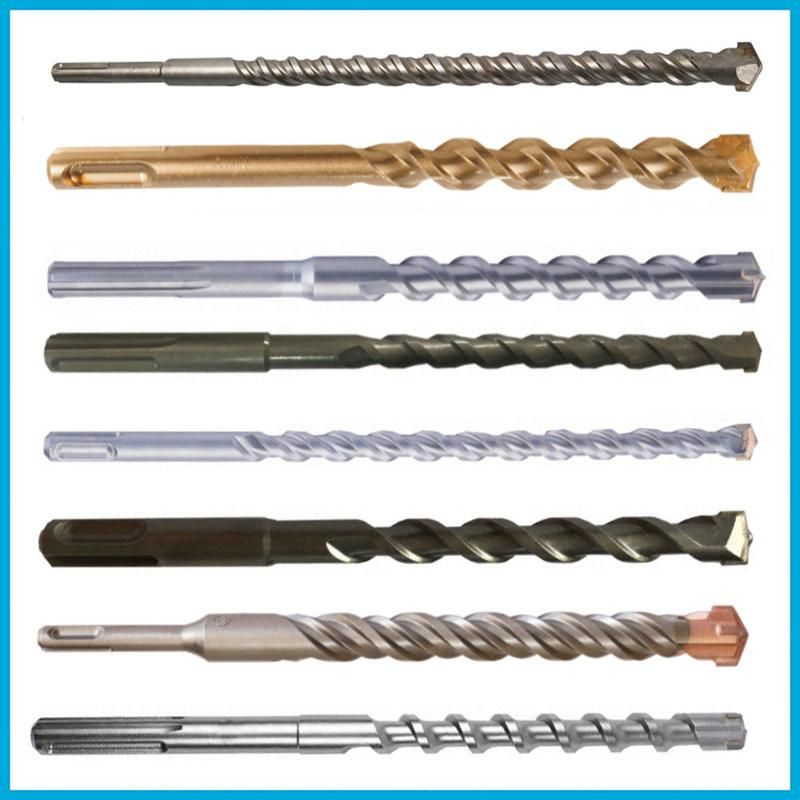

SDS Plus Hammer Reinforced Concrete Rebar Drill Bit
for Cut Through Rebar of Reinforced Concrete
Milled Flutes and Professional Auto-Welded Tip
Turbo Cantering Tip (Centric Tip, Single Tip, Cross Head , X Head are available)
SDS Plus Shank (SDS Max Shank, Spline Shank, Hex Shank and SDS Tapcon Shank are available)
Vortex Flute (S4 Flute, L Flute, U Flute, 4 Flute are available)
1. This drill bit is standardly designed and manufactured for professional users who need precisely drilled holes which ensure a secure fit for fixings every time.
2. Turbo cantering blade inserts with auto vacuum brazing for excellent drilling performance against reinforced concrete, brick Wall, aerated block, etc. Thick carbide tip for extremely robust with long service life.
3. The premium quality steel body with heat treatment features reinforced core strength for durability.
4. Low vibration reduces the load on the users.
5. Drill bit length available in the series of 160, 210, 260, 310 and 460 mm.
6.10mm SDS plus quick release shank suits for hammer drill up to 4kg class.

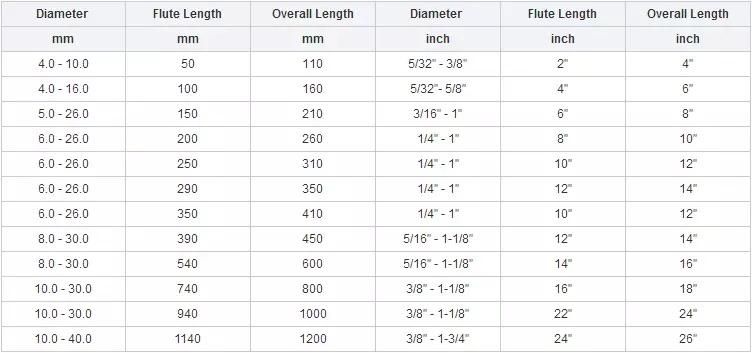

Product Sizes :
