• Model NO.：IADC617
• Video Outgoing-Inspection：Provided
• Brand Name：Speedmade
• Machine Type：Drilling Equipment
• Processing Type：Forging
• Size：17 1,2 Inches Tricone Bit
• Wob(Kn/mm)：0.70~1.20
• Bearing Type：Rubber Sealed Bearing
• Packing：Plywood Case
• Machinery Test：Provided
• Place of Origin：China
• Type：Drill Bit
• Material：High Manganese Steel, 15crni4mo
• Transport Package：Original Package with Wooden Cases
• Specification：24X21X40 cm
• Trademark：speedmade
• Origin：China
• HS Code：82071990
• Production Capacity：100piece,Pieces Per Month


 IADC CODE 116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526  537 547 516 536  535available sizesFrom 2 7/8 to 26"
larger sizes for hole opener bit ,reamer bitadvantagemost favorable price and best qualitybearing typesealed bearing and non-sealed bearing
metal sealed journal bearing
rubber sealed journal bearing
aircooled bearing typeFormation or layerSoft, medium soft, hard, medium hard, very hard formationButton size (extra features)Button bit, saw teeth
1) Y-Conical teeth  2) X-chisel teeth
3)K- wide teeth
4)G- Gauge protectionPackingWooden caseDelivery termsBy sea or by airMarketCanada, USA, Middle east ,Africa, EuropeApplicationPetroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

IADC	WOB (KN/mm)	RPM (r/min)	Applicable Formations
114/116/117	0.3~0.75	180~60	Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.
124/126/127	0.3~0.85	180~60	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
134/135/136/137	0.3~0.95	150~60	Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
214/215/216/217	0.35~0.95	150~60	Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.
227	0.35~0.95	150~50	Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc

Remark: The Max limits of WOB and RPM in above table should not be used at the same time.


IADC	WOB (KN/mm)	RPM (r/min)	Applicable Formations
417/437/  447/415/435	0.35~0.9	150~70	Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, gypsum, salt, soft limestone, etc.
517/527/515	0.35~1.0	140~60	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.
537/547/535	0.45~1.0	120~50	Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.
617/615	0.45~1.1	90~50	Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc
637/635	0.5~1.2	80~40	Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc.

Remark: The Max limits of WOB and RPM in above table should not be used at the same time.


-WHY CHOSE US-

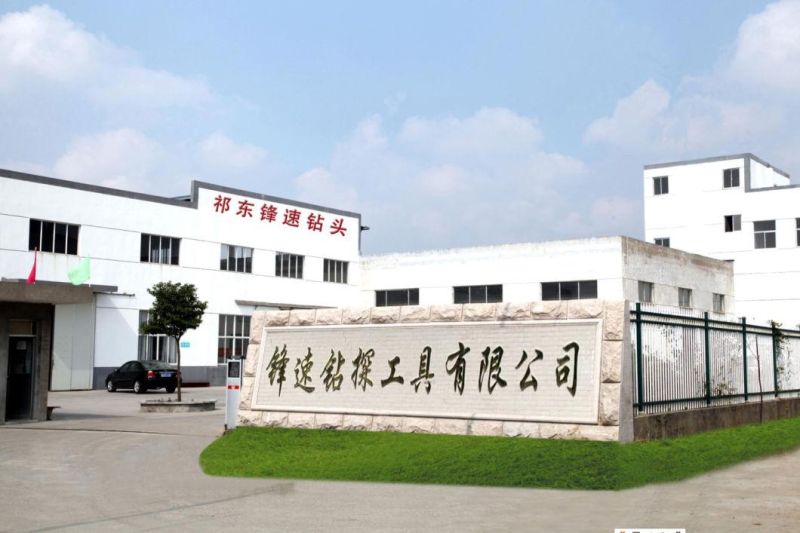

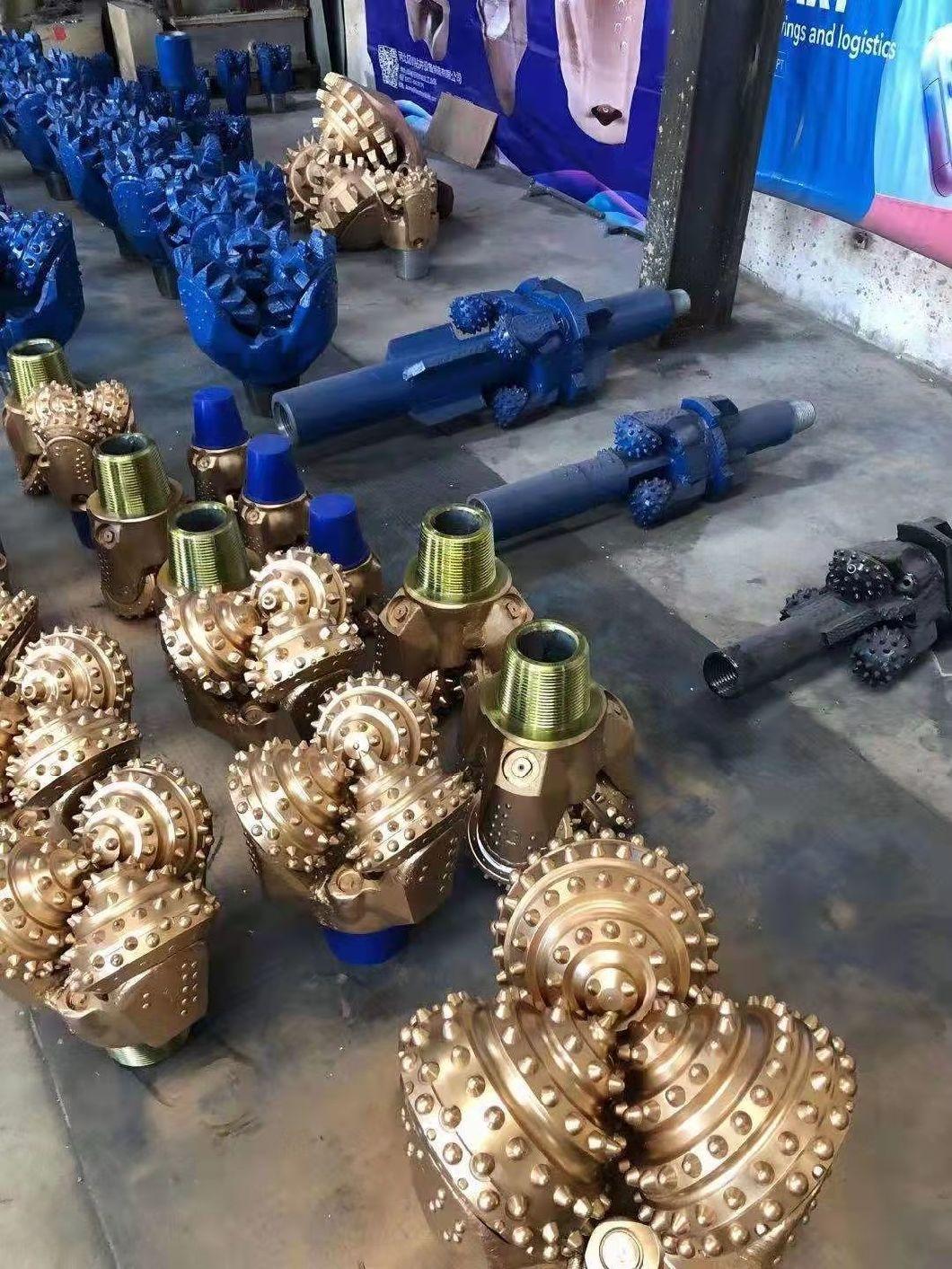

 SPEEDMADEDRILL is a leader in the manufacture and development of many kinds of  bits in China. We provide the best quality PDC coring drill, DTH drill, Tri drill bits etc to the market, all types of non-coring or coring drill traces. Our drill bits are used for well drilling, mining and construction contractors. Our drill bit has been tested and verified by time, with wear resistance and fast drilling speed. Different drill bits can be customized according to different rock formations. The engineering time is greatly shortened, and the maximum performance is exerted in the operation during drilling. Our products are durable and reliable. Our products are the preferred drill bits for drilling engineers in many countries because of our precise design and efficient drilling during use.

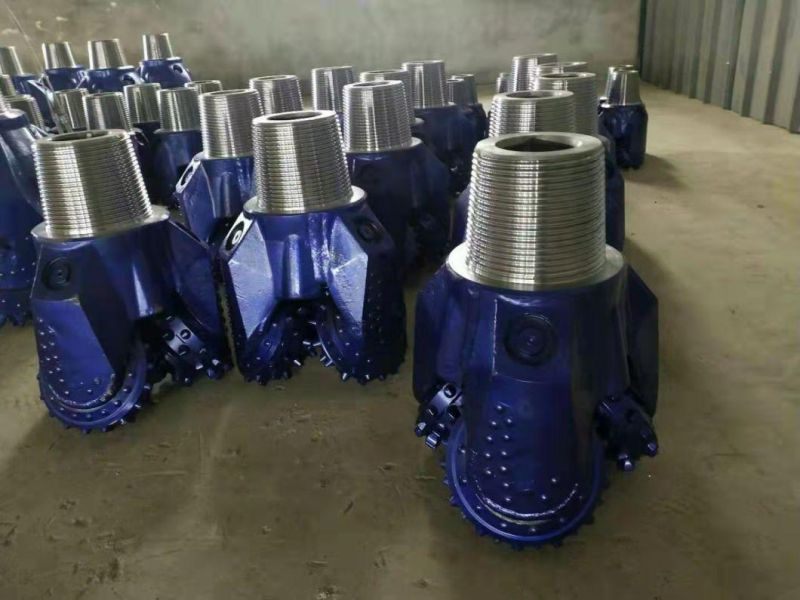

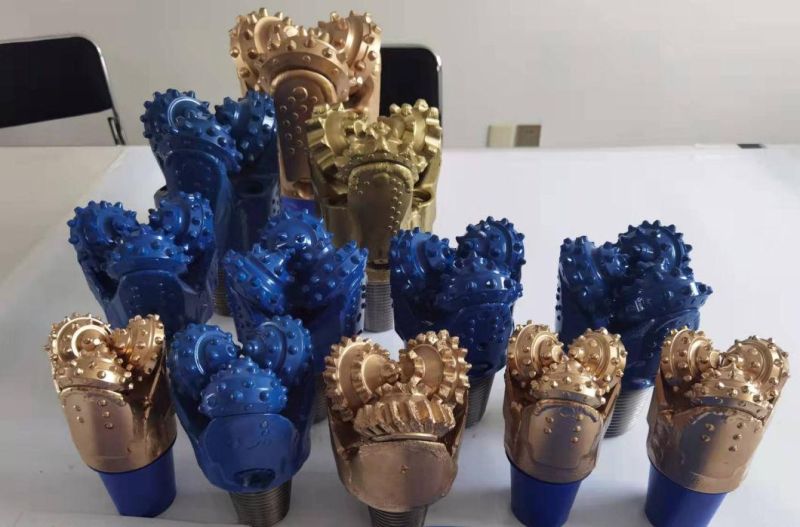

	Speedmade TRICONE  ROCK BITS ADVANTAGE
*****	High speed floating bearing structure,metal face seal journal, which prolongs the life durability under the condition screw drilling.
*****	Efficient cutting tooth and optimized cutting structure to help rasing the bit ROP
*****	Cone body protection against excessive wear of rock debris and unbroken rock which  improve the life durability of rock bit in direction and horizontal wells
*****	Speedmade high speed motor bit is suitable for drilling with totary speed from 300 to 90 RPM, which is the ideal choice for directional well,horizontal well and horizontal mutilateral well drilling

-PAYMENT-

DIY customization: please provide your rock formation information or detailed size drawings.

Free samples: some samples can be provided free of charge.

Trading:EXW, FOB, CFR, CIF, DDU such as.

Payment:T/T L/C,D/A,D/P,Western Union,MoneyGram.

Delivery time: normally 7-12 days
