Drilling Tools

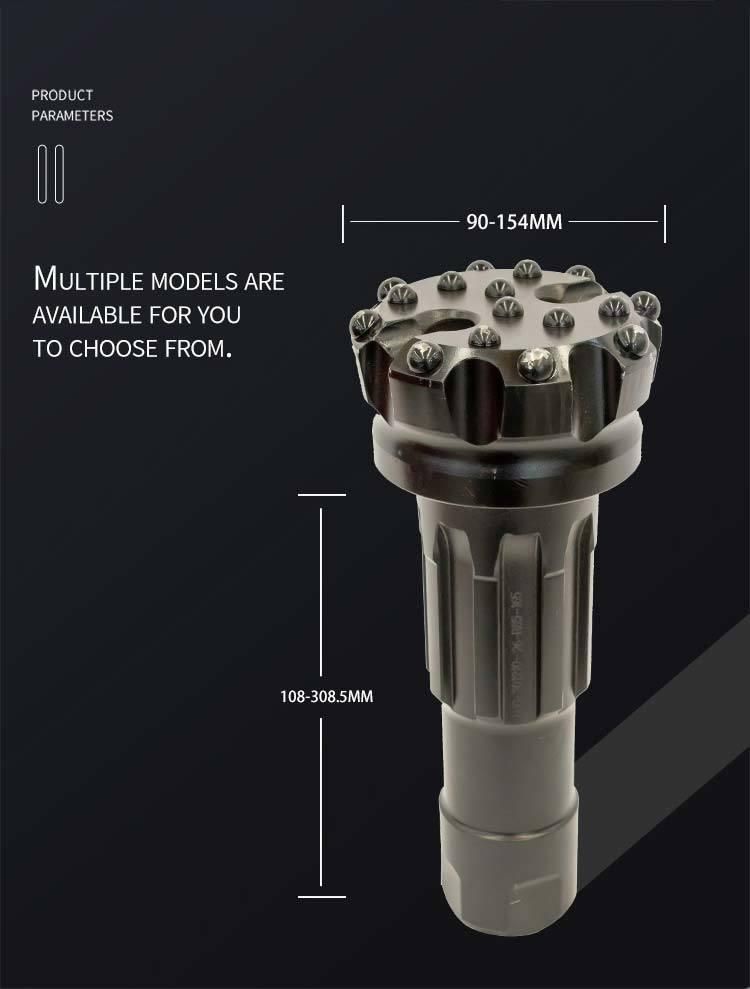

DTH Button Drill Bit 305mm Down The Hole Hammer Bits

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Customized:Customized
  • Standard:API
  • Length:Taper-length
  • Type:Center Drill Bit
  • Material:High Carbon Steel
  • Usage:Well Drilling

Base Info

  • Model NO.:DHD1120
  • Name:DTH Hammer Drill Bit
  • Color:Yellow
  • Weight:141.3-331.2mm
  • Spline:8
  • Port Hole:3
  • Transport Package:Standard Export Package
  • Specification:305-500mm
  • Trademark:Hengwang
  • Origin:Shandong, China
  • HS Code:8207199000
  • Production Capacity:10000PCS Per Month

Description

head shapehead diameter/mmshank length /mmsplineweight/kgconcave face3054908141.3concave face3114908141.6concave face3254908164.3concave face3504908169.1concave face3814908183concave face4004908194concave face4454908225.7concave face5004908331.2
Detailed Images
Hard Rock Drilling DTH Hammer Button Bit
Application:
Hard Rock Drilling DTH Hammer Button Bit

Packing & Delivery

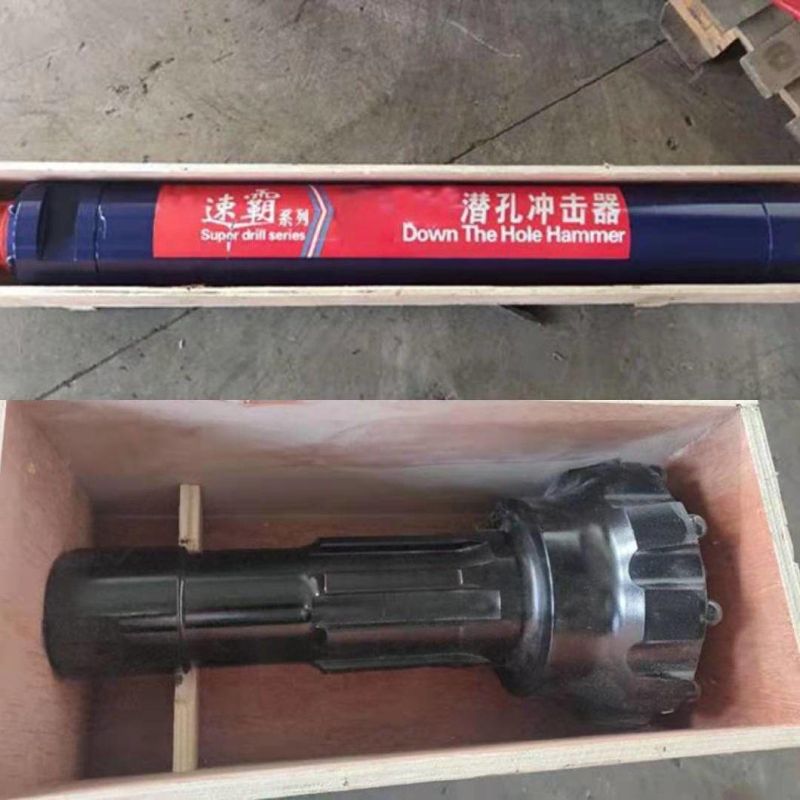

The drill bit will packaged in standard wooden case.If your quantity is large,should shipping by container.

Hard Rock Drilling DTH Hammer Button BitCompany Profile

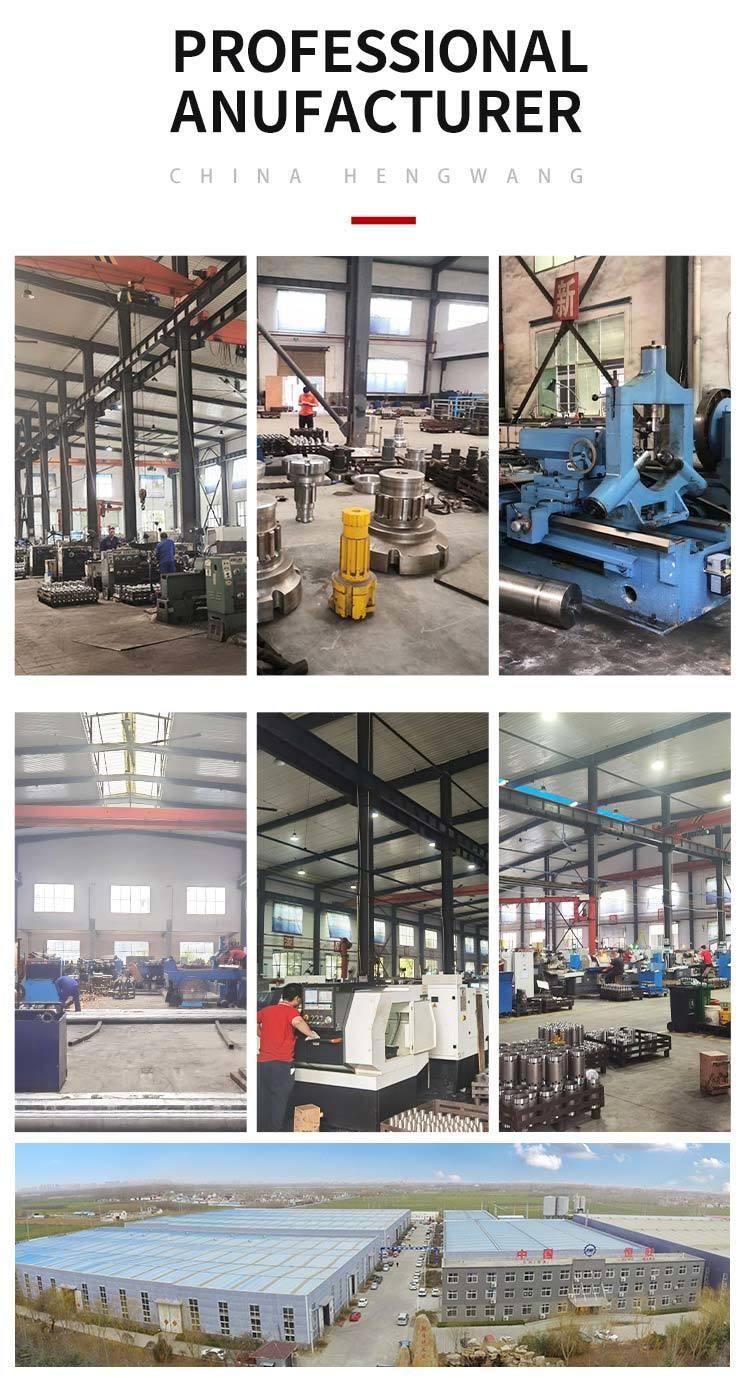

Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of rock drill machines ,drilling tools,and pile driver machines.Hard Rock Drilling DTH Hammer Button BitFAQ1. Q: Are you factory or trader?A: We are factory, has passed ISO, contact me showing you the factory;

2. Q: What kind of drilling rigs you have?
A: We mainly did hydraulic driling rig for soils, pneumatic drilling rig for rocks, DTH drilling rig, big diameter drilling rig, engineering drilling rig, geological exploration drilling rig etc, so you can tell me your requirements, would recommend you the
suitable one.

3. Q: What certificate you have?
A: CE, ISO, BV, TUV

4. Q: Do you offer training?
A: Each model we have supplementary instruction mannual, video for installation and operation, calling instruction, and working site instruction.

5. Q: How about the warranty?
A: We machine warranty is 1 year, used famous brand parts help you find locally; Also 3 spare parts center guarantee you get the spare parts in time.

Please send inquiry now.
