412f Airflush Double Tube Core Barrel
Changsha Miracleland Import & Export Co., Ltd.- Customized:Customized
- Certification:CE, ISO
- Usage:Core Drilling, Mining Exploration
- Material:Carbon Steel
- Condition:New
- Size:412f
Base Info
- Model NO.:412F
- Advantage:Strong Compatibility
- Color:Blue
- Quality:Excellent
- Transport Package:in Plywood Case
- Specification:1.5m 3m
- Trademark:csmiracleland
- Origin:Changsha, Hunan, China
- HS Code:8431432000
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. 412F Advantage Strong Compatibility Color Blue Quality Excellent Transport Package in Plywood Case Specification 1.5m 3m Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8431432000 Production Capacity 50 Sets/MonthProduct Description
The 412F airflush core barrel is designed for coring in soft to medium hard rocks using air as the flushing medium. It is often used for open-cast coal exploration and general geotechnical coring in situations where it is not desirable to use air as the flushing medium.The large annular space between the inner and outer tubes, in combination with face-discharge core bit designs, allows a large volume of air to reach the face of the bit . This is essential for cooling the bit and uplifting rock cuttings from the borehole.
This core barrel has proved to be very effective when used with PCD core bits, giving a fast rate of penetration and good core recovery
Key to Main Parts of 412F Core Barrel Assembly
Complete core barrel consists of:
1. Core Barrel Head
2. Inner Tube 1.5m or 3.0m
3. Outer Tube 1.5m or 3.0m
4. Inner Tube Extension
5. Core Lifter
6. Core Lifter Case
SizeCore Barrel Size: |
Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76 |
T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
TT series: TT 46, TT 56 |
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146 |
T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146 |
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146 |
MLC series: NMLC, HMLC |
LTK series: LTK48, LTK60 |
WF series: HWF, PWF, SWF, UWF, ZWF |
WT series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube) |
WG series: EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube) |
WM series: EWM, AWM, BWM, NWM, HWM |
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, M101 |
Technical Data
Specification | Core Barrel Type |
412F | |
Hole Diameter (mm) | 107.2 |
Core Diameter (mm) | 74.7 |
Kerf / Crown Thickness (mm) | 16.25 |
Cutting Area (cm2) | 46.5 |
Hole Area (cm2) | 90.3 |
Cutting Area as % of Hole Area | 51.4% |
Core Area (cm2) | 43.8 |
Thread Connection in Head* | HW |
Recommended Casing | PW |
Conversion to triple tube possible | Yes |
Related Products

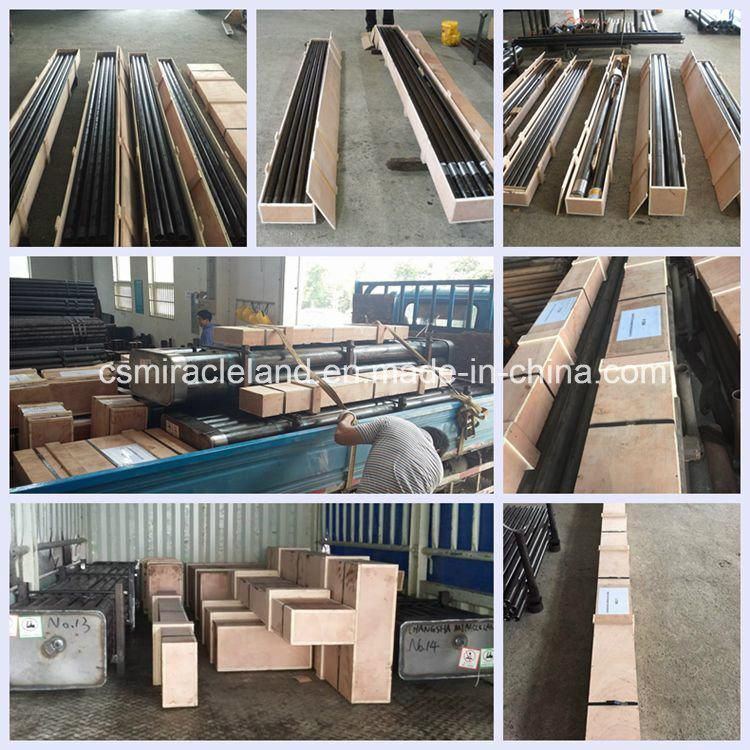

Packaging & Shipping
