Mazier 101 mm Core Barrel, Taking Un-Disturbed Soil Sampler Equipment

Changsha Miracleland Import & Export Co., Ltd.
  • Customized：Customized
  • Certification：CE, ISO
  • Usage：Soil Testing
  • Material：Alloy
  • Condition：New
  • Size：Mazier 101 Core Barrel

Base Info

  • Model NO.：Mazier M101
  • Transport Package：in Plywood Case
  • Specification：101mm
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8431432000
  • Production Capacity：50 Sets,Month

Description

Basic Info.

Model NO. Mazier M101 Transport Package in Plywood Case Specification 101mm Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8431432000 Production Capacity 50 Sets/Month

Product Description

Mazier automatic core barrel

This technology takes large diameter (101 mm) core samples in 1.5 m length pieces.

Using triple wall core barrel permits removal of the sample as it is taken from the ground, guaranteed the undisturbed sample of the core. Thats why these samples in addition good for large diameter geotechnical laboratory tests beyond geological purposes.

The third, inner tube made of plastic and continuously cover the sample.

The wireline system allows that only the core barrel (second and third tubes) have pulled out to the surface after 1.5 m core drilling, while the outer tube (the first) works as a casing.

specificationMazier 101
Outer Diameter (mm)101
Core diameter (mm)74.00
Thread of the headCR50/BW/BWY/NW/NWY
Hole Area (cm²)80.2
Core Area (cm²)43.0
Recommended Drill RodCR50/BW/BWY/NW/NWY
Recommended CasingM116

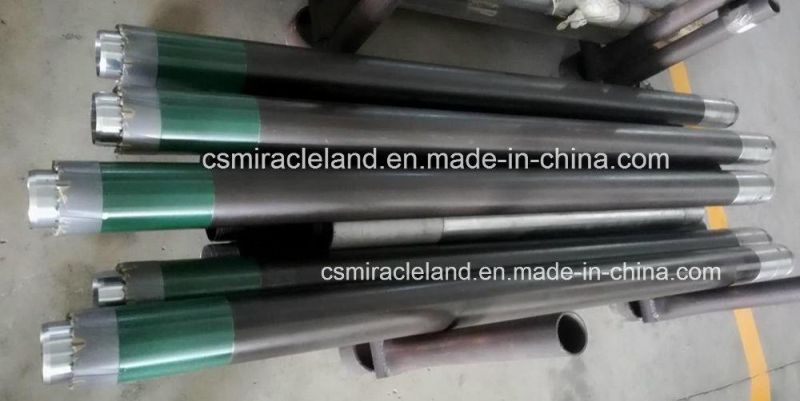

Detailed Images

Mazier 101 mm Core Barrel, Taking Un-Disturbed Soil Sampler Equipment

Size Available

B76 core barrel, B86 core barrle, B101 core barrel, B131 core barrel, B146 core barrel

BQ core barrel, NQ core barrel, NQ2 core barrel, HQ core barrel, PQ core barrrel, NQ3 core barrel, HQ3 core barrel, PQ3 core barrel

BQU core barrel, NQU core barrel, HQU core barrel, PQU core barrel

TT-46 core barrel, TT56 core barrel

T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel

T6-76 core barrel, T6-86 core barrel, T6-101 core barrel, T6-116 core barrel, T6-131 core barrel, T6-146
core barrel

T6S-76 core barrel, T6S-86 core barrel, T6s-101 core barrel, T6s-131 core barrel, T6S-146 core barrel

BMLC core barrel, NMLC core barrel, HMLC core barrel

HWF core barrel, PWF core barrel, SWF core barrel, UWF core barrel, ZWF core barrel

AWG core barrel, BWG core barrel, NWG core barrel, HWG core barrel

AX core barrel, BX core barrel, NX core barrel, HX core barrel

LTK48 core barrel, LTK60 core barrel

Mazier core barrel, M101 core barrel

412 F core barrel
