• Model NO.：Drilling Rod
• Production Capacity：100000 Pieces,Year

Jinshi Drilltech (Tangshan) Co., Ltd. was founded on November 11, 1996, and listed on the New OTC market (Jinshi Drilltech stock code: 873131; Former Tangshan Jinshi Superhard Material Co., Ltd) in January 2019. The company with a registered capital of 53 million CNY, an area of 50,000 square meters, 330 employees worldwide, and is a high-tech enterprise integrating R&D, production and sales of diamond core drilling tools, total drilling solutions and drilling construction.

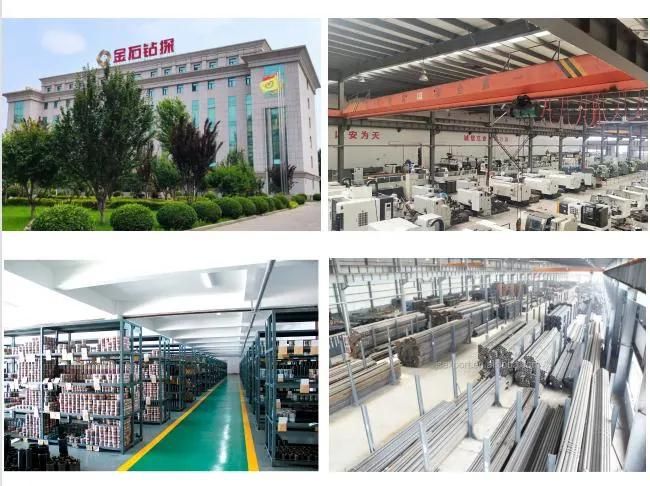

Jinshi plant covers an area of 51,800 square meters with over 360 employees and world class intelligent production line of diamond core drilling consumables. Jinshi possesses core technology of diamond tools and knowledge of deep hole drilling tools. A dedicated testing lab and strict adherence to the I S O 9 0 0 1 quality control system ensure every piece is qualified. Standard drilling units make hands-on experience in high efficiency drilling available to Jinshi. Jinshi takes drilling industry in China to a high speed train and makes us come into a high efficient and safety drilling expert.

Product DescriptionName:Wireline core Drilling RodModel:BQ/NQ/HQ/PQ serices Material:Alloy Steel TubingDimensions:1.5m,  3m length or customizedColor:Black or customizedApplications:Drilling ToolsStandard:ISO-9001Application:Mining or geological Drilling

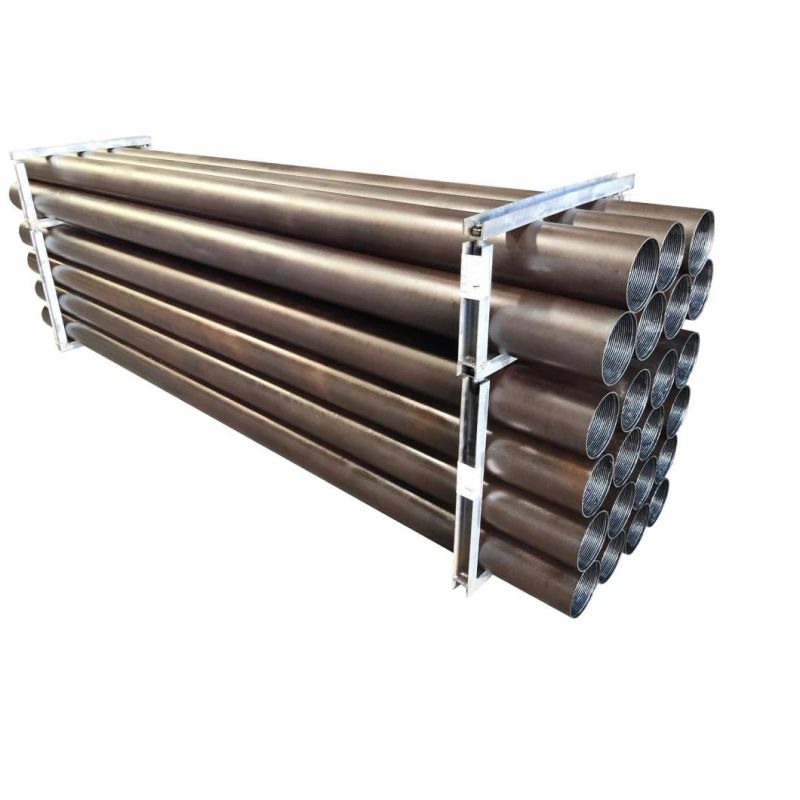

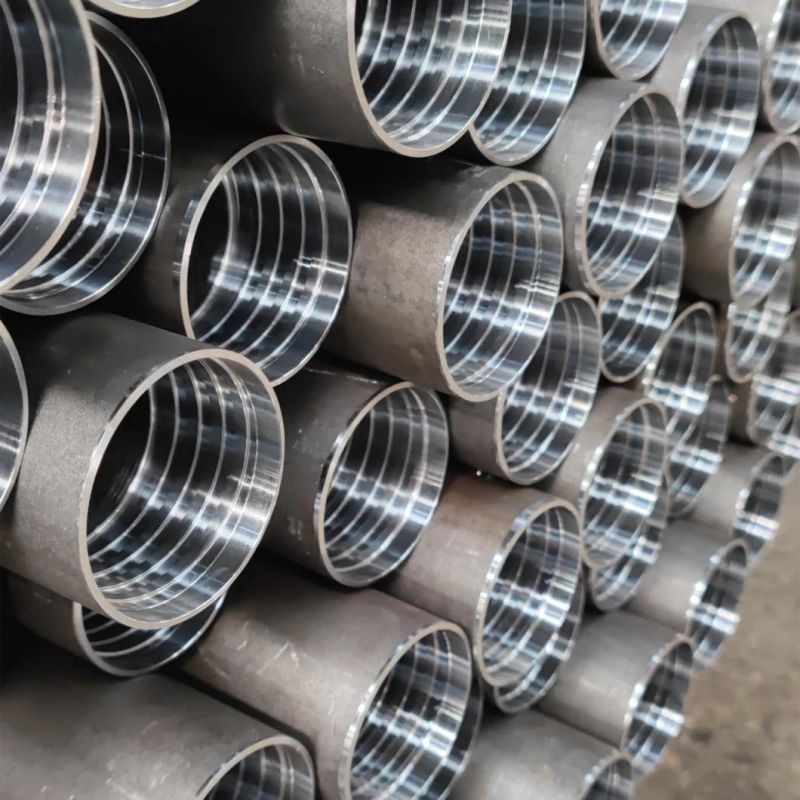

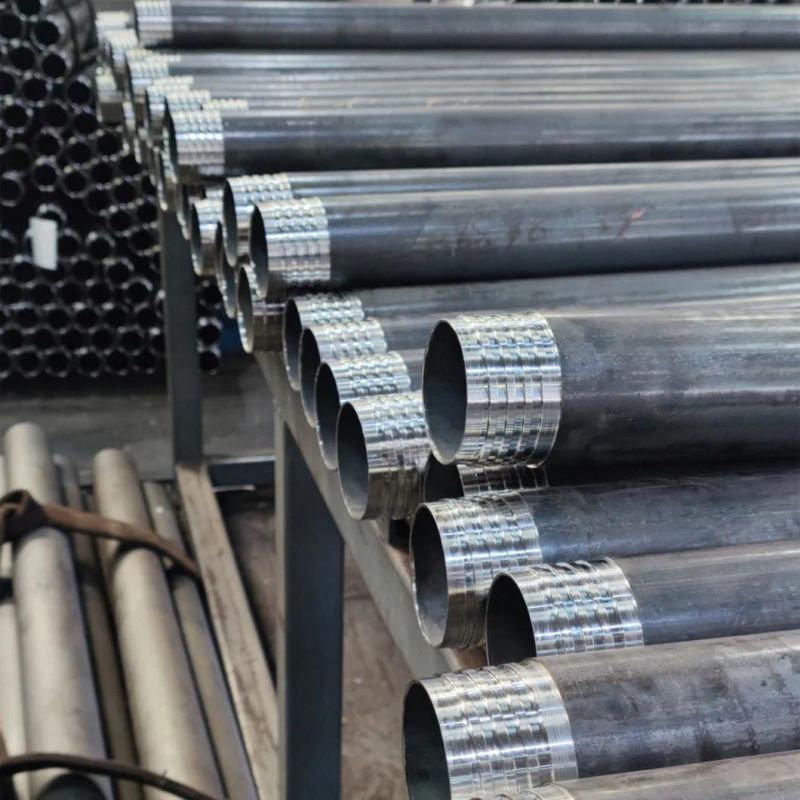

the wireline drill rods are made of special geological steel pipe with high strength and toughness which is precessed by high-precision CNC lathe and molding tool.the drill rod thread is tested by special thread guage, and the thread part is specially strengthened, the drill rod has consistent concentricity and straightness, and its precision and mechanical properties reach the international advanced level.

C series wireline drill rod standardStandardDesigned hole depth(m)BQ1200NQ1200HQ1200PQ1200SQ600

C Series Wireline Drill Rod Technical SpecificationStandardOD(mm)ID(mm)Wall
Thichness(mm)TPIPin thread length(mm)weight(kg/m)BQ55.7 46.1 4.8 3.0 44.5 6.03NQ70.5 60.3 5.1 3.0 44.5 8.08HQ89.0 77.8 5.6 3.0 44.5 11.52PQ114.3 101.9 6.2 2.5 63.5 16.53SQ139.7 125.5 7.1 2.5 62.8 23.22

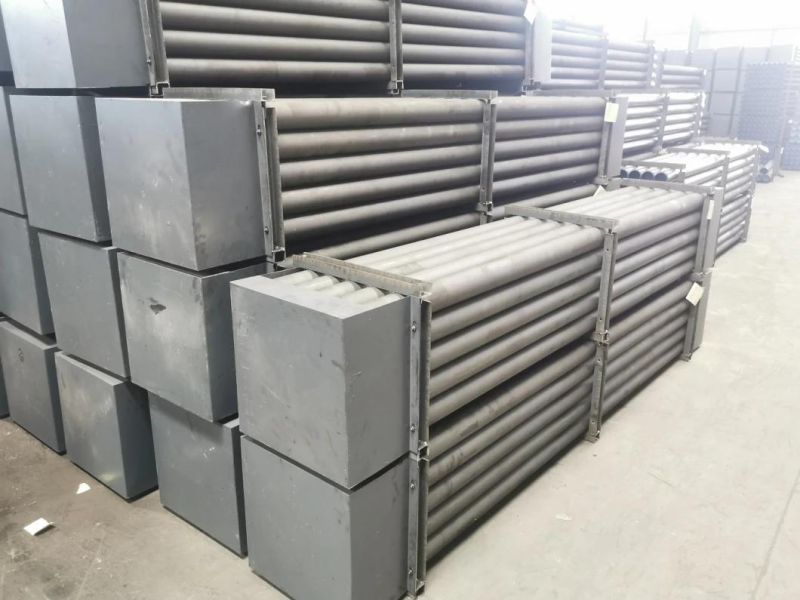

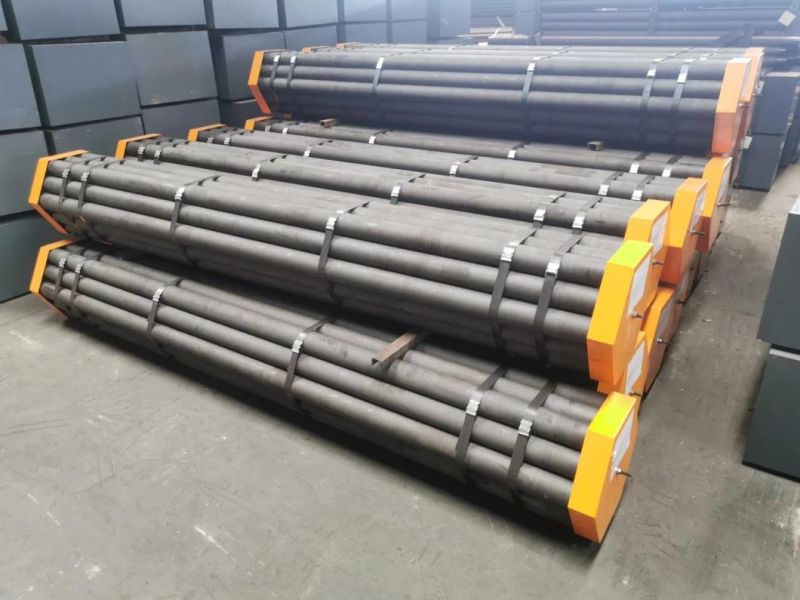

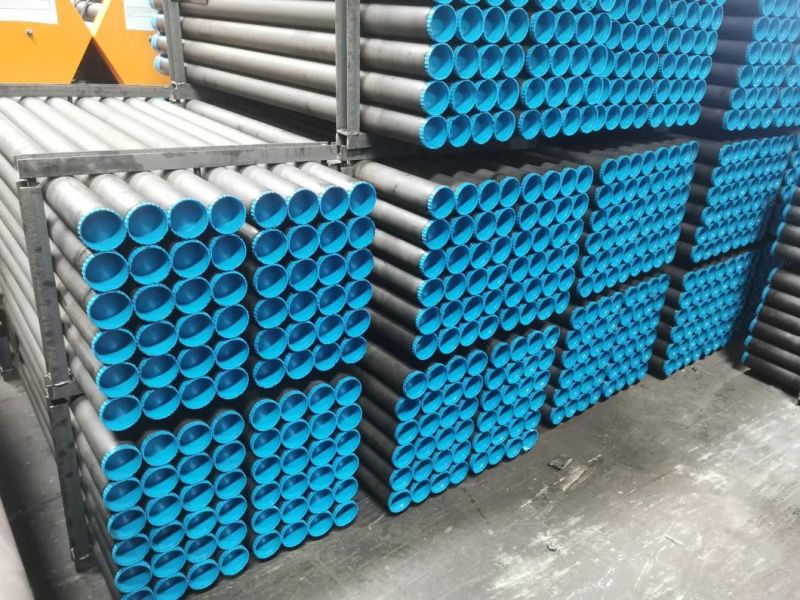

Delivery and Packaging

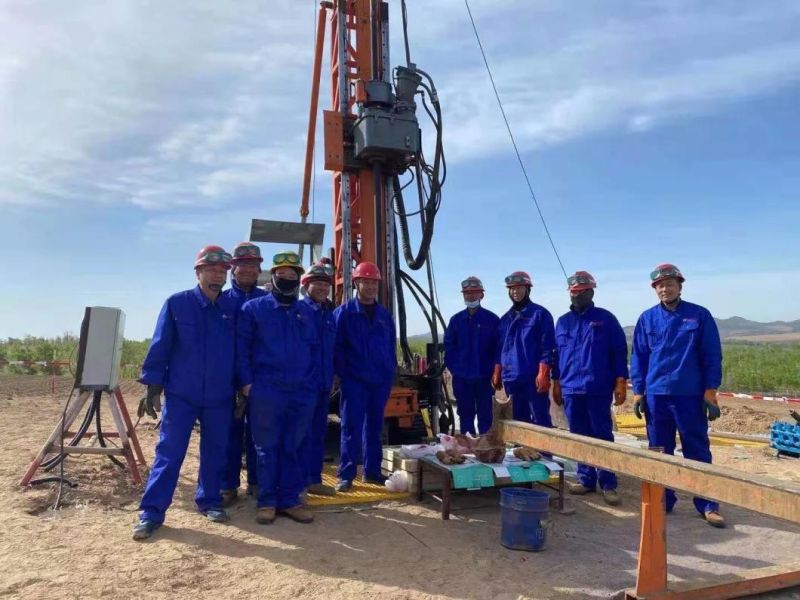

Successful Projects

Our Advantages
1. Professional Team & Experience:Our expert team in this area has an experience of more than 20 years.

2. World-Class Intelligent Facilities:We own precision CNC machine, milling machine, quenching machine, precision lathe, sintering machine and otheradvanced equipments.

3. Selected High Quality Raw Materials:We select raw materials from leading big steel factories, such as BAO STEEL, TANG STEEL, HEBEI STEEL GROUP which
are the best and largest raw material manufacturers in China.

4. Strict Physical/Chemical Testing Procedures:We have own lab in our factory to make sure our products can meet the requirements of design and process, andprovide reliable testing data.

5. Short Delivery Time:Normal production takes 7 days. And we in stock standard products which can be shipped very soon.

6. Safe Package & Shipment:Standard export packages with well protection or in wooden/steel cases.

7. Best After-Sale Service:Timely communication & response especially for trouble shooting. We got good reputation around the world since all these years.
