High Quality T45-125mm Threaded Button Drill Bit

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Type：Center Drill Bit
  • Material：Tungsten Carbide
  • Usage：Well Drilling, PCB Drilling, Metal Drilling
  • Condition：New
  • Model：Thread Button Bit
  • Body Type：Normal Type and Retract Type

Base Info

  • Model NO.：T45-125
  • Diameter：125mm
  • Color：Red, Black, Yellow, Gold
  • Transport Package：Wood Package
  • Specification：CE, SGS, ISO: 9001, R32 R38 T38 T45 T51
  • Trademark：PRODRILL
  • Origin：China
  • HS Code：82071990
  • Production Capacity：10000PCS,Month

Description

  • Code No.: Q14-125-T45
  • Thread: T45
  • Diameter: 125mm
  • Gauge Buttons: 8
  • Front Buttons: 6
  • Carbide Design: Dome, Ballistic
  • Face Design: Convex
  • Skirt Design: Standard
Rock drilling tools factory ProDrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for benching and long-hole drilling underground

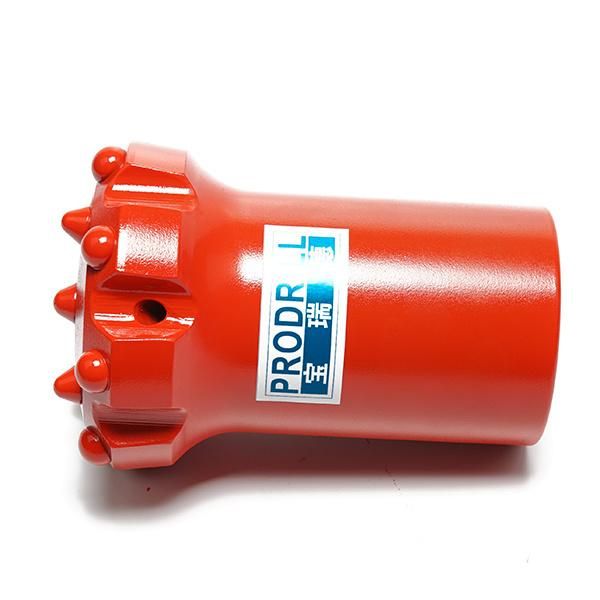

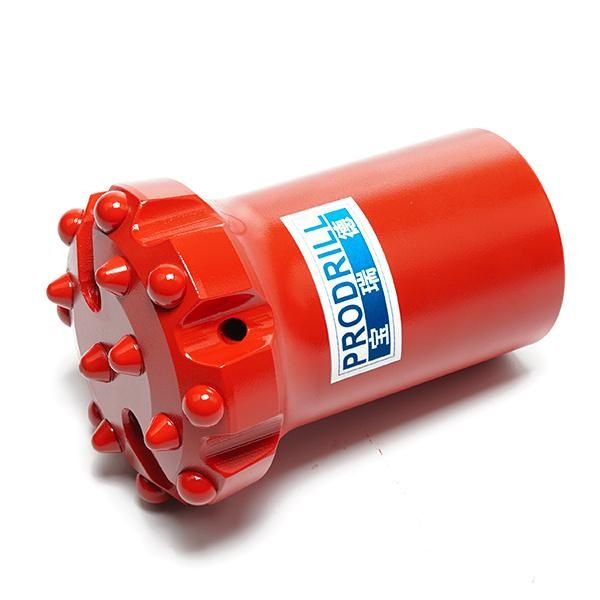

High Quality T45-125mm Threaded Button Drill Bit
Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, drop Center
Carbide shape:  Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer.

T45 Threaded Drill Bit with convex face design.

 High Quality T45-125mm Threaded Button Drill Bit



Standard Skirt profile
A standard skirt is more suited for homogeneous rock conditions. The standard skirt is typically smaller than the head diameter and this gap between the bit and the rock wall helps in the flushing characteristics of the
• ProDrill Tapered, Threaded bits for small hole drilling, drifting and tunneling, stone quarrying applications
• ProDrill offers top hammer threaded drill bits for long hole drilling underground mining,  and bench drilling applications
High Quality T45-125mm Threaded Button Drill Bit

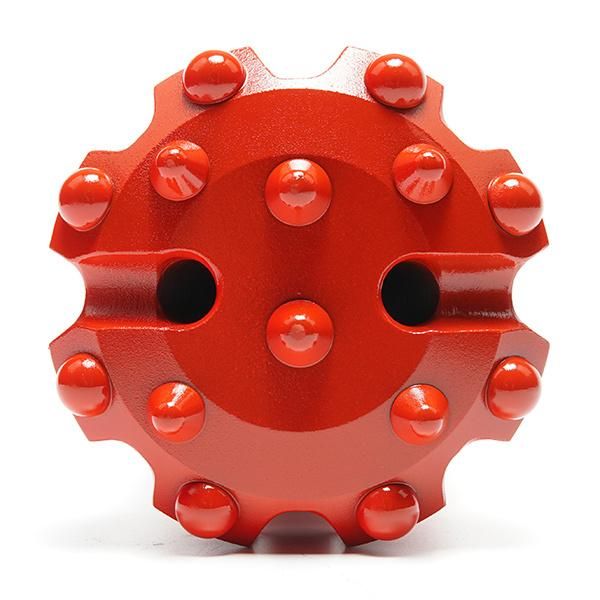

14 Semi-Ballistic Buttons, 125mm Diamter, T45 Thread, Standard body Top Hammer Bit to match with extension drill rods for bench drilling and underground long hole drilling.
Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory


About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 15 years.
2. We have advanced technology and equipment.
3. Our technician has more than 15 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
Product Name:Thread Button bits
Description:Thread Button bits
Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas.
Material:Alloy steel bar and tungsten carbide bit
MOQ:No MOQ required for testing and trial order
Body TypeNormal type and retract type
Thread typeR22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
Diameter32mm-152mm
Button bit shapeSpherical and Ballistic
Face shapeFlat shape and Drop- Center shape

The products we produce:A.Tapered rock drilling toolsTapered rod+Taper button bits
7o Taper Button bits  (Recommended bit diameter Dia.32~Dia.44)
11o Taper Button bits  (Recommended bit diameter Dia.32~Dia.44)
12o Taper Button bits  (Recommended bit diameter Dia.32~Dia.44)

B.Extension Drill Tools(System): R22/R25/R28/R32/R35/T35/T38/T45/T51/GT60
a. Shank adapter + M/F Rod + Thread Button Bit
b. Shank adapter + Coupling + M/M rod + Thread Button bit
R25 (1") SERIES (Recommended bit diameter Dia.33~Dia.45)
R28 (1 1/8") SERIES (Recommended bit diameter Dia.37~Dia.45)
R32 (1 1/4") SERIES (Recommended bit diameter Dia.41~Dia.64)
R35 (1 3/8") SERIES (Recommended bit diameter Dia.48~Dia.64)
T38 (1 1/2") SERIES (Recommended bit diameter Dia.57~Dia.102)
T45 (1 3/4") SERIES (Recommended bit diameter Dia.70~Dia.115)
T51 (2") SERIES (Recommended bit diameter Dia.89~Dia.127)
GT60 SERIES (Recommended bit diameter Dia.92~Dia.152)

 We can provide Taperde rod, Taper button bit, Shank adapter, M/F (Speed)  rod, M/M (Extension ) rod, Coupling And Thread Button bit for you.

Product Strength:
  1. Using high quality alloy steel rod and tungsten carbide, threaded drill bit is made by vacuum heat treatment process, which can withstand the most stringent rock drilling requirements, and has very good fatigue and wear resistance effect.We have a series of product systems including shank adapter, drill rods, connecting sleeves and drill bits.We have excellent pre-sale and after sales service system, with senior engineers and professional support.For samples, we offer 15 days delivery time, bulk products for 30 days to meet your needs.

Production Site:

  We have CNC machining center, vacuum heat treatment equipment, well carburizing heat treatment equipment and other advanced processing equipment to ensure the production of high-quality rock drilling tools products




Packing and transportation:

A.We offer simple packing, wooden case packing, plastic box packing, plastic bracket packing and so on.
B.We provide FOB services.


We will serve you in the most sincere way!
