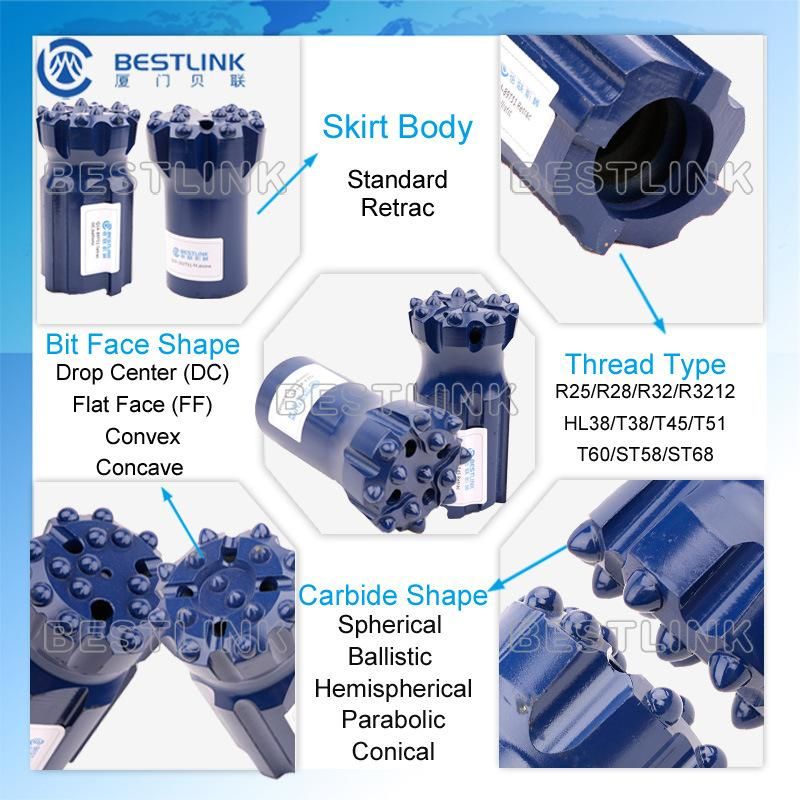

Hot Insert Retrac Type Thread Button Bit for Quarry Drilling
Xiamen Bestlink Factory Co., Ltd.- Customized：Customized
- Type：Core Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
- Diameter：38-127mm
- Thread Type：R22, R25, R28, R32, R35, R38, T38, T45, T51, St58
Base Info
- Model NO.：R22, R25, R28, R32, R35, R38, T38, T45, T51
- OEM and ODM：Yes
- Certificate：ISO2000
- Mining Object：Coal Machinery
- Transport Package：Plywood Box
- Specification：as per order quantity
- Trademark：none
- Origin：China
- HS Code：82071990
- Production Capacity：20000PCS Per Month
Description
T45 Thread Button Bit (FOR REFERANCE, more details, please contact with us)Diameter (mm) Part No. No. of buttons Buttons x button diameter (Gauge, Centre) Buttons angle ° (Gauge, Front) Flushing hole (Side, Centre) Weight approx (kg) 70 136-5070,49-20 12 8x11, 4x11 40 -, 2 2.2 70 136-5070-21-45,49-20 11 6x12.7, 5x10 35 1, 2 2.2 70 136-6070,49-20 10 6x11, 3x11,1x9 35 -, 3 2 70 136-6070-45,49-20 10 6x11, 3x11,1x9 35 -, 3 2.1 76 136-5076,49-20 12 8x11, 4x11 40 -, 2 2.2 76 136-5076-45,49-20 12 8x11, 4x11 40 -, 2 2.8 76 136-5076-20,49-20 11 6x12.7, 5x11 35 2, 1 2.6 76 136-5076-21,49-20 13 8x12.7, 5x11 35 1, 2 2.4 76 136-5076-21-45,49-20 13 8x12.7, 5x11 35 1, 2 2.7 76 136-6076,49-20 10 6x12.7, 3x11,1x11 35 1, 2 2.6 76 136-6076-45,49-20 13 8x11, 4x11,1x11 35 1, 4 3.2 76 136-6076-21,49-20 13 8x12.7, 4x11,1x11 35 -, 4 2.4 76 136-6076-21-45,49-20 13 8x12.7, 4x11,1x11 35 -, 4 3 89 136-5089,49-20 12 8x12.7, 4x12.7 40 -, 2 3.3 89 136-5089-20,49-20 14 8x12.7, 6x11 35 1, 1 3.7 89 136-5089-45,49-20 12 8x12.7, 4x12.7 40 -, 2 5 89 136-5089-21-45,49-20 14 8x12.7, 6x12.7 35 1, 2 4.7 89 136-6089,49-20 11 6x12.7, 3x11,2x11 35 1, 3 3.5 89 136-6089-45,49-20 14 8x11, 4x11,2x9 35 1, 4 4.7 89 136-6089-21,49-20 13 8x12.7, 4x11,1x11 35 -, 4 3 89 136-6089-21-45,49-20 13 8x12.7, 4x11,1x11 35 -, 4 4.2 102 136-5102,49-20 12 8x14.5, 4x14.5 40 -, 2 4.4 102 136-5102-45,49-20 12 8x14.5, 4x14.5 40 -, 2 6.7 102 136-5102-21,49-20 14 8x15.8, 6x12.7 35 1, 2 3.7 102 136-6102,49-20 11 6x14.5, 3x12.7,2x12.7 35 1, 3 3.9 102 136-6102-45,49-20 14 8x12.7, 4x12.7,2x12.7 35 1, 4 6.9 102 136-6102-21,49-20 13 8x14.5, 4x12.7,1x12.7 35 -, 4 5.3 115 136-5115,49-20 18 10x12.7, 8x12.7 35 -, 2 5.4 115 136-6115,49-20 14 8x14.5, 4x12.7,2x12,7 35 1, 4 5 127 136-5127-42-24,49-20* 19 18x12.7, 1x12.7 35 1, 3 5.3 152 136-5152-42-24,49-20* 20 18x14.5, 2x14.5 35 1, 3 9.9
