Pgm Premium Quality 2cutter PRO Masonry Drill Bit Tri Flat Shank for Concrete Stone Brick Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：60mm to 160mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：WJ322
- Carbide Type：Virgin Yg9
- Steel Shaft Type：40cr
- Flute Type：W5
- Cutting Head：Patented Swd Turbo Wave Type
- Marking：Stamped
- Surface Treatment：Shot-Peened
- Shank Type：Tri-Flat
- Welding Type：AVS (Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：4mm to 25mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. WJ322 Carbide Type Virgin Yg9 Steel Shaft Type 40cr Flute Type W5 Cutting Head Patented Swd Turbo Wave Type Marking Stamped Surface Treatment Shot-Peened Shank Type Tri-Flat Welding Type AVS (Automatic Vacuum Soldering) Certificate Pgm Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 4mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

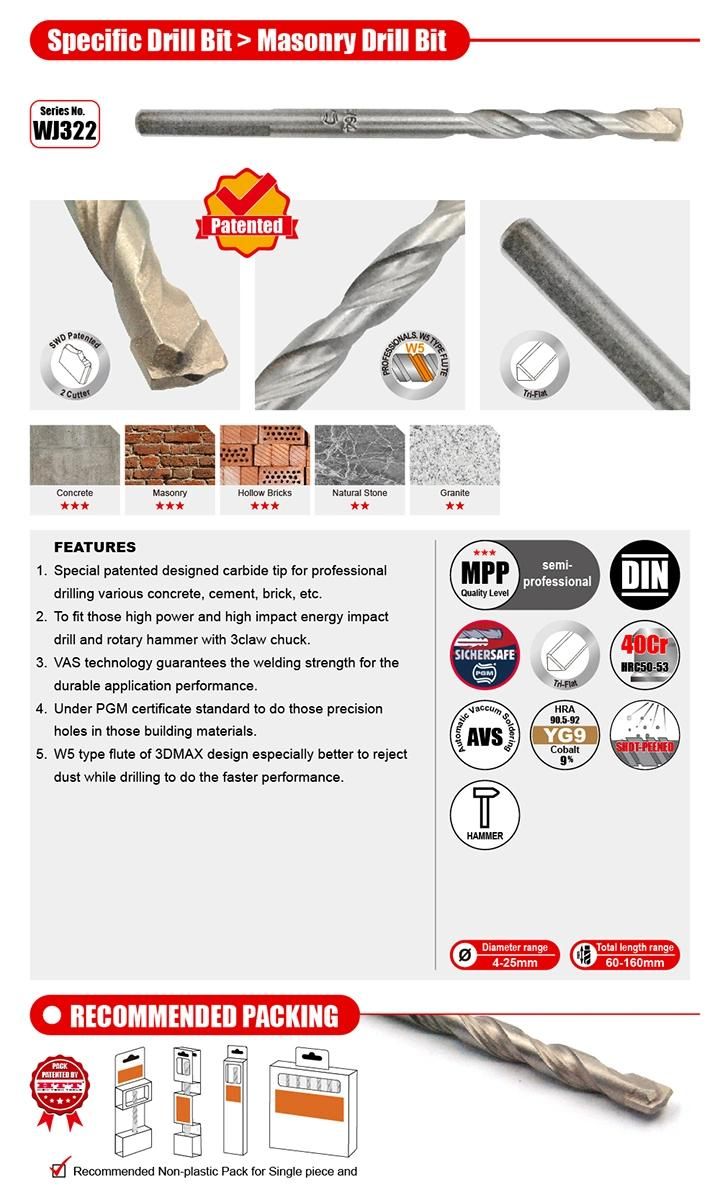

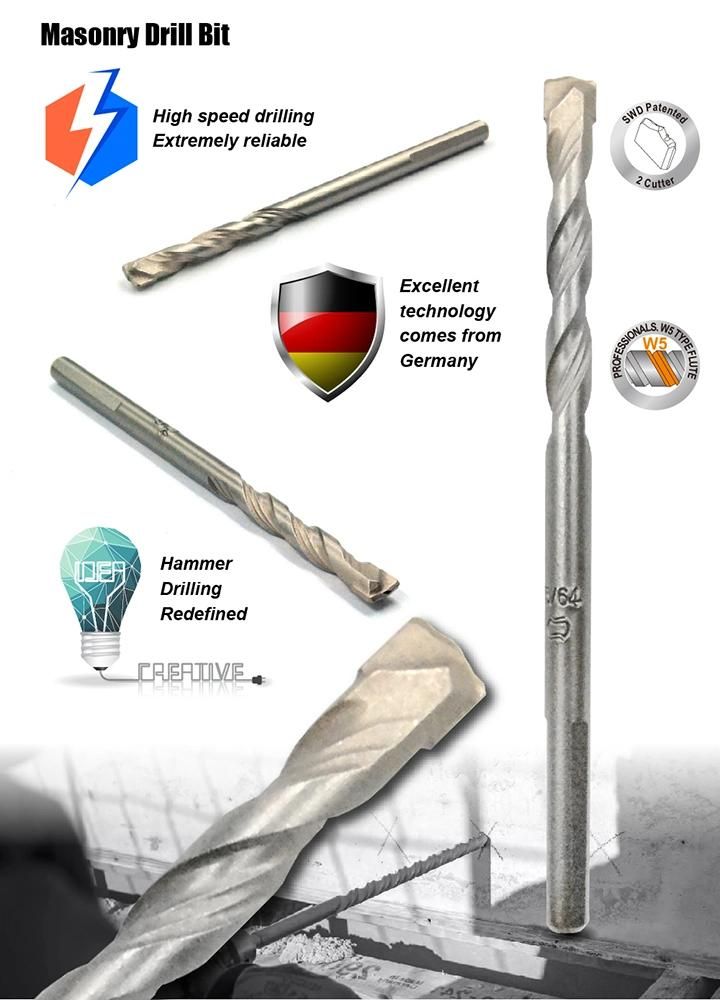

* Masonry Drill Bit Cylindrical Shank, PGM certificated, Automatic Vacuum Soldered, Shot-peened surface* Carbide tips are made of virgin YG9 with the patented SWD design
* W5 flute of 3DMAX design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for an easy longer-time drilling job.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special request.
*Note: 4-5.5mm diameter drill with cylinder shank. 6mm and up with tri-flat shank.
| Item No. | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
| WJ322.040085 | 4 | 45 | 85 | 3.75 |
| WJ322.050085 | 5 | 45 | 85 | 4.50 |
| WJ322.055095 | 5.5 | 50 | 95 | 4.50 |
| WJ322.060100 | 6 | 60 | 100 | 5.50 |
| WJ322.065100 | 6.5 | 60 | 100 | 6.00 |
| WJ322.070100 | 7 | 60 | 100 | 6.50 |
| WJ322.080120 | 8 | 80 | 120 | 7.60 |
| WJ322.090120 | 9 | 80 | 120 | 7.60 |
| WJ322.100120 | 10 | 80 | 120 | 9.00 |
| WJ322.120130 | 12 | 80 | 130 | 9.98 |
| WJ322.130150 | 13 | 90 | 150 | 10 |
| WJ322.140150 | 14 | 90 | 150 | 10 |
| WJ322.160150 | 16 | 90 | 150 | 10 |
| WJ322.180160 | 18 | 100 | 160 | 10 |
| WJ322.200160 | 20 | 100 | 160 | 10 |
| WJ322.220160 | 22 | 100 | 160 | 10 |
| WJ322.240160 | 24 | 100 | 160 | 10 |
| WJ322.250160 | 25 | 100 | 160 | 10 |
