Gw Carbide - Solid Drill Bit with Coolant Through Hole with High Resistance and Good Quality

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.
  • Length：Stub-length
  • Type：Twist Drill Bit
  • Material：Tungsten Carbide
  • Usage：Wood Drilling, PCB Drilling, Metal Drilling
  • Use：Metal Drilling, Masonry Drilling
  • Delivery Time：5 ~ 15 Days

Base Info

  • Model NO.：D1-20mm
  • Overall Length：50-100mm
  • Hole：Have or No
  • Hardness：HRC45,55,60,65
  • Grade：Yg6,Yg8, Yg10, etc.
  • Pressure：0.5-0.7MPa
  • Drill Direction：Right and Left
  • Coating：Altin, Tiain
  • Diameter：1-20mm
  • Transport Package：Plastic&Carton
  • Specification：customized
  • Trademark：GW
  • Origin：Zhuzhou Hunan
  • HS Code：8207709000
  • Production Capacity：50000PCS,Month

Description

 Flute dia (d)Cutting length ( l )Shank dia (D)Overall length(L)1.0×3×4D×50L1.034501.5×4×4D×50L1.544502.0×6×4D×50L2.064502.5×7×4D×50L2.574503.0×8×4D×50L3.084503.5×10×4D×50L3.5104504.0×11×4D×50L4114504.5×13×6D×50L4.5136505.0×13×6D×50L5.0136505.5×13×6D×50L5.5136506.0×15×6D×50L6.0156506.5×15×8D×60L6.5158607.0×17×8D×60L7.0178607.5×17×8D×60L7.5178608.0×20×8D×60L8.0208608.5×23×10D×75L8.52310759.0×23×10D×75L9.02310759.5×25×10D×75L9.525107510.0×25×12D×75L10.025127510.5×28×12D×75L10.528127511.0×28×12D×75L11.028127511.5×28×12D×75L11.528127512.0×30×12D×75L12.030127513.0×33×16D×100L13.0331610014.0×35×16D×100L14.0351610015.0×38×16D×100L15.0381610016.0×40×16D×100L16.0401610017.0×40×20D×100L17.0402010018.0×40×20D×100L18.0402010019.0×40×20D×100L19.0402010020.0×40×20D×100L20.0402010025.0×40×25D×100L25.04025100

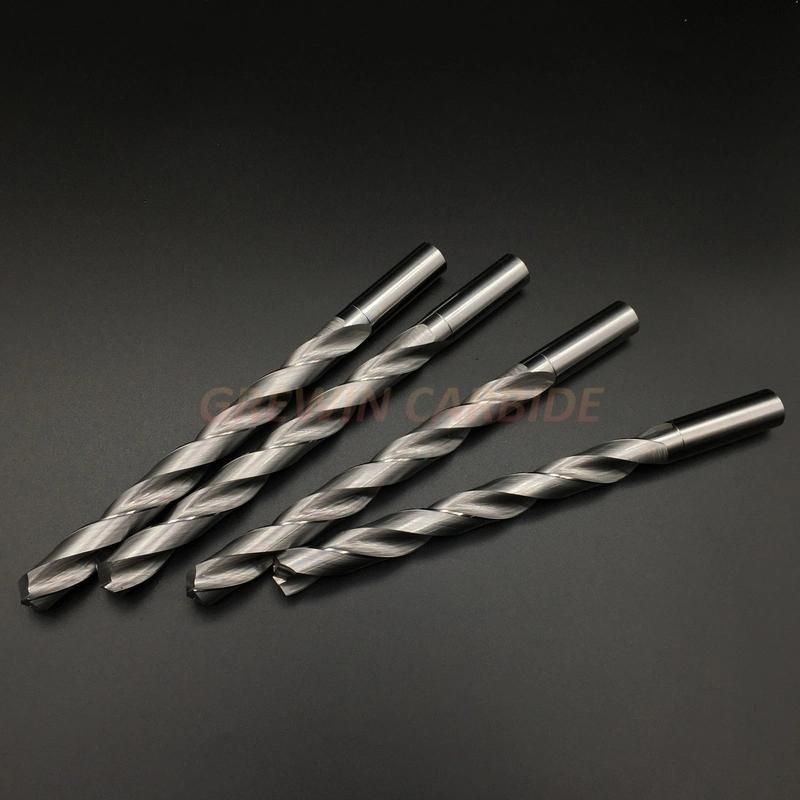

Gw Carbide - Solid Drill Bit with Coolant Through Hole with High Resistance and Good Quality

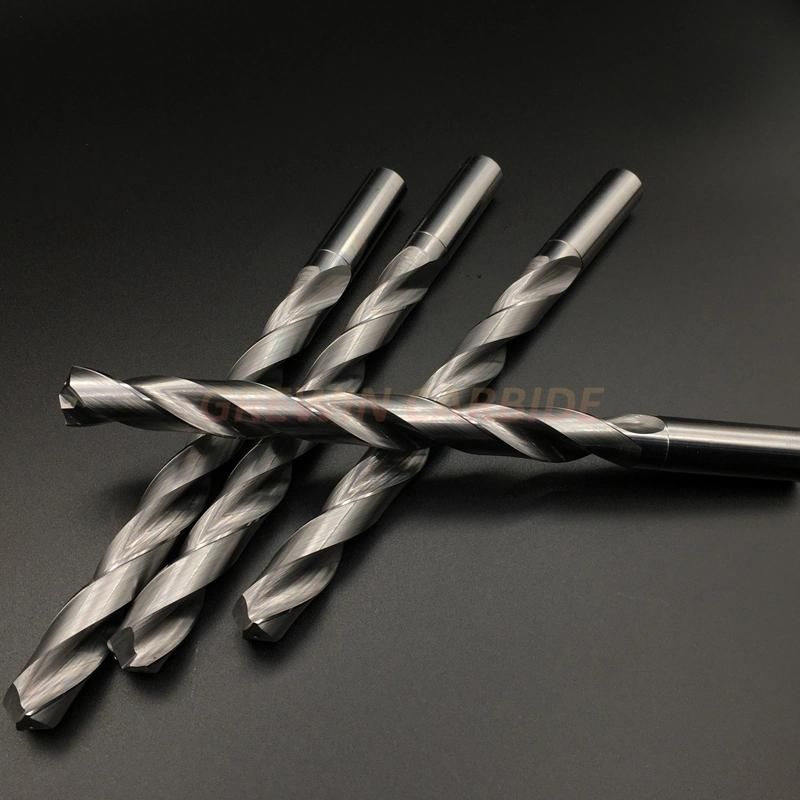

Gw Carbide - Solid Drill Bit with Coolant Through Hole with High Resistance and Good Quality

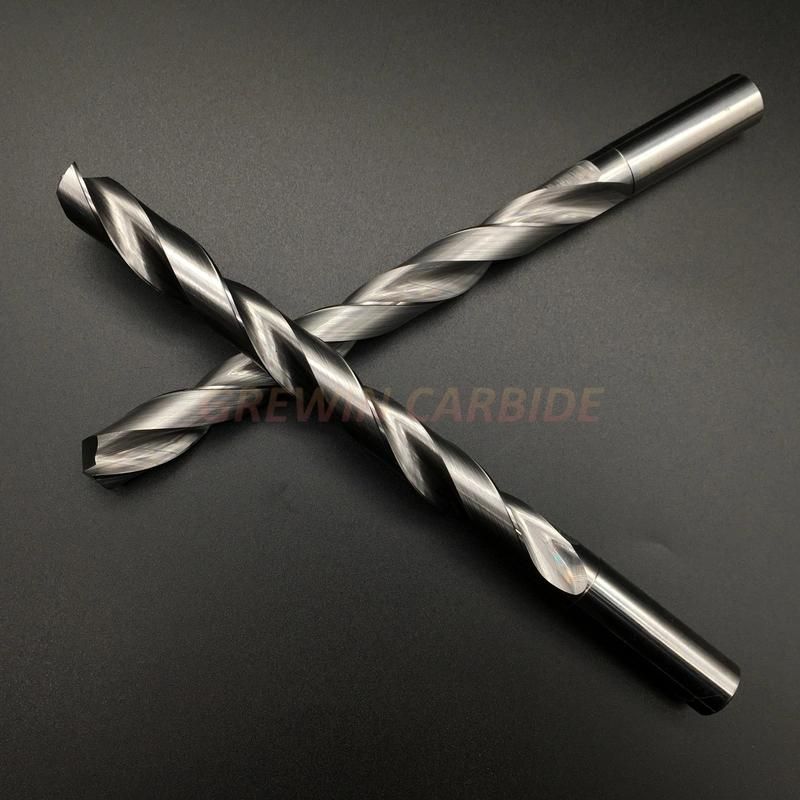

Gw Carbide - Solid Drill Bit with Coolant Through Hole with High Resistance and Good Quality

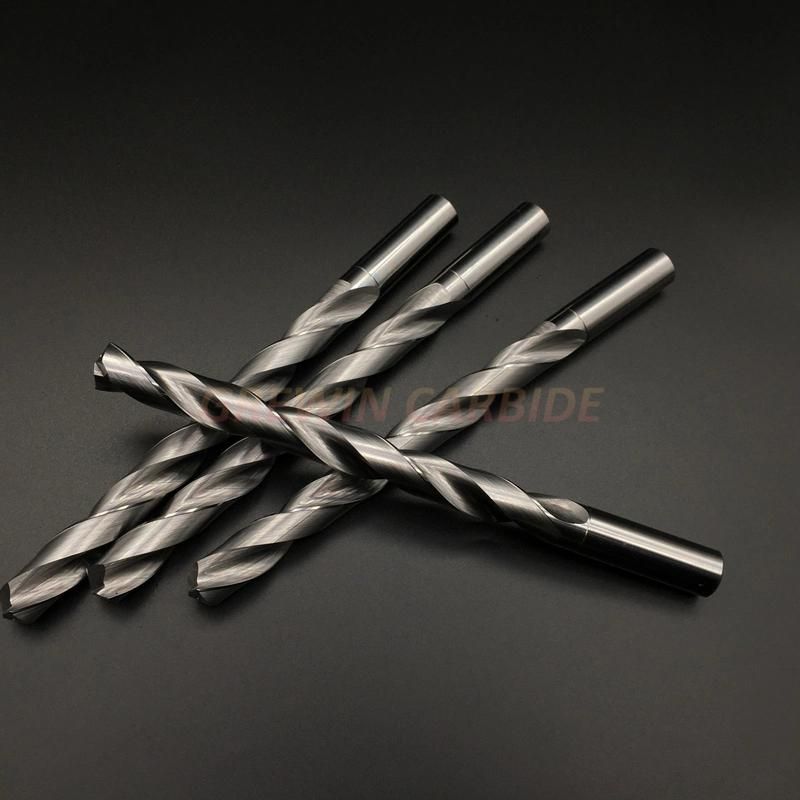

Gw Carbide - Solid Drill Bit with Coolant Through Hole with High Resistance and Good Quality

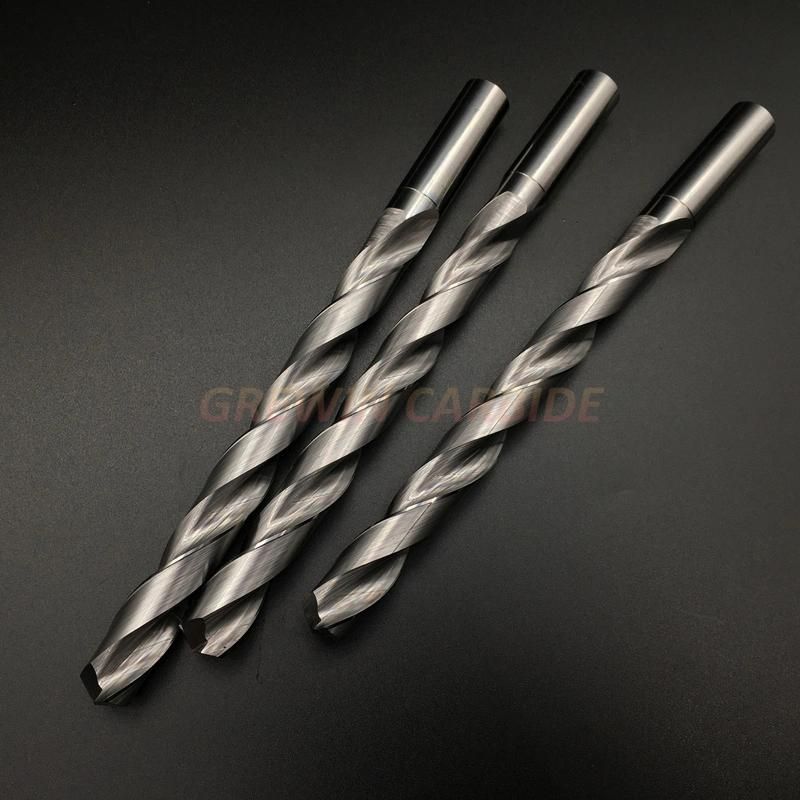

Gw Carbide - Solid Drill Bit with Coolant Through Hole with High Resistance and Good Quality

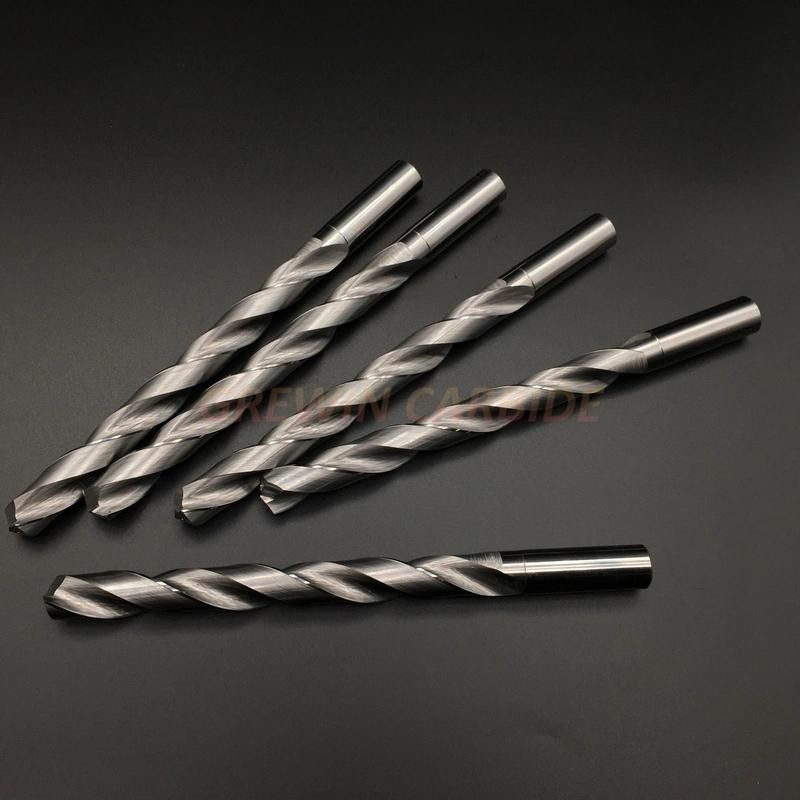

Gw Carbide - Solid Drill Bit with Coolant Through Hole with High Resistance and Good Quality
