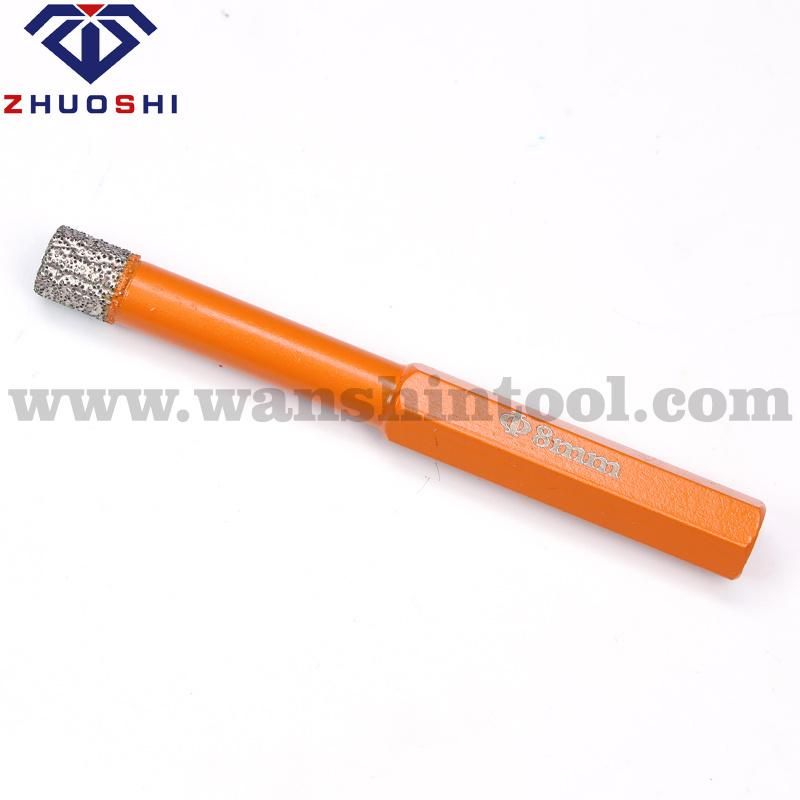

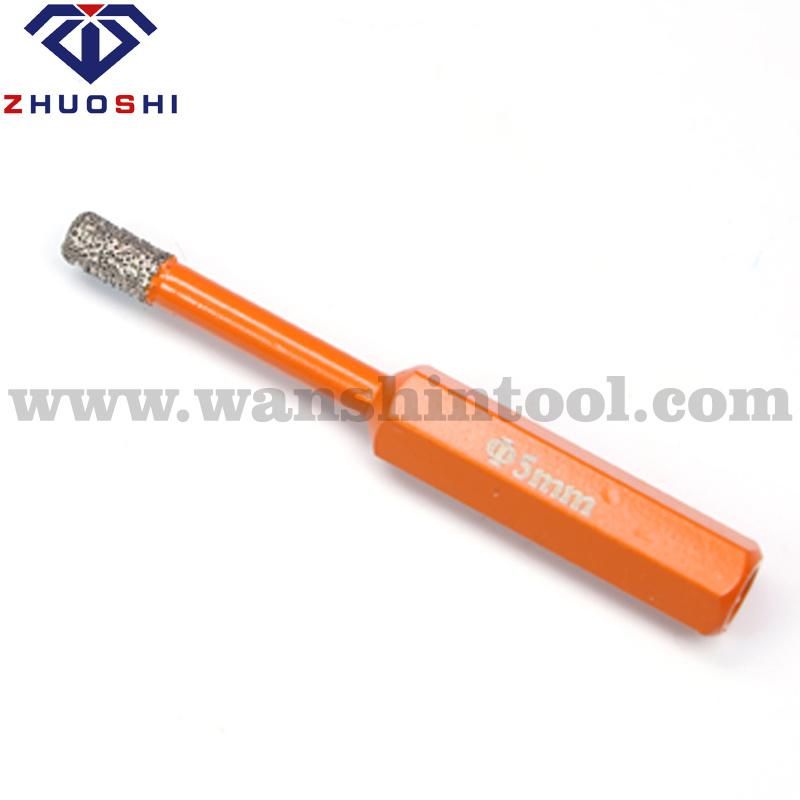

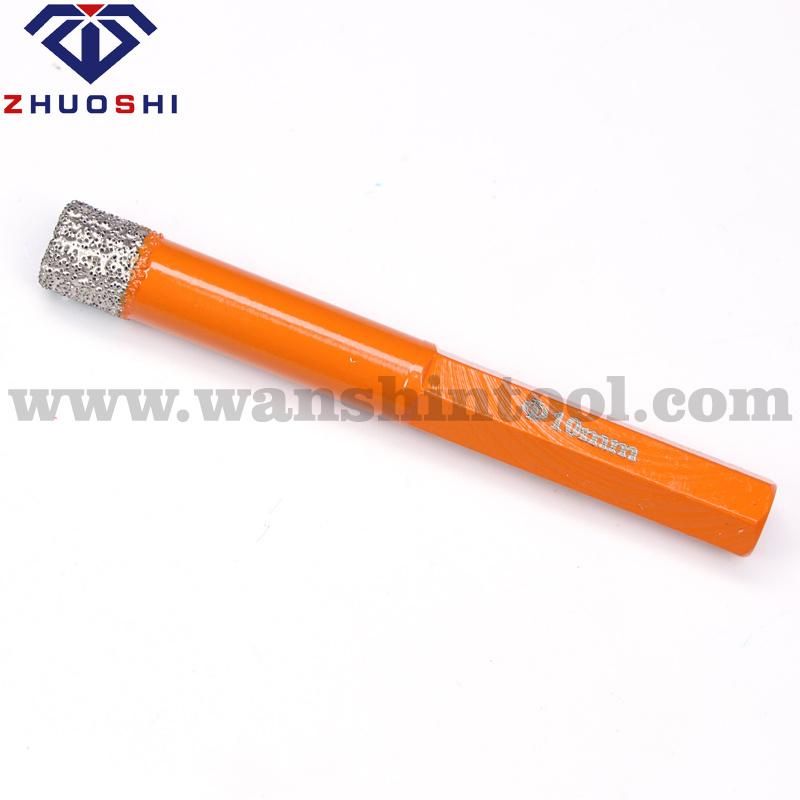

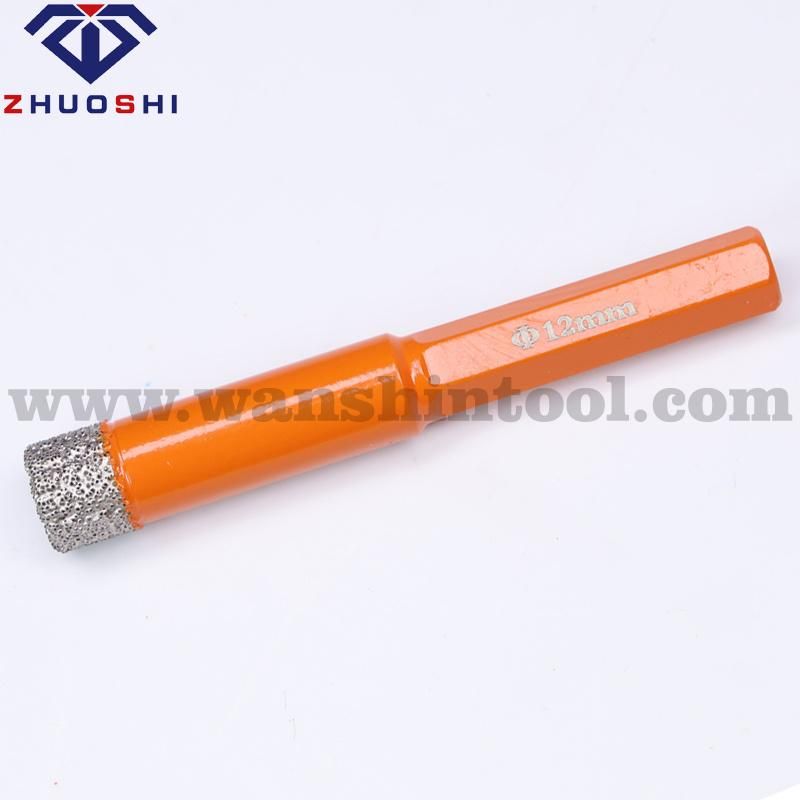

Premium Quality Vacuum Brazed Hex Drill Bit Porcelain Tile Bit
QUANZHOU ZHUOSHI SUPERHARD TOOL CO., LTD.- Customized：Non-Customized
- Standard：DIN
- Length：Stub-length
- Type：Core Drill Bit
- Material：Diamond
- Usage：Drilling Porcelain Granite
Base Info

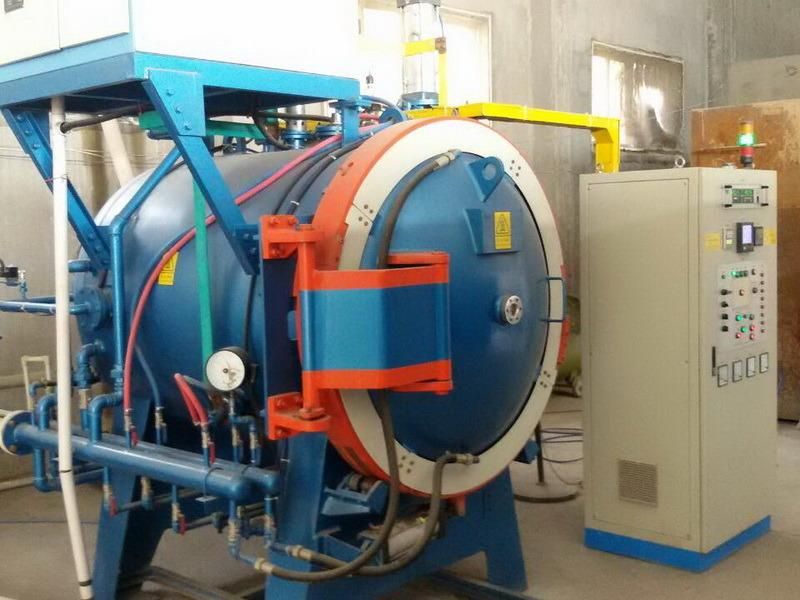

- Manufacturing Arts：Vacuum Sintered
- Machines：Stationary Drill, Cordless Drill, Power Drill
- Application：Dry Drill All Tiles, Porcealins, etc
- Optimum Rpm：Over 1, 500
- Feature：Self Cooling, Self Sharpening
- Speed：20s,Hole
- Life：30holes on 17mm Red Granite, Dry Drill
- Transport Package：Transparent Plastic Box
- Specification：5-125mm
- Trademark：WANSHIN
- Origin：China
- HS Code：82075010
- Production Capacity：20000PCS,Month
Description
Basic Info.
Manufacturing Arts Vacuum Sintered Machines Stationary Drill, Cordless Drill, Power Drill Application Dry Drill All Tiles, Porcealins, etc Optimum Rpm Over 1, 500 Feature Self Cooling, Self Sharpening Speed 20s/Hole Life 30holes on 17mm Red Granite, Dry Drill Transport Package Transparent Plastic Box Specification 5-125mm Trademark WANSHIN Origin China HS Code 82075010 Production Capacity 20000PCS/MonthProduct Description

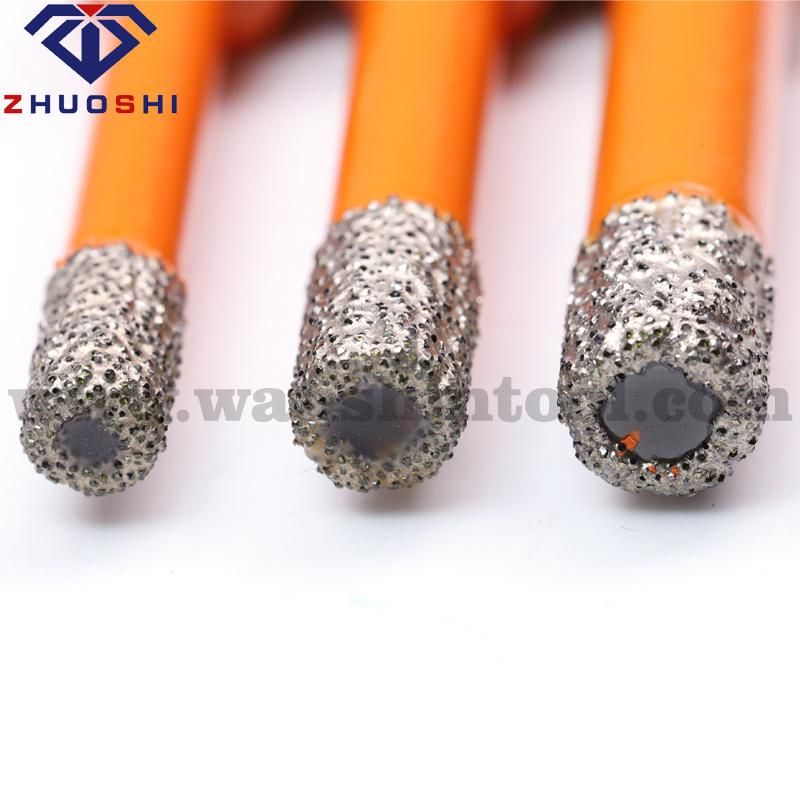

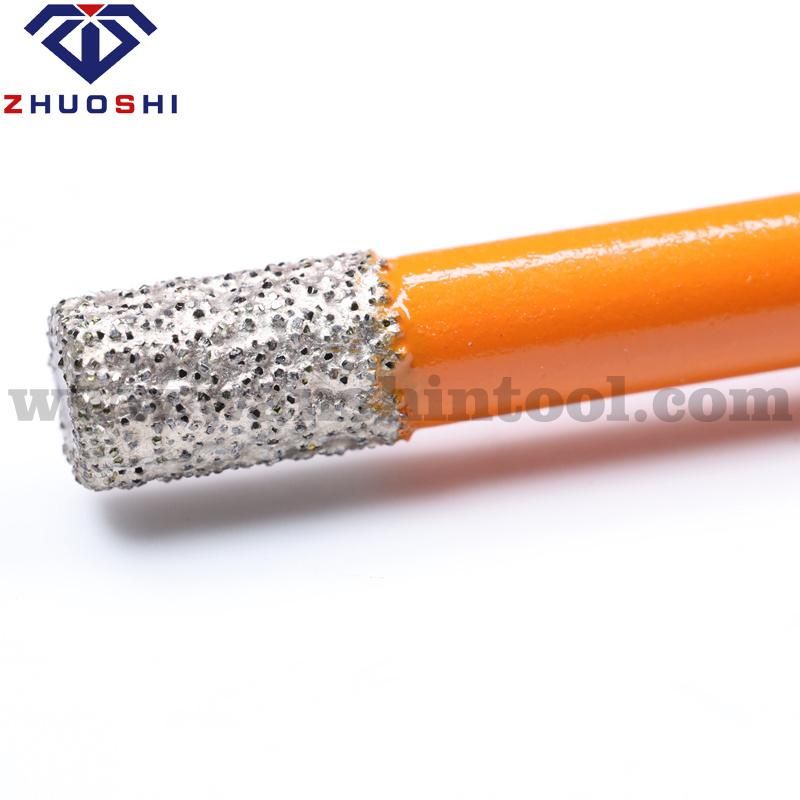

1. Vacuum brazed dry drill bits can be used in dry drilling of granites, marble, hard tiles, hard porcelain, etc.
2. It will perform much better if used in wet conditions; the life will be times more than the electroplated drill bits which can't be used in dry drilling. Drilling speed is fantastic fast.
3. Could be used wet or dry with cooling slots design for easier core removal when stuck.

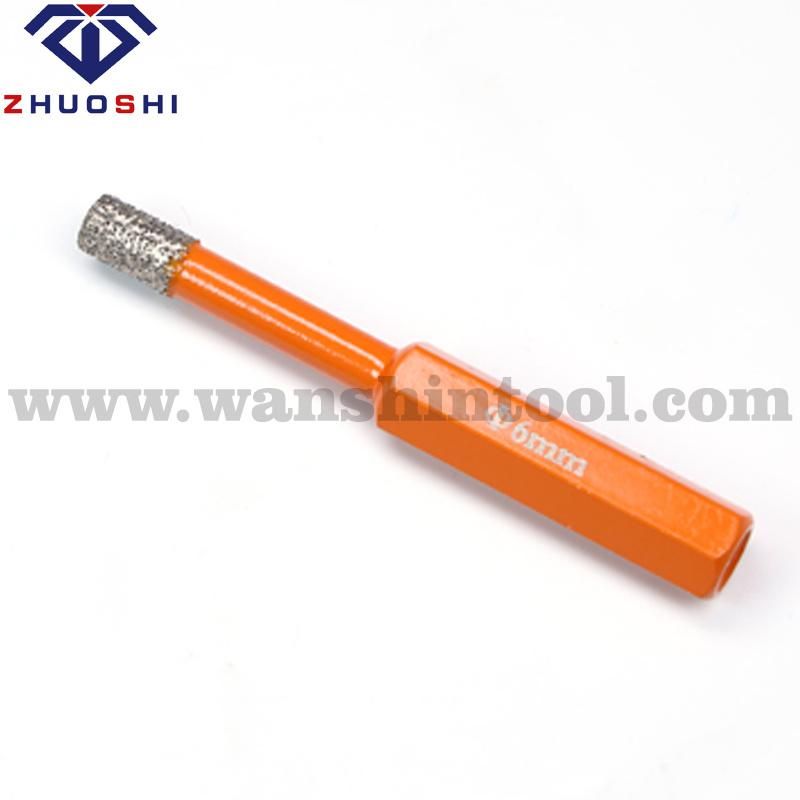

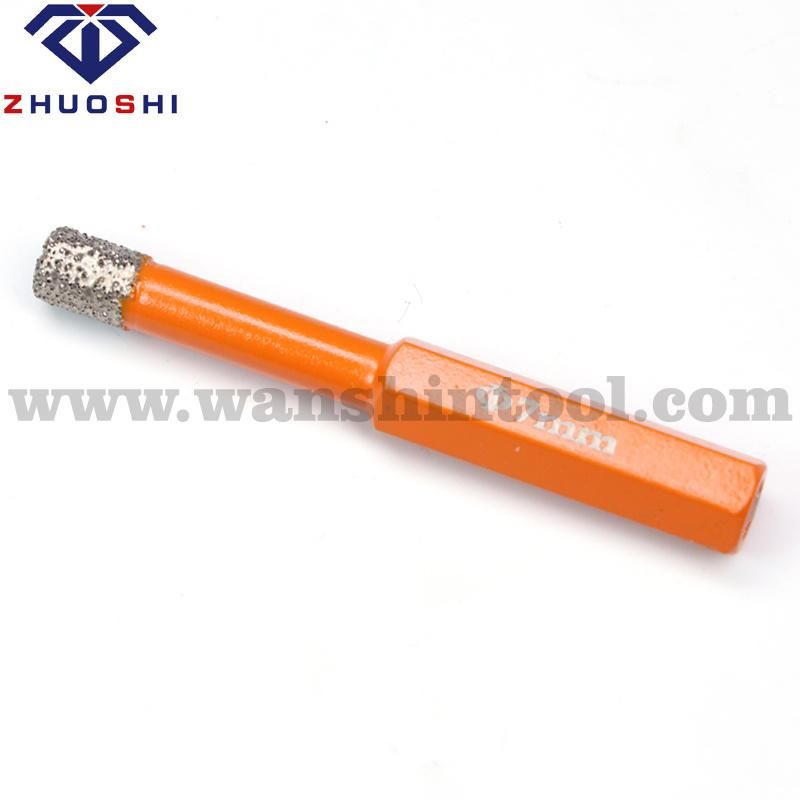

4. Drill bits in 6mm, 8mm are with top grade diamonds.
5. Diamond length:8-10mm
6. Self-cooling, self-sharpening(from 6mm-14mm)

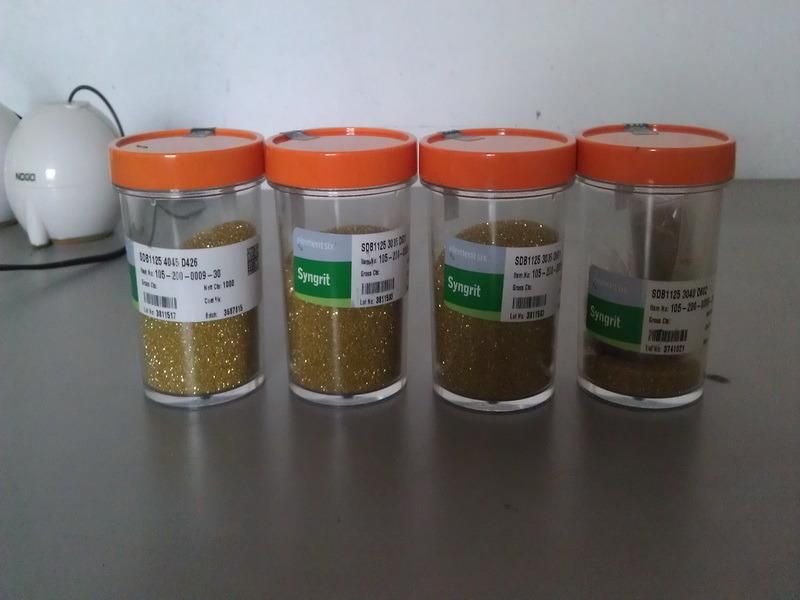

7. Diamond grit: 40#.
Our dry drill bits are widely accepted among many European countries, our dry drill bits are your best choice.
| Diameter(mm) | Segment Height(mm) | Overall length(mm) | Shank |
| 6 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 8 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 10 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 12 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 14 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 16 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 18 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 20 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 22 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 25 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 30 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 32 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 35 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 38 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 45 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 50 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 55 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 60 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 65 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 70 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 75 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 90 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 100 | 8-10 | 35/50/60/65 | Hexangular, Round |
| 120 | 8-10 | 35/50/60/65 | Hexangular, Round |
