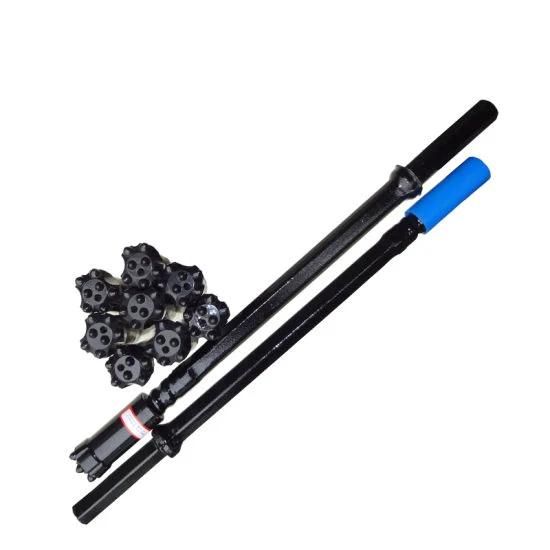

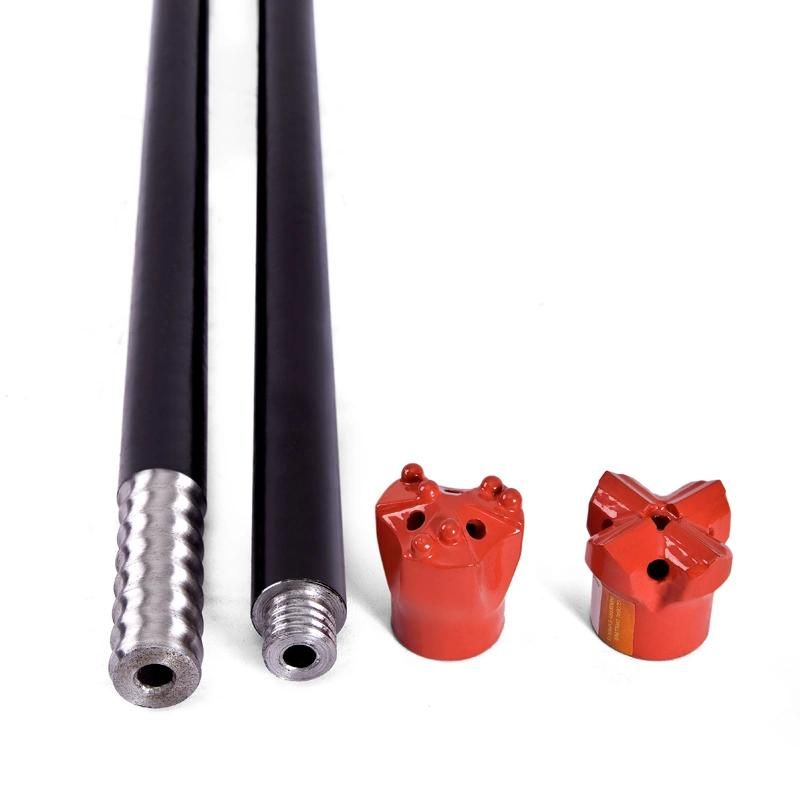

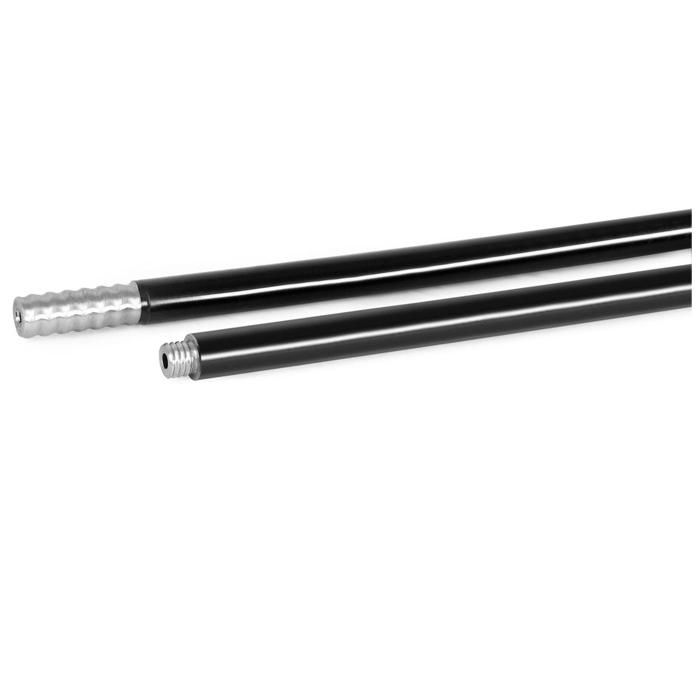

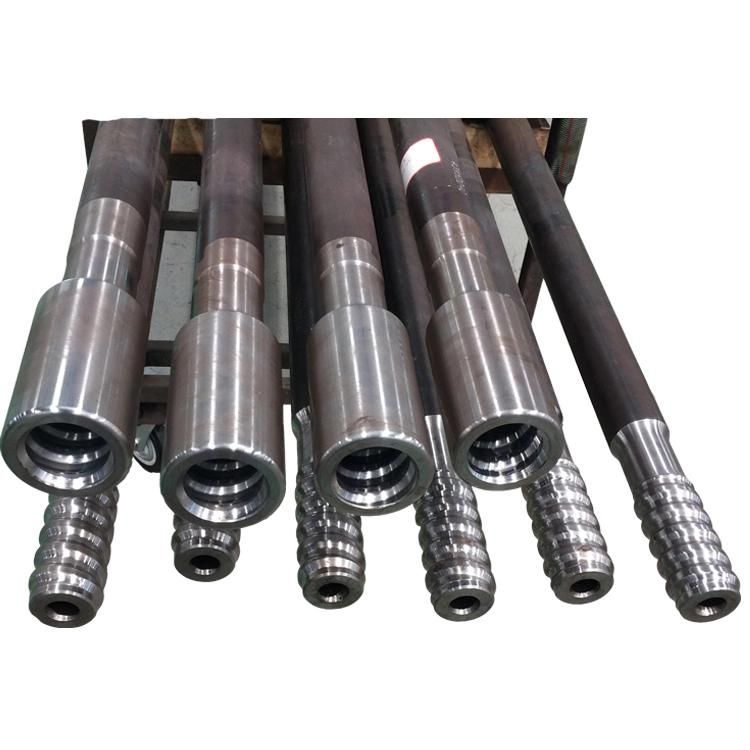

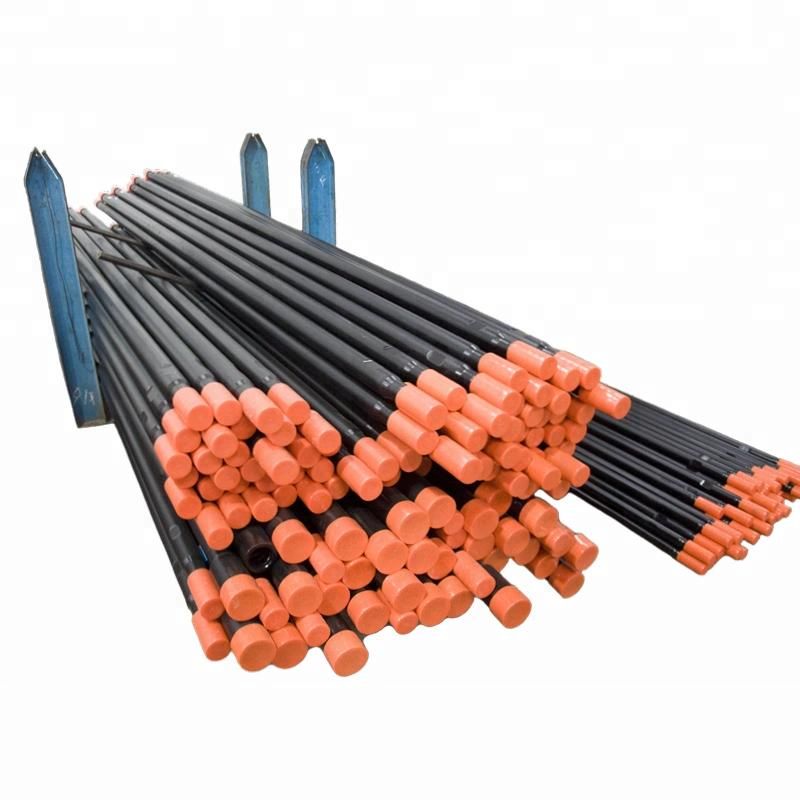

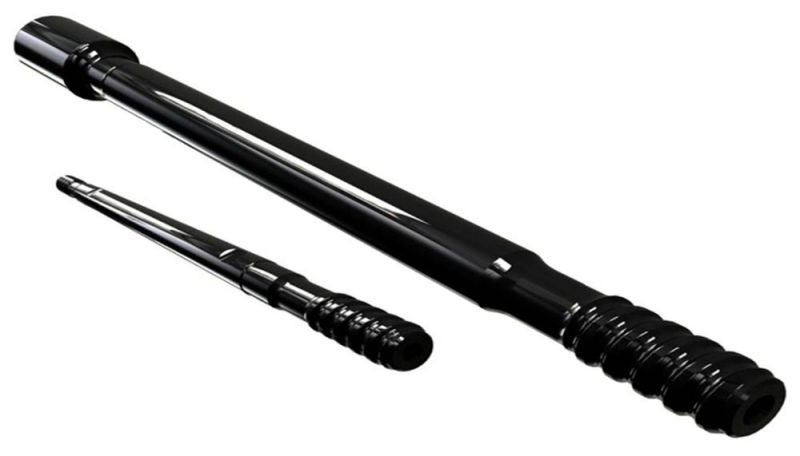

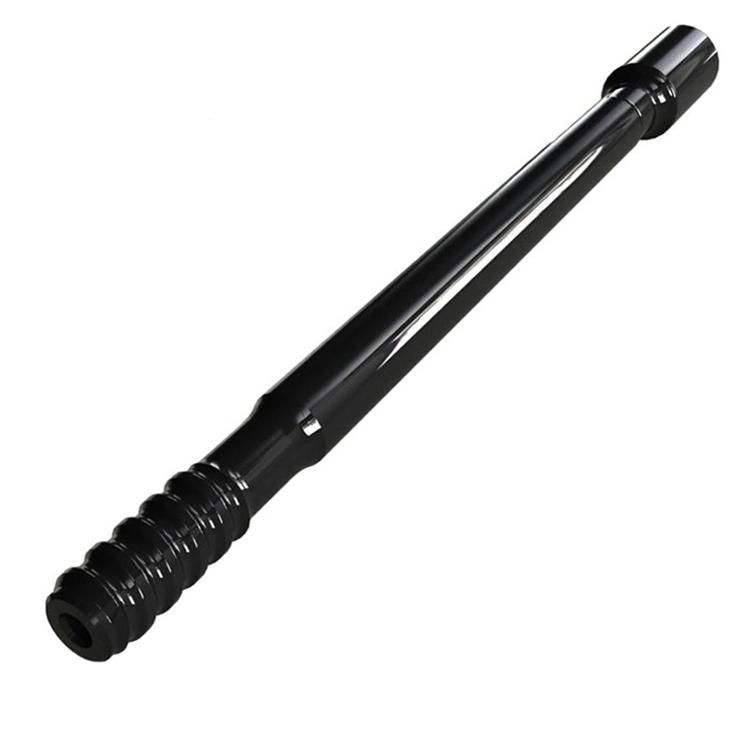

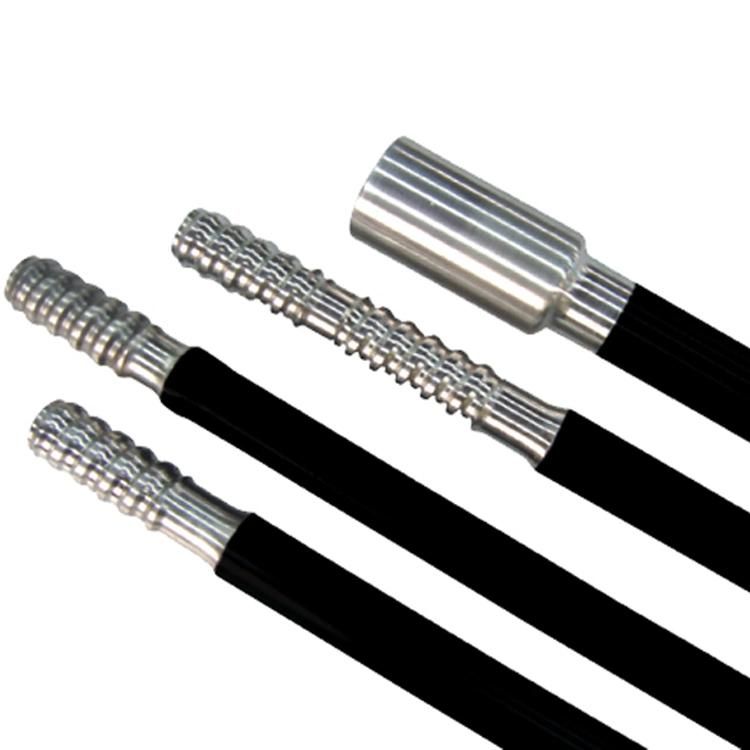

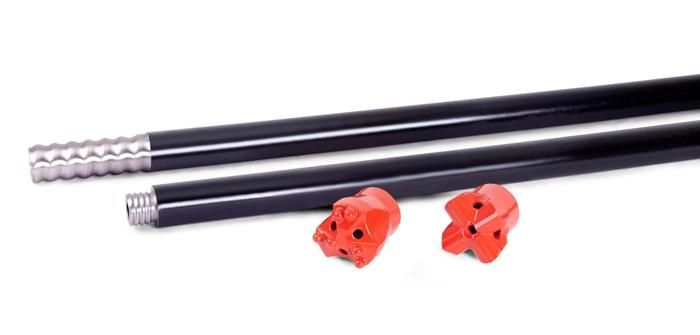

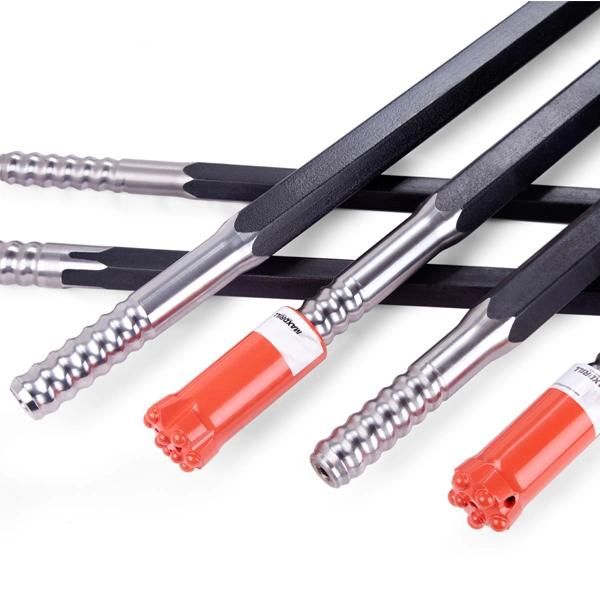

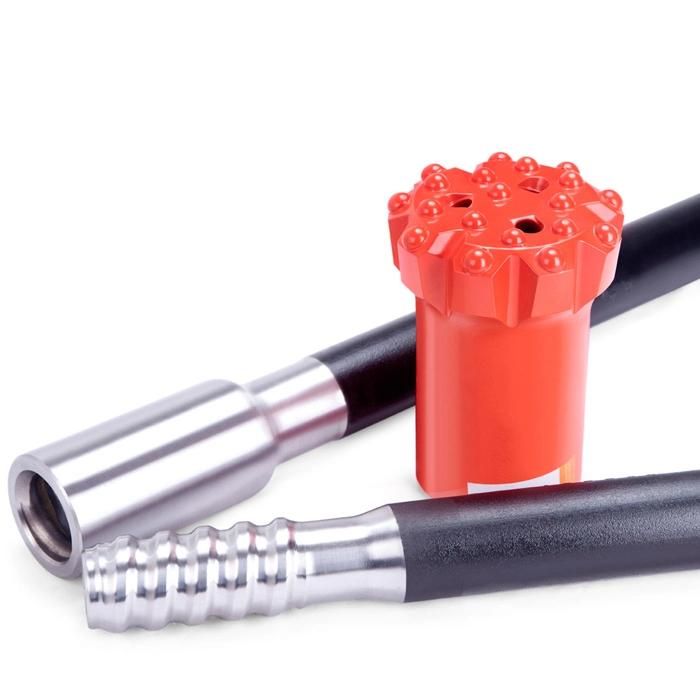

Thread Mining Rock Drill Rod for Drill Tool
Jining Enwei Intelligent Technology Co., Ltd.- Standard：RoHS, BS, DIN, JIS, AISI, API
- Length：300mm-1000mm
- Usage：Coal Mining, Ore Mining
- Material：Carbide
- Remarks：Circular,Hexagonal
- Transport Package：Wooden Case
Base Info
- Model NO.：BT
- Specification：300mm-1000mm
- Trademark：Enwei
- Origin：China
- HS Code：8431439000
- Production Capacity：500 Piece, Month
Description
22mm 7 / 8 " hex rod. 108mm 4 1 / 4 " shank.4°46' taper Length (mm) Part No. Weight (kg) 800 578-0108,11 2.9 1600 578-0116,11 5.4 2000 578-0120,11 6.6 2200 578-0122,11 7.1 2400 578-0124,11 7.8 3200 578-0132,11 10.2 3500 578-0135,11 11.1 4000 578-0140,11 12.7 7° taper Length (mm) Part No. Weight (kg) 400 573-0104,11 1.7 800 573-0108,11 2.9 1830 573-0118,11 6 2000 573-0120,11 6.5 2435 573-0124,11 7.8 3050 573-0131,11 9.9 3200 573-0132,11 10.1 4000 573-0140,11 12.7 11° taper Length (mm) Part No. Weight (kg) 610 579-0106,11 2.4 1220 579-0112,11 4.2 1525 579-0115,11 5 1830 579-0118,11 6.1 2000 579-0120,11 6.6 2435 579-0124,11 7.9 2600 579-0126,11 8.4 3200 579-0132,11 10.3 3655 579-0137,11 11.7 4000 579-0140,11 12.8 4800 579-0148,11 15.1 5600 579-0156,11 17.5 6400 579-0164,11 20 7200 579-0172,11 22.4 8000 579-0180,11 24.9 12° taper Length (mm) Part No. Weight (kg) 1220 577-0106,11 2.3 1525 577-0112,11 4.2 1830 577-0115,11 5.1 2000 577-0118,11 6.1 2435 577-0120,11 6.6 3050 577-0124,11 7.9 3200 577-0131,11 9.8 3655 577-0132,11 10.2 3965 577-0137,11 11.7 4800 577-0140,11 12.8 5600 577-0148,11 15.2 6400 577-0156,11 18.4 7200 577-0164,11 20 8000 577-0172,11 22 577-0180,11 24.8
