Eco Cost 2cutter Impact Masonry Drill Bit Cylindrical Shank for Concrete Stone Brick Cement
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：60mm to 600mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：3001
- Carbide Tip Type：Virgin Yg8
- Steel Shaft Type：40cr
- Flute Type：H
- Cutting Head：130degree Triangle
- Marking：Stamped
- Surface Treatment：Sandblasted
- Shank Type：Cylindrical
- Welding Type：Hfw. (High Frequency Welding)
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：3mm to 25mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 3001 Carbide Tip Type Virgin Yg8 Steel Shaft Type 40cr Flute Type H Cutting Head 130degree Triangle Marking Stamped Surface Treatment Sandblasted Shank Type Cylindrical Welding Type Hfw. (High Frequency Welding) Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

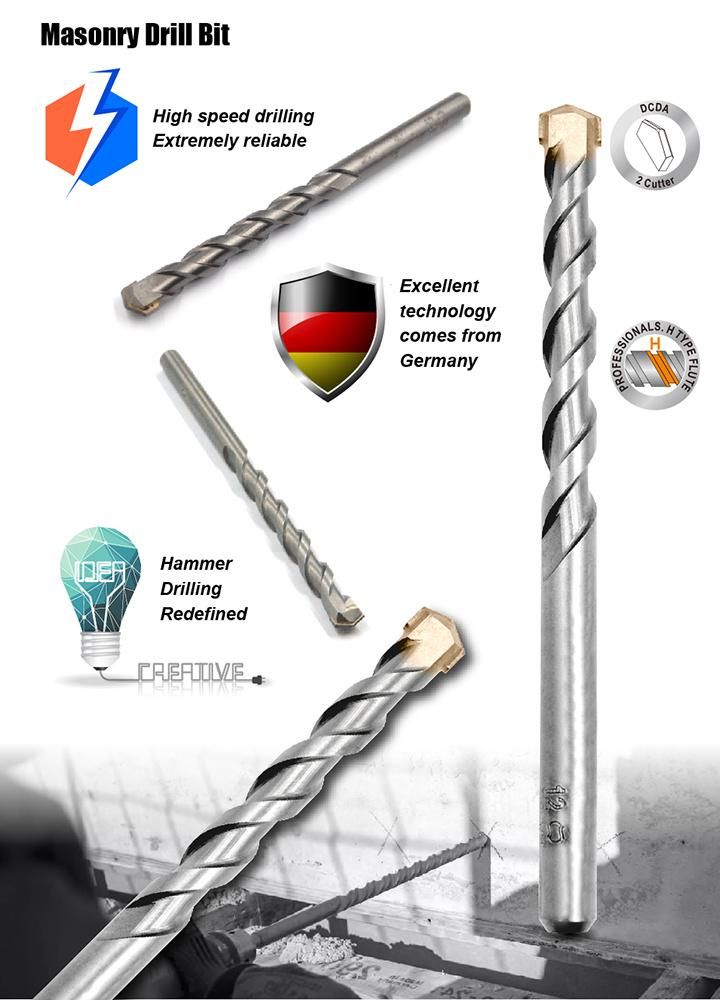

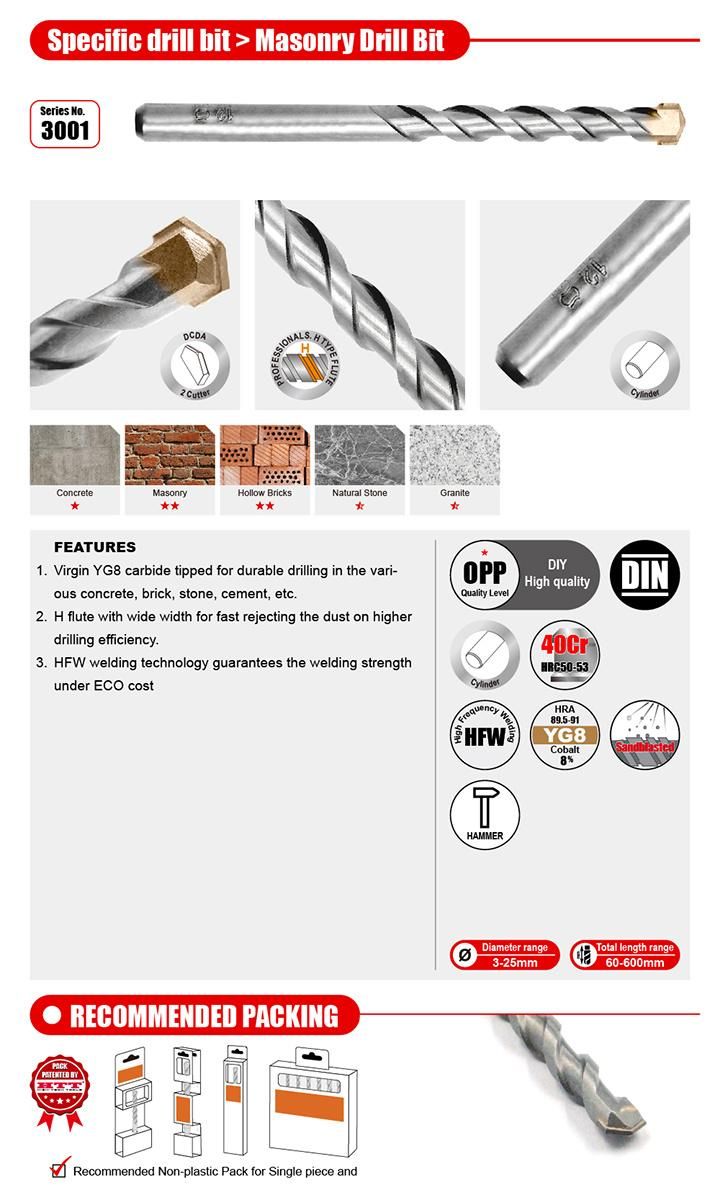

*Eco Masonry Drill Bit Cylindrical shank for drilling concrete brick cement etc.*Virgin YG8 carbide with the reasonable wear-resistance performance for DIY high quality demands .
*H type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*Other special sizes are also available on the customers' special request.
*Diameter 14mm to 25mm drill bits are with the reduced cylindrical shank diameter 10mm
| Item Number | Diameter(mm) | Working Lengt(mm) | Overall Length(mm) |
| 3001.030060 | 3 | 30 | 60 |
| 3001.030070 | 3 | 35 | 70 |
| 3001.030085 | 3 | 45 | 85 |
| 3001.035060 | 3.5 | 30 | 60 |
| 3001.035070 | 3.5 | 35 | 70 |
| 3001.040075 | 4 | 35 | 75 |
| 3001.040085 | 4 | 45 | 85 |
| 3001.040090 | 4 | 50 | 90 |
| 3001.040150 | 4 | 110 | 150 |
| 3001.045075 | 4.5 | 35 | 75 |
| 3001.045085 | 4.5 | 45 | 85 |
| 3001.050090 | 5 | 45 | 90 |
| 3001.050095 | 5 | 50 | 95 |
| 3001.050100 | 5 | 60 | 100 |
| 3001.050150 | 5 | 110 | 150 |
| 3001.050200 | 5 | 130 | 200 |
| 3001.050250 | 5 | 200 | 250 |
| 3001.050300 | 5 | 250 | 300 |
| 3001.050400 | 5 | 260 | 400 |
| 3001.050500 | 5 | 360 | 500 |
| 3001.055085 | 5.5 | 45 | 85 |
| 3001.055095 | 5.5 | 50 | 95 |
| 3001.055100 | 5.5 | 60 | 100 |
| 3001.055150 | 5.5 | 110 | 150 |
| 3001.060100 | 6 | 60 | 100 |
| 3001.060150 | 6 | 110 | 150 |
| 3001.060200 | 6 | 130 | 200 |
| 3001.060260 | 6 | 190 | 260 |
| 3001.060300 | 6 | 230 | 300 |
| 3001.060400 | 6 | 340 | 400 |
| 3001.060600 | 6 | 460 | 600 |
| 3001.065100 | 6.5 | 60 | 100 |
| 3001.065150 | 6.5 | 110 | 150 |
| 3001.065200 | 6.5 | 130 | 200 |
| 3001.065260 | 6.5 | 190 | 260 |
| 3001.065300 | 6.5 | 230 | 300 |
| 3001.065400 | 6.5 | 340 | 400 |
| 3001.070100 | 7 | 60 | 100 |
| 3001.070120 | 7 | 80 | 120 |
| 3001.070150 | 7 | 110 | 150 |
| 3001.070200 | 7 | 130 | 200 |
| 3001.070300 | 7 | 230 | 300 |
| 3001.070400 | 7 | 340 | 400 |
| 3001.070500 | 7 | 360 | 500 |
| 3001.075100 | 7.5 | 60 | 100 |
| 3001.075120 | 7.5 | 80 | 120 |
| 3001.075150 | 7.5 | 110 | 150 |
| 3001.080120 | 8 | 80 | 120 |
| 3001.080150 | 8 | 110 | 150 |
| 3001.080200 | 8 | 130 | 200 |
| 3001.080260 | 8 | 190 | 260 |
| 3001.080300 | 8 | 230 | 300 |
| 3001.080400 | 8 | 340 | 400 |
| 3001.080600 | 8 | 460 | 600 |
| 3001.085120 | 8.5 | 80 | 120 |
| 3001.085150 | 8.5 | 110 | 150 |
| 3001.085200 | 8.5 | 130 | 200 |
| 3001.090120 | 9 | 80 | 120 |
| 3001.090150 | 9 | 110 | 150 |
| 3001.095120 | 9 | 80 | 120 |
| 3001.095150 | 9 | 110 | 150 |
| 3001.100120 | 10 | 80 | 120 |
| 3001.100150 | 10 | 110 | 150 |
| 3001.100200 | 10 | 135 | 200 |
| 3001.100260 | 10 | 190 | 260 |
| 3001.100300 | 10 | 230 | 300 |
| 3001.100400 | 10 | 340 | 400 |
| 3001.100600 | 10 | 460 | 600 |
| 3001.110120 | 11 | 80 | 120 |
| 3001.110150 | 11 | 110 | 150 |
| 3001.110200 | 11 | 135 | 200 |
| 3001.115120 | 11.5 | 80 | 120 |
| 3001.115150 | 11.5 | 110 | 150 |
| 3001.115200 | 11.5 | 135 | 200 |
| 3001.120130 | 12 | 80 | 130 |
| 3001.120150 | 12 | 90 | 150 |
| 3001.120200 | 12 | 150 | 200 |
| 3001.120260 | 12 | 150 | 260 |
| 3001.120300 | 12 | 230 | 300 |
| 3001.120400 | 12 | 340 | 400 |
| 3001.120600 | 12 | 460 | 600 |
| 3001.121000 | 12 | 900 | 1000 |
| 3001.125130 | 12.5 | 80 | 130 |
| 3001.125150 | 12.5 | 90 | 150 |
| 3001.125200 | 12.5 | 150 | 200 |
| 3001.130150 | 13 | 90 | 150 |
| 3001.130200 | 13 | 150 | 200 |
| 3001.130300 | 13 | 230 | 300 |
| 3001.135150 | 13.5 | 90 | 150 |
| 3001.135200 | 13.5 | 150 | 200 |
| 3001.140150 | 14 | 90 | 150 |
| 3001.140200 | 14 | 135 | 200 |
| 3001.140260 | 14 | 200 | 260 |
| 3001.140300 | 14 | 230 | 300 |
| 3001.140400 | 14 | 340 | 400 |
| 3001.140600 | 14 | 460 | 600 |
| 3001.145150 | 14.5 | 90 | 150 |
| 3001.145200 | 14.5 | 135 | 200 |
| 3001.150150 | 15 | 90 | 150 |
| 3001.150200 | 15 | 135 | 200 |
| 3001.160150 | 16 | 90 | 150 |
| 3001.160200 | 16 | 135 | 200 |
| 3001.160250 | 16 | 200 | 260 |
| 3001.160300 | 16 | 230 | 300 |
| 3001.160400 | 16 | 340 | 400 |
| 3001.160600 | 16 | 460 | 600 |
| 3001.180160 | 18 | 100 | 160 |
| 3001.180200 | 18 | 135 | 200 |
| 3001.180300 | 18 | 230 | 300 |
| 3001.180400 | 18 | 340 | 400 |
| 3001.180600 | 18 | 460 | 600 |
| 3001.190160 | 19 | 100 | 160 |
| 3001.190200 | 19 | 135 | 200 |
| 3001.200160 | 20 | 100 | 160 |
| 3001.200200 | 20 | 135 | 200 |
| 3001.200260 | 20 | 200 | 260 |
| 3001.200300 | 20 | 230 | 300 |
| 3001.200400 | 20 | 340 | 400 |
| 3001.200600 | 20 | 460 | 600 |
| 3001.220160 | 22 | 100 | 160 |
| 3001.220200 | 22 | 135 | 200 |
| 3001.220300 | 22 | 230 | 300 |
| 3001.220400 | 22 | 340 | 400 |
| 3001.220600 | 22 | 460 | 600 |
| 3001.250160 | 25 | 100 | 160 |
| 3001.250200 | 25 | 135 | 200 |
| 3001.250300 | 25 | 230 | 300 |
| 3001.250400 | 25 | 340 | 400 |
| 3001.250600 | 25 | 460 | 600 |
