• Model NO.：DHD3.5
• Processing：Forging
• Color：Red, Black, Yellow, White
• Subject：Button Taper Bits for Rock Drill
• Transport Package：Wood Package
• Specification：CE, SGS, ISO9001
• Trademark：PRODRILL
• Origin：China
• HS Code：82071990
• Production Capacity：10000pec,Months

Basic Info.

Model NO. DHD3.5 Processing Forging Color Red, Black, Yellow, White Subject Button Taper Bits for Rock Drill Transport Package Wood Package Specification CE, SGS, ISO9001 Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 10000pec/Months

Product Description

Made with high quality of raw material through special heat treatment, especially, tungsten carbide of tapered button bits are from Boart long year, widely applied in Hand Hold ( short-hole) drilling system for dimensional stone quarrying. At now, we are exporting the huge qty of Q7- 33- 7 22-80, Q9 -45 -12 22- 71 for Indian quarry and Norway, Finland quarry.

Diameter of bits from 30mm to 50mm with 4, 6, 7, 11, 12 degree, premium alloy tapered drill steel with Hexagonal. 22mm and Hexagonal. 25mm, The deliver capacity are very strong and can completely meet customer's requirements on delivery design, number of buttons is 4, 5, 6, 7, 8, 9, 7 buttons is very popular for hold held (short holes ) and blast drilling system.



Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters

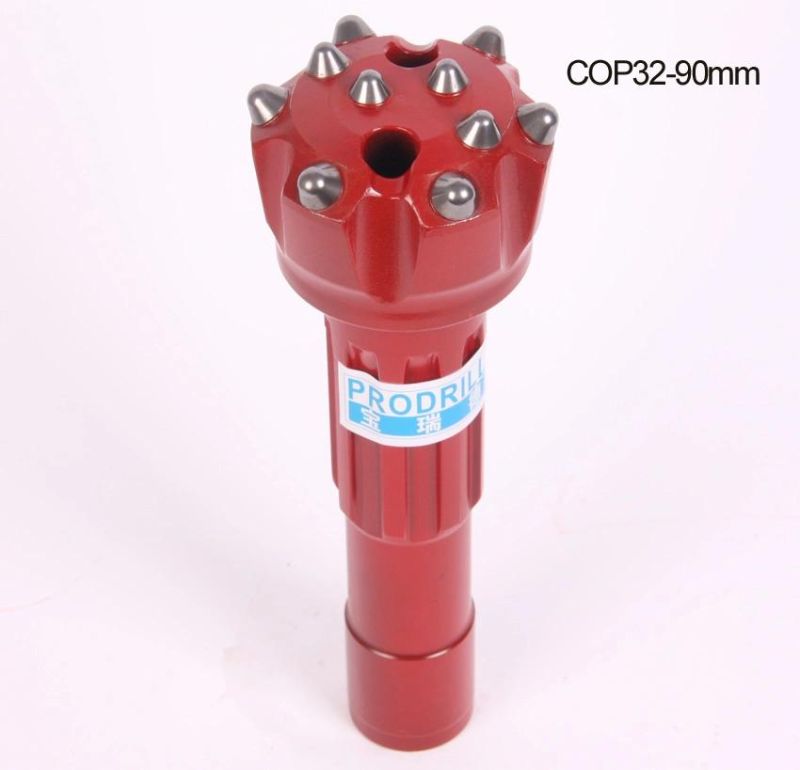

Product Name:	DTH drill bits
Description:	DTH drill bits are used for blast hole drilling and water well drilling projects. Working with DTH hammer, mainly applied in Mining, Marble quarry or well drilling and other construction projects.
Material:	High quality carbide + High quality carbon steel
MOQ:	5pcs
Compatibility Series:	COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc



Specification:	Diameter: (mm)	Weight: (kg)
Low air pressure DTH bits CIR type	68 ~ 200	2.6 ~ 48
Middle air pressure BR & COP type	76 ~ 110	3.8 ~ 15
3 inch high Air pressure DTH bits	85 / 90 / 95 / 100 / 105	4.2 ~ 5.5
4 inch high Air pressure DTH bits	105 / 110 / 115 / 120 / 127	9 ~ 12
5 inch high Air pressure DTH bits	133 / 140 / 146 / 152 / 165	15 ~ 18.5
6 inch high Air pressure DTH bits	152 / 165 / 178 / 190 / 203	26 ~ 36
8 inch high Air pressure DTH bits	195 / 203 / 216 / 254 / 305	33 ~ 95

Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory

About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
.
