• Model NO.：30012
• Carbide Tip Type：Virgin Yg8
• Steel Shaft Type：40cr
• Flute Type：U
• Cutting Head：130degree Triangle
• Marking：Stamped
• Surface Treatment：Sandblasted
• Shank Type：Cylindrical
• Welding Type：Hfw. (High Frequency Welding)
• Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
• Specification：3mm to 25mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：4800000PCS,Year

Basic Info.

Model NO. 30012 Carbide Tip Type Virgin Yg8 Steel Shaft Type 40cr Flute Type U Cutting Head 130degree Triangle Marking Stamped Surface Treatment Sandblasted Shank Type Cylindrical Welding Type Hfw. (High Frequency Welding) Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/Year

Product Description

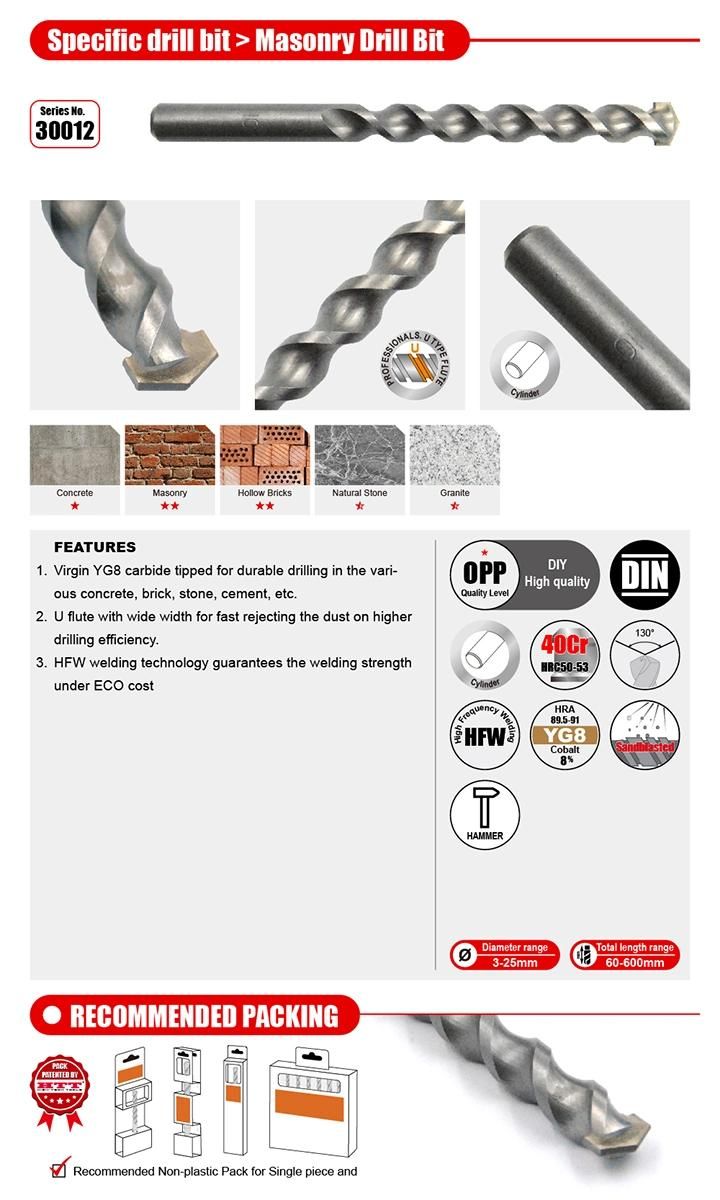

*Eco Masonry Drill Bit Cylindrical shank for drilling concrete brick cement etc.

*Virgin YG8 carbide with the reasonable wear-resistance performance for DIY high quality demands .

*U type of wider flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.



*Other special sizes are also available on the customers' special requests.
*Diameter 14mm to 25mm drill bits are with the reduced cylindrical shank diameter 10mm

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
30012.030060	3	30	60
30012.030070	3	35	70
30012.030085	3	45	85
30012.035060	3.5	30	60
30012.035070	3.5	35	70
30012.040075	4	35	75
30012.040085	4	45	85
30012.040090	4	50	90
30012.040150	4	110	150
30012.045075	4.5	35	75
30012.045085	4.5	45	85
30012.050090	5	45	90
30012.050095	5	50	95
30012.050100	5	60	100
30012.050150	5	110	150
30012.050200	5	130	200
30012.050250	5	200	250
30012.050300	5	250	300
30012.050400	5	260	400
30012.050500	5	360	500
30012.055085	5.5	45	85
30012.055095	5.5	50	95
30012.055100	5.5	60	100
30012.055150	5.5	110	150
30012.060100	6	60	100
30012.060150	6	110	150
30012.060200	6	130	200
30012.060260	6	190	260
30012.060300	6	230	300
30012.060400	6	340	400
30012.060600	6	460	600
30012.065100	6.5	60	100
30012.065150	6.5	110	150
30012.065200	6.5	130	200
30012.065260	6.5	190	260
30012.065300	6.5	230	300
30012.065400	6.5	340	400
30012.070100	7	60	100
30012.070120	7	80	120
30012.070150	7	110	150
30012.070200	7	130	200
30012.070300	7	230	300
30012.070400	7	340	400
30012.070500	7	360	500
30012.075100	7.5	60	100
30012.075120	7.5	80	120
30012.075150	7.5	110	150
30012.080120	8	80	120
30012.080150	8	110	150
30012.080200	8	130	200
30012.080260	8	190	260
30012.080300	8	230	300
30012.080400	8	340	400
30012.080600	8	460	600
30012.085120	8.5	80	120
30012.085150	8.5	110	150
30012.085200	8.5	130	200
30012.090120	9	80	120
30012.090150	9	110	150
30012.095120	9	80	120
30012.095150	9	110	150
30012.100120	10	80	120
30012.100150	10	110	150
30012.100200	10	135	200
30012.100260	10	190	260
30012.100300	10	230	300
30012.100400	10	340	400
30012.100600	10	460	600
30012.110120	11	80	120
30012.110150	11	110	150
30012.110200	11	135	200
30012.115120	11.5	80	120
30012.115150	11.5	110	150
30012.115200	11.5	135	200
30012.120130	12	80	130
30012.120150	12	90	150
30012.120200	12	150	200
30012.120260	12	150	260
30012.120300	12	230	300
30012.120400	12	340	400
30012.120600	12	460	600
30012.121000	12	900	1000
30012.125130	12.5	80	130
30012.125150	12.5	90	150
30012.125200	12.5	150	200
30012.130150	13	90	150
30012.130200	13	150	200
30012.130300	13	230	300
30012.135150	13.5	90	150
30012.135200	13.5	150	200
30012.140150	14	90	150
30012.140200	14	135	200
30012.140260	14	200	260
30012.140300	14	230	300
30012.140400	14	340	400
30012.140600	14	460	600
30012.145150	14.5	90	150
30012.145200	14.5	135	200
30012.150150	15	90	150
30012.150200	15	135	200
30012.160150	16	90	150
30012.160200	16	135	200
30012.160250	16	200	260
30012.160300	16	230	300
30012.160400	16	340	400
30012.160600	16	460	600
30012.180160	18	100	160
30012.180200	18	135	200
30012.180300	18	230	300
30012.180400	18	340	400
30012.180600	18	460	600
30012.190160	19	100	160
30012.190200	19	135	200
30012.200160	20	100	160
30012.200200	20	135	200
30012.200260	20	200	260
30012.200300	20	230	300
30012.200400	20	340	400
30012.200600	20	460	600
30012.220160	22	100	160
30012.220200	22	135	200
30012.220300	22	230	300
30012.220400	22	340	400
30012.220600	22	460	600
30012.250160	25	100	160
30012.250200	25	135	200
30012.250300	25	230	300
30012.250400	25	340	400
30012.250600	25	460	600
