Pgm Premium Quality Tct Stone&Concrete Drill Bit U Flute DIN Cylindrical Shank for Various Concrete Brick Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：60mm to 600mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：3328
- Carbide Type：Ceratizit Bc10
- Steel Shaft Type：40cr
- Flute Type：U
- Cutting Head：Triangle
- Marking：Stamped Marking
- Surface Treatment：Shot-Peened
- Shank Type：Cylindrical
- Welding Type：AVS (Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：3mm to 25mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 3328 Carbide Type Ceratizit Bc10 Steel Shaft Type 40cr Flute Type U Cutting Head Triangle Marking Stamped Marking Surface Treatment Shot-Peened Shank Type Cylindrical Welding Type AVS (Automatic Vacuum Soldering) Certificate Pgm Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

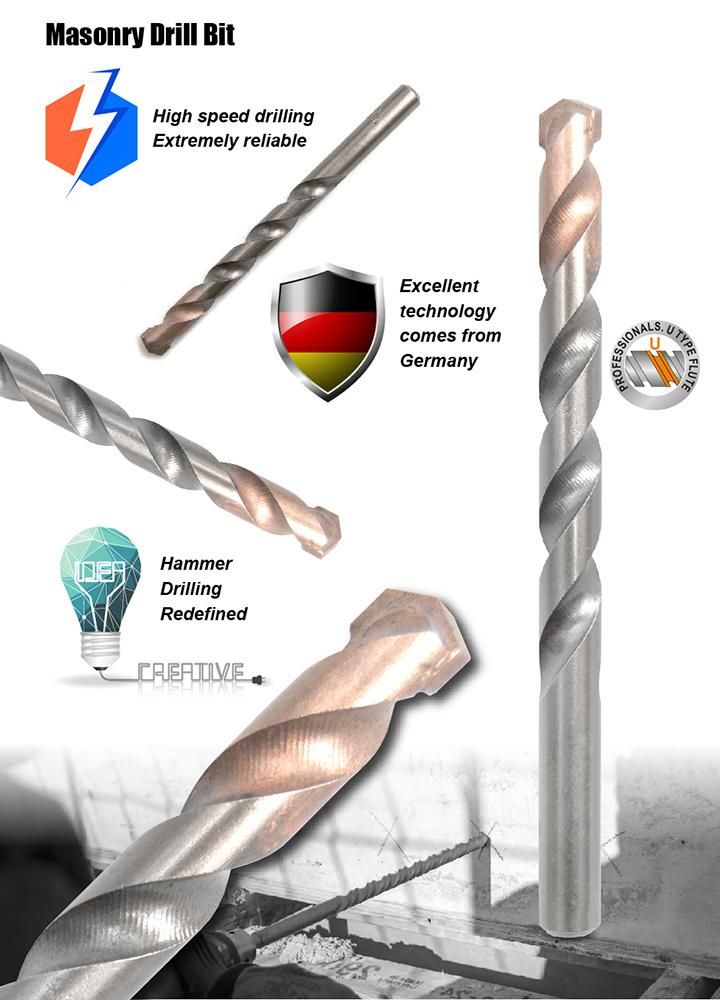

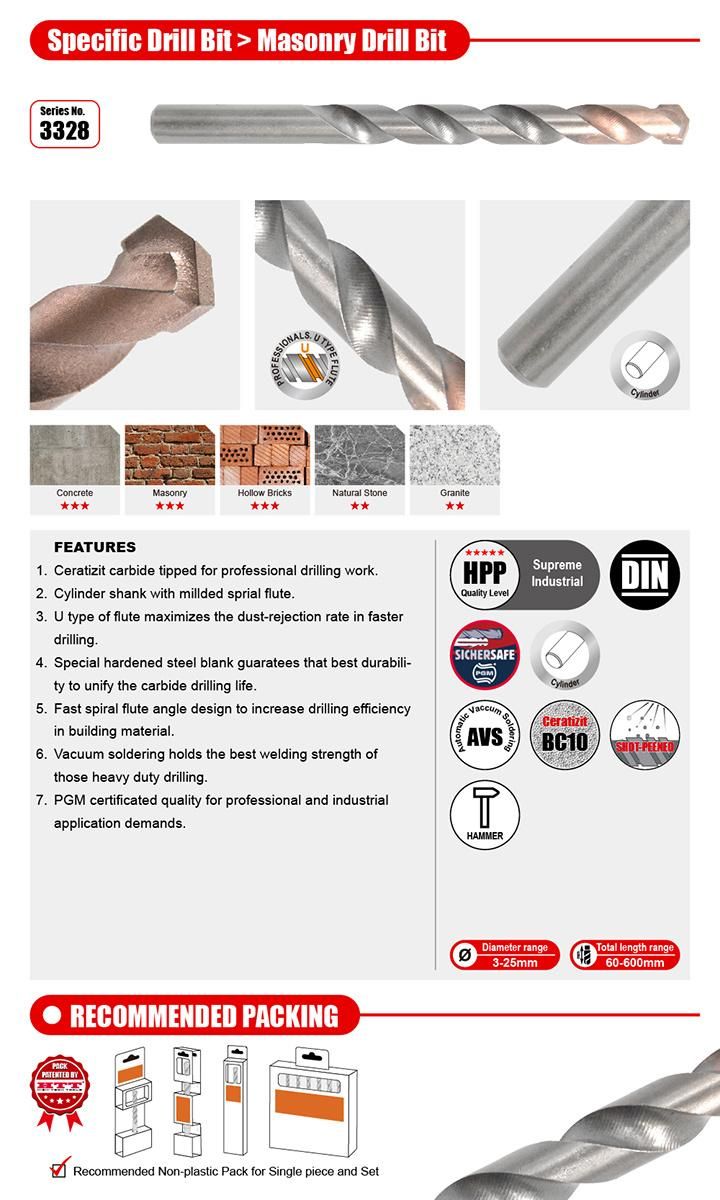

*PGM Certificated Premium Quality Concrete Drill Bit Cylindrical shank for drilling concrete brick block cement.*Ceratizit BC10 of carbide tip to be with extra higher wear-resistance for concrete and masonry drilling work
*U type of wider flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*PGM certificated quality and standard sizes to meet the industrial application demands.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
| 3328.030060 | 3 | 30 | 60 | 2.8 |
| 3328.030070 | 3 | 35 | 70 | 2.8 |
| 3328.030085 | 3 | 45 | 85 | 2.8 |
| 3328.040075 | 4 | 35 | 75 | 3.75 |
| 3328.040085 | 4 | 45 | 85 | 3.75 |
| 3328.040090 | 4 | 50 | 90 | 3.75 |
| 3328.040150 | 4 | 110 | 150 | 3.75 |
| 3328.050090 | 5 | 45 | 90 | 4.5 |
| 3328.050095 | 5 | 50 | 95 | 4.5 |
| 3328.050100 | 5 | 60 | 100 | 4.5 |
| 3328.050150 | 5 | 110 | 150 | 4.5 |
| 3328.050250 | 5 | 200 | 250 | 4.5 |
| 3328.050300 | 5 | 250 | 300 | 4.5 |
| 3328.050400 | 5 | 260 | 400 | 4.5 |
| 3328.050500 | 5 | 360 | 500 | 4.5 |
| 3328.055095 | 5.5 | 50 | 95 | 5 |
| 3328.055100 | 5.5 | 60 | 100 | 5 |
| 3328.055150 | 5.5 | 110 | 150 | 5 |
| 3328.060100 | 6 | 60 | 100 | 5.5 |
| 3328.060150 | 6 | 110 | 150 | 5.5 |
| 3328.060200 | 6 | 130 | 200 | 5.5 |
| 3328.060260 | 6 | 190 | 260 | 5.5 |
| 3328.060300 | 6 | 230 | 300 | 5.5 |
| 3328.060400 | 6 | 340 | 400 | 5.5 |
| 3328.060600 | 6 | 460 | 600 | 5.5 |
| 3328.065100 | 6.5 | 60 | 100 | 6 |
| 3328.065150 | 6.5 | 110 | 150 | 6 |
| 3328.065200 | 6.5 | 130 | 200 | 6 |
| 3328.065260 | 6.5 | 190 | 260 | 6 |
| 3328.065300 | 6.5 | 230 | 300 | 6 |
| 3328.065400 | 6.5 | 340 | 400 | 6 |
| 3328.070100 | 7 | 60 | 100 | 6.5 |
| 3328.070120 | 7 | 80 | 120 | 6.5 |
| 3328.070150 | 7 | 110 | 150 | 6.5 |
| 3328.070300 | 7 | 230 | 300 | 6.5 |
| 3328.070400 | 7 | 340 | 400 | 6.5 |
| 3328.070500 | 7 | 360 | 500 | 6.5 |
| 3328.080120 | 8 | 80 | 120 | 7.6 |
| 3328.080150 | 8 | 110 | 150 | 7.6 |
| 3328.080200 | 8 | 130 | 200 | 7.6 |
| 3328.080260 | 8 | 190 | 260 | 7.6 |
| 3328.080300 | 8 | 230 | 300 | 7.6 |
| 3328.080400 | 8 | 340 | 400 | 7.6 |
| 3328.080600 | 8 | 460 | 600 | 7.6 |
| 3328.090120 | 9 | 80 | 120 | 7.6 |
| 3328.090150 | 9 | 110 | 150 | 7.6 |
| 3328.100120 | 10 | 80 | 120 | 9 |
| 3328.100150 | 10 | 110 | 150 | 9 |
| 3328.100200 | 10 | 135 | 200 | 9 |
| 3328.100260 | 10 | 190 | 260 | 9 |
| 3328.100300 | 10 | 230 | 300 | 9 |
| 3328.100400 | 10 | 340 | 400 | 9 |
| 3328.100600 | 10 | 460 | 600 | 9 |
| 3328.120130 | 12 | 80 | 130 | 9.98 |
| 3328.120150 | 12 | 90 | 150 | 9.98 |
| 3328.120200 | 12 | 150 | 200 | 9.98 |
| 3328.120260 | 12 | 150 | 260 | 9.98 |
| 3328.120300 | 12 | 230 | 300 | 9.98 |
| 3328.120400 | 12 | 340 | 400 | 9.98 |
| 3328.120600 | 12 | 460 | 600 | 9.98 |
| 3328.121000 | 12 | 900 | 1000 | 9.98 |
| 3328.130150 | 13 | 90 | 150 | 9.98 |
| 3328.130200 | 13 | 150 | 200 | 9.98 |
| 3328.130300 | 13 | 230 | 300 | 9.98 |
| 3328.140150 | 14 | 90 | 150 | Reduced in 10 |
| 3328.140200 | 14 | 135 | 200 | Reduced in 10 |
| 3328.140260 | 14 | 200 | 260 | Reduced in 10 |
| 3328.140300 | 14 | 230 | 300 | Reduced in 10 |
| 3328.140400 | 14 | 340 | 400 | Reduced in 10 |
| 3328.140600 | 14 | 460 | 600 | Reduced in 10 |
| 3328.160150 | 16 | 90 | 150 | Reduced in 10 |
| 3328.160200 | 16 | 135 | 200 | Reduced in 10 |
| 3328.160250 | 16 | 200 | 260 | Reduced in 10 |
| 3328.160300 | 16 | 230 | 300 | Reduced in 10 |
| 3328.160400 | 16 | 340 | 400 | Reduced in 10 |
| 3328.160600 | 16 | 460 | 600 | Reduced in 10 |
| 3328.180160 | 18 | 100 | 160 | Reduced in 10 |
| 3328.180200 | 18 | 135 | 200 | Reduced in 10 |
| 3328.180300 | 18 | 230 | 300 | Reduced in 10 |
| 3328.180400 | 18 | 340 | 400 | Reduced in 10 |
| 3328.180600 | 18 | 460 | 600 | Reduced in 10 |
| 3328.200160 | 20 | 100 | 160 | Reduced in 10 |
| 3328.200200 | 20 | 135 | 200 | Reduced in 10 |
| 3328.200260 | 20 | 200 | 260 | Reduced in 10 |
| 3328.200300 | 20 | 230 | 300 | Reduced in 10 |
| 3328.200400 | 20 | 340 | 400 | Reduced in 10 |
| 3328.200600 | 20 | 460 | 600 | Reduced in 10 |
| 3328.220160 | 22 | 100 | 160 | Reduced in 10 |
| 3328.220200 | 22 | 135 | 200 | Reduced in 10 |
| 3328.220300 | 22 | 230 | 300 | Reduced in 10 |
| 3328.220400 | 22 | 340 | 400 | Reduced in 10 |
| 3328.250160 | 25 | 100 | 160 | Reduced in 12.7 |
| 3328.250200 | 25 | 135 | 200 | Reduced in 12.7 |
| 3328.250300 | 25 | 230 | 300 | Reduced in 12.7 |
| 3328.250400 | 25 | 340 | 400 | Reduced in 12.7 |
