Pgm German Quality Tct Multi Purpose Drill Bit W Tip S4 Flute Tri-Flat Shank for Various Materials, Concrete Brick MDF Fibre Board Plywood Metal Sheet Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：85mm to 160mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Wood Drilling, Metal Drilling, Masonry Drilling
Base Info
- Model NO.：3338
- Carbide Type：Ceratizit W Carbide Bc05
- Steel Type：40cr
- Flute Type：S4
- Cutting Head：Diamond Ground Edges
- Marking：Stamped
- Surface Treatment：Shot-Peened
- Shank Type：Tri-Flat
- Welding Type：AVS.(Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：4mm to 20mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 3338 Carbide Type Ceratizit W Carbide Bc05 Steel Type 40cr Flute Type S4 Cutting Head Diamond Ground Edges Marking Stamped Surface Treatment Shot-Peened Shank Type Tri-Flat Welding Type AVS.(Automatic Vacuum Soldering) Certificate Pgm Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 4mm to 20mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

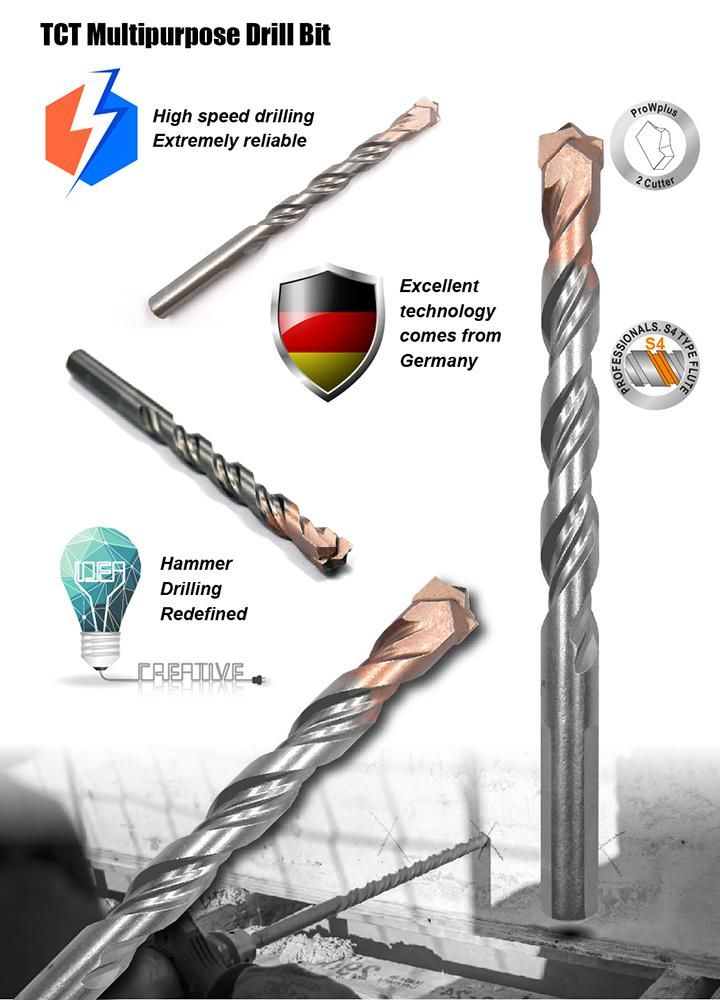

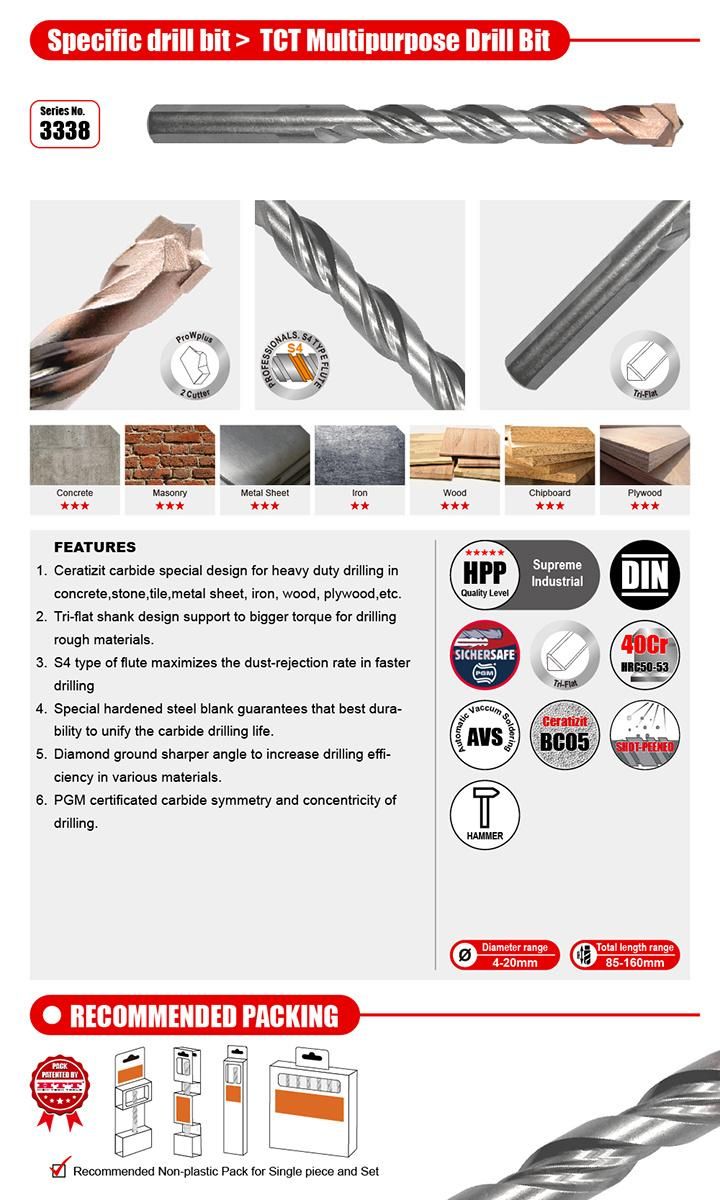

*W Type Carbide Tipped TCT Multi purpose Drill Bit Tri-flat shank for drilling various materials, such as concrete, brick, wood, MDF, fibre board, non-ferrous metal sheet, iron steel, tile, ceramics, and cement etc.*Ceratizit patented design of W outline shape carbide tip on BC05 formulation to be with extra high wear-resistance for various material drilling work.
*4H-plus type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*Tri-flat shank increase the grip power to avoid slip while drilling work.
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*Other special sizes are also available on the customers' special request.
*Note:
3mm to 5.5mm ones with cylinder shank
6mm to 12mm ones with tri-flat shank
13mm to 20mm ones with reduced tri-flat shank.
| Item No. | Diameter(mm) | Working Length(mm) | Overall Length(mm) | Shank Diameter(mm) |
| 3338.040085 | 4 | 45 | 85 | 3.75 |
| 3338.050085 | 5 | 45 | 85 | 4.50 |
| 3338.055095 | 5.5 | 50 | 95 | 4.50 |
| 3338.060100 | 6 | 60 | 100 | 5.50 |
| 3338.065100 | 6.5 | 60 | 100 | 6.00 |
| 3338.070100 | 7 | 60 | 100 | 6.50 |
| 3338.080120 | 8 | 80 | 120 | 7.60 |
| 3338.090120 | 9 | 80 | 120 | 7.60 |
| 3338.100120 | 10 | 80 | 120 | 9.00 |
| 3338.120130 | 12 | 80 | 130 | 9.98 |
| 3338.130150 | 13 | 90 | 150 | 10 |
| 3338.140150 | 14 | 90 | 150 | 10 |
| 3338.160150 | 16 | 90 | 150 | 10 |
| 3338.180160 | 18 | 100 | 160 | 10 |
| 3338.200160 | 20 | 100 | 160 | 10 |
