• Model NO.：168mm
• Suitable Hammer Model：3"-10" Hammer
• Reamer Diameter：118-378mm
• Drill Pipe Size：76mm 89mm 114mm
• Model：Hod90
• Transport Package：Wooden Box
• Specification：CE
• Trademark：BESTLINK
• Origin：China
• HS Code：84314320
• Production Capacity：20000sets,Month

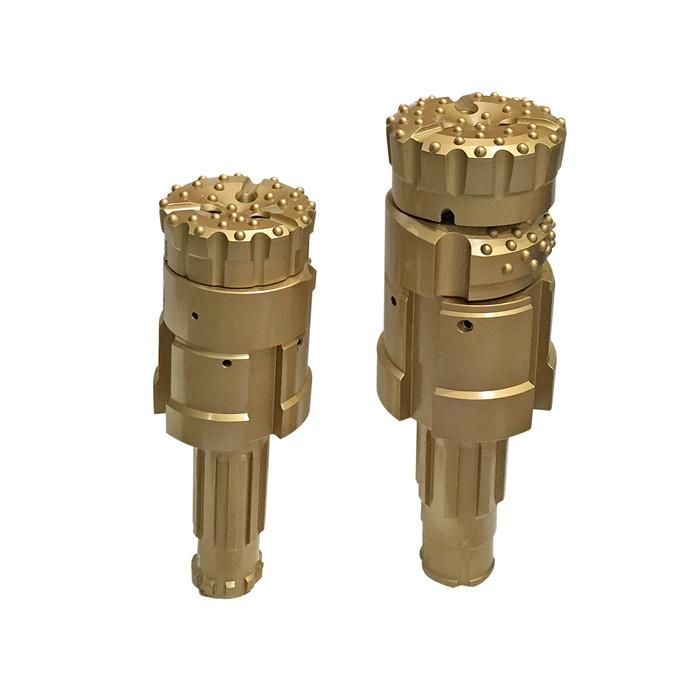

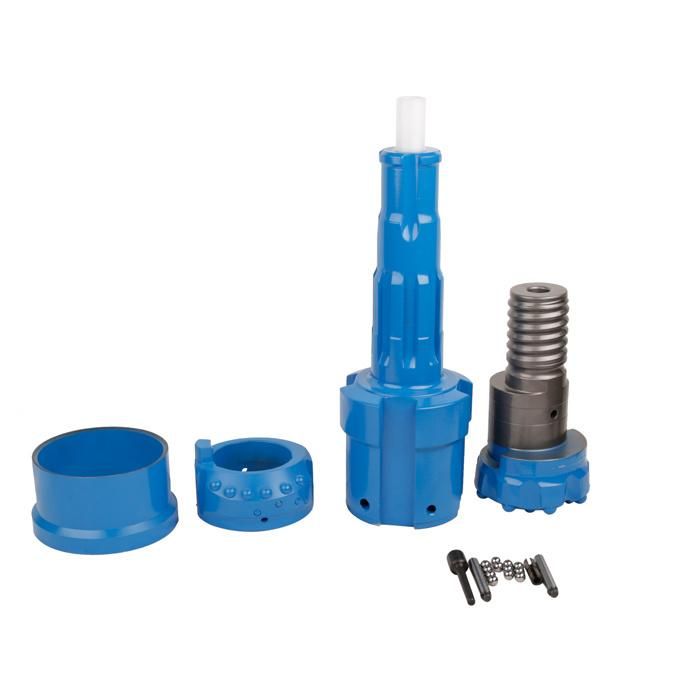

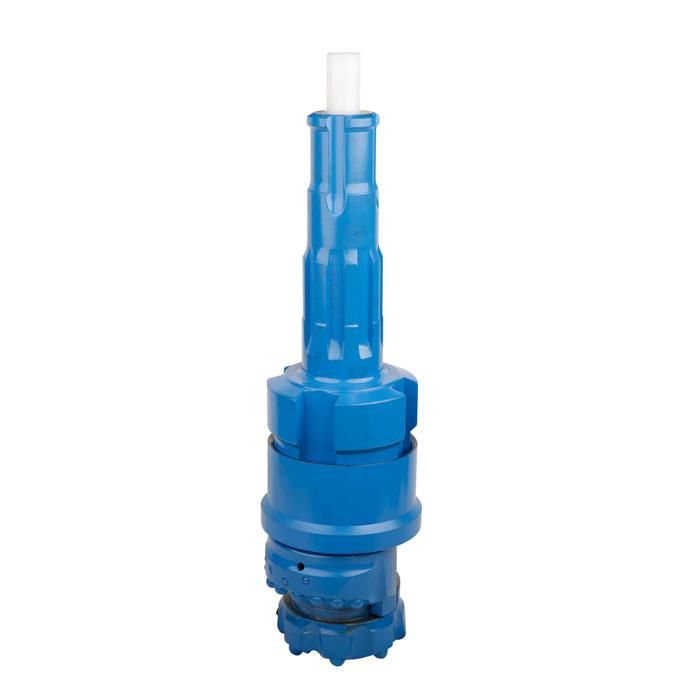

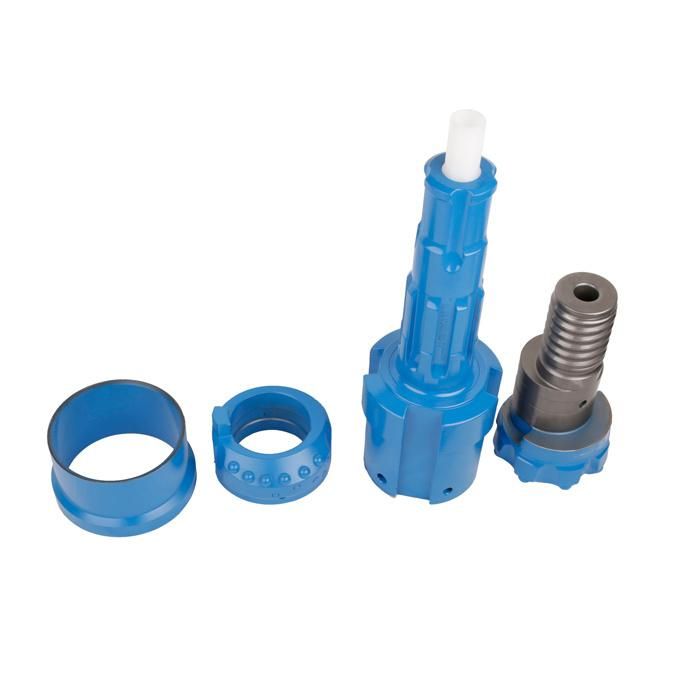

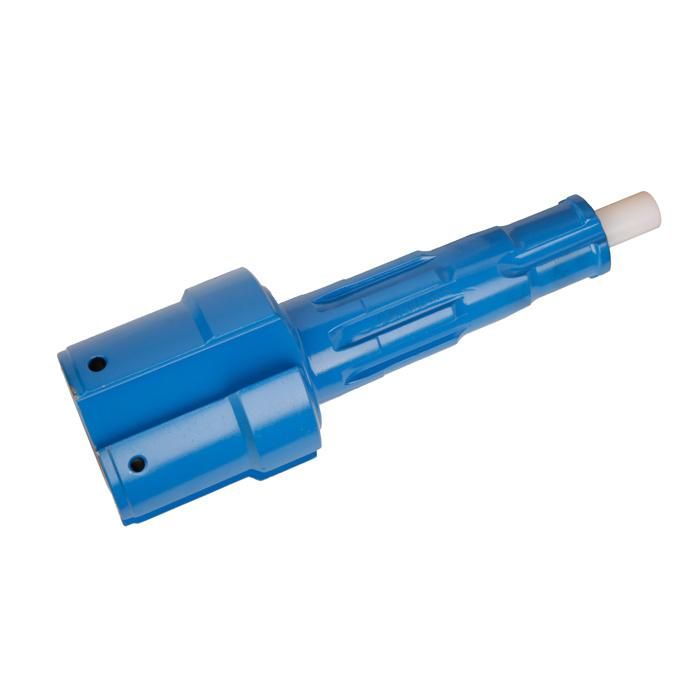

Type1.Casing tube2.Drill pipe3.Guide sleeve4.DTH hammer5.Casing shoe6.Guide device7.Reamer 8.Pilot bitHOD90Maximum OD:115mm Minimum ID:102mmconnection thread:API 2 3/8"REG OD:76mm wrech flats:65mmEffective length: 174mmHD35,COP32, IR3.5,QL30L3=90mm,L4=55mm, D3=101mm,D4=93mmL1=35mm,L2=138mm, D1=92mm,D4=100mmD5=91mm,L5=70mm, reaming diameter=123mm, reamer has4*Φ12buttonsD6=90mm,L6=59mm, gauge button=8*Φ12mm, face button:6*Φ10mmHOD115Maximum OD:142mm Minimum ID:128mmconnection thread:API 2 3/8"REG OD:76mm wrech flats:65mmEffective length: 174mmHD45,COP44, SD4,DHD340A,QL40,HM4L3=76mm,L4=55mm, D3=127.5mm,D4=117mmL1=48mm,L2=136mm, D1=115mm,D4=126mmD5=114mm,L5=89mm, reaming diameter=152mm, reamer has5*Φ14buttonsD6=114mm,L6=67mm, gauge button=8*Φ14mm, face button:6*Φ13mmHOD140Maximum OD:171mm Minimum ID:155.6mmconnection thread:API 2 3/8"REG OD:89mm wrech flats:65mmEffective length: 205mmHD55,COP54, SD5,DHD350R,QL50L3=90mm,L4=63mm, D3=155.3mm,D4=143mmL1=55mm,L2=160mm, D1=141mm,D4=154mmD5=138mm,L5=69.5mm, reaming diameter=185mm, reamer has7*Φ14buttonsD6=138mm,L6=66.5mm, gauge button=8*Φ16mm, face button:8*Φ14mmHOD165Maximum OD:195mm Minimum ID:182.6mmconnection thread:API 3 1/2"REG OD:114mm wrech flats:95mmEffective length: 225mmHD65,COP64, SD6,DHD360, QL60L3=95mm,L4=55mm, D3=181.5mm,D4=166mmL1=61.5mm,L2=181.5mm, D1=165mm,D4=178mmD5=164mm,L5=79.5mm, reaming diameter=211mm, reamer has7*Φ14buttonsD6=165mm,L6=82.5mm, gauge button=8*Φ16mm, face button:8*Φ16mmHOD190Maximum OD:222mm Minimum ID:205mmconnection thread:API 3 1/2"REG OD:114mm wrech flats:95mmEffective length: 285mmHD65,COP64, SD6,DHD360, QL60L3=110mm,L4=70mm, D3=204.5mm,D4=193mmL1=62.5mm,L2=184.5mm,D1=191mm,D4=203mmD5=185.5mm,L5=90.2mm, reaming diameter=237mm, reamer has7*Φ16buttonsD6=190mm,L6=82mm, gauge button=9*Φ18mm, face button:9*Φ16mmHOD240Maximum OD:273mm Minimum ID:260.4mmconnection thread:API 3 1/2"REG OD:114mm wrech flats:95mmEffective length: 343mmHD85,COP84, SD8,DHD380, QL80L3=110mm,L4=65mm, D3=259mm,D4=241mmL1=70mm,L2=190mm, D1=240mm,D4=256mmD5=238mm,L5=100mm, reaming diameter=308mm, reamer has14*Φ16buttonsD6=240mm,L6=89.5mm, gauge button=12*Φ16mm, face button:18*Φ16mmHOD280Maximum OD:324mm Minimum ID:305mmconnection thread:API 4 1/2"REG OD:114mm wrech flats:95mmEffective length: 305mmSD10,NUMA100L3=125mm,L4=75mm, D3=304mm,D4=281mmL1=97mm,L2=254mm, D1
