Odex 90mm Eccentric Overburden Casing Drilling System

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Type:Drill Bit
  • Material:High Quality Carbide + High Quality Carbon Steel
  • Usage:Well Drilling
  • Brand Name:Prodrill
  • Model Number:Odex80~Odex280
  • Machine Type:Drilling Equipment

Base Info

  • Model NO.:odex 90mm
  • Processing Type:Forging
  • Application:Water Wells, Geothermal Wells, Building, etc
  • Transport Package:Wood Package
  • Specification:CE, SGS
  • Trademark:PRODRILL
  • Origin:China
  • HS Code:82071990
  • Production Capacity:1000pec,Months

Description

Basic Info.

Model NO. odex 90mm Processing Type Forging Application Water Wells, Geothermal Wells, Building, etc Transport Package Wood Package Specification CE, SGS Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 1000pec/Months

Product Description

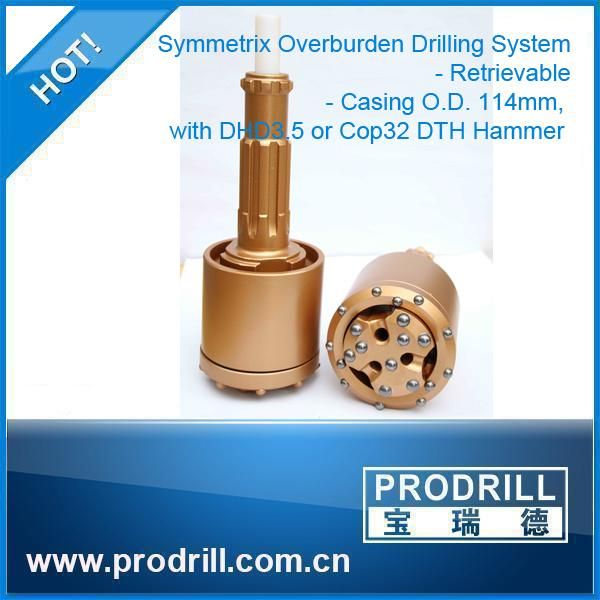

PRODRILL Overburden System 90mm
Prodrill produces the ODEX Eccentric Overburden Drilling System, starting with the ODEX90 to suit 114mm O. D. Casings. This two-piece system comprises the shank bit holder and the eccentric pilot bit that is secured in the bit holder by a double interlocking pin. This is easily removed to allow for bit are sharpening or replacement. Prodrill ODEX overburden drilling systems are widely used in a variety of applications from well drilling and mining to rock anchoring and site investigation.
Odex 90mm Eccentric Overburden Casing Drilling System

Application Range:
It is suitable for drilling water wells, geothermal wells, short mircopiles, medium mini-type grouting hole of building, dam and harbour project.
1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly
2. When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in, allowing the drill bit assembly to be pulled up through the casing.
3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.


Hammer
Pilot
diameter
Reamed
diameter
Casing tube
outside
diameter
Casing
tube wall
thickness
max.
Casing
tube wall thickness
w/o casing
shoe max.
ODEX 903"3-9/16"4-13/164-1/21/4
ODEX 1153"-4"4-1/2"65-1/21/4
ODEX 1274"5"6-1/261/4
ODEX 1404"-5"5-1/2"7-1/86-5/81/4
ODEX 1525"-6"6"7-9/1671/4
ODEX 1655"-6"6-1/2"8-7/327-5/81/4
ODEX 1906"-8"7-1/2"9-1/48-5/81/4


-----------------------------------------------

Ps.: Others about Prodrill Equipment Co., Ltd
1. Prodrill Main Products as below:
1) Rock drill:
Handheld rock Drill (Jackhammer): Y10, Y18, Y20, Y24, Y26, TY24C, etc;
Airleg rock drill: YT24, YT28, etc;
Gasoline rock drill: YN27
2) Drill rod: Taper rod (hex. 22 * 108mm)
3) Drill bit: Taper button bit, Taper chisel bit, Taper cross bit; Thread button bit (Top hammer); DTH Hammer and DTH bit; Overburden Drilling System
4) Splitter: Handheld stone splitter (or shims and wedges or plug and feather), G10 pneumatic splitter; Hydraulic Splitter
5) Breaker: Hydraulic Breaker, Pneumatic Breaker G10, TPB, etc;
6) Splitting or Cracking Powder for Construction/ Quarry/ Rock: Expansive mortar Soundless Cracking Agent; High Range Soundless Cracking Agent

2. Advantages:
Compared the Rock Drilling Tools with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.

4. Welcome your question and inquiry
