• Model NO.：MK-MSX90
• Processing Type：Forging
• Application：Water Wells,Geothermal Wells, Building, etc
• Surface Treatment：Spray-Paint
• Transport Package：Wooden Case
• Trademark：MING
• Origin：China
• HS Code：8207199000
• Production Capacity：20000PCS,Year

Basic Info.

Model NO. MK-MSX90 Processing Type Forging Application Water Wells,Geothermal Wells, Building, etc Surface Treatment Spray-Paint Transport Package Wooden Case Trademark MING Origin China HS Code 8207199000 Production Capacity 20000PCS/Year

Product Description

MSX slide block drilling bit for DTH hammer

Product details:
Rock drill tools factory KINGDRILLING professionally produce Concentric drilling systems such as slide block drilling bit by down the hole hammer which are designed to drill and case a hole simultaneously through unstable ground conditions. Wing Block casing drilling system is consists of pilot bit and slider blocks.
Before drilling, the system press down, and the slider bit open to carry casing tube into the hole to protect wall. After finished, the wings will be closed trough lifting system. This system is efficient for casing tube from 114-273mm in diameter.

Model	Hole dia(mm)	Weight(KG)	Closed dia(mm)	Pilot dia.(mm)	length (mm)	Case dia.(OD*ID)	Spline
MK-MSX90	125	16	90	100	360	114*102	MACH33,DHD3.5
MK-MSX115	155	30	115	125	510	139*127	DHD340,SD4.QL4
MK-MSX140	188	52	140	151	570	168*153	DHD350,SD5,QL5
MK-MSX165	215	95	166	178	690	194*181	DHD360,SD6,QL6
MK-MSX190	238	108	190	203	690	219*206	DHD360,SD6,QL6
MK-MSX215	276	140	215	236	720	254*240	DHD380,SD8,QL8
MK-MSX235	293	160	236	251	730	273*254	DHD380,SD8,QL8
MK-MSX240	293	168	241	256	730	273*260	DHD380,SD8,QL8

How to order:
Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.

2. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.

3.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.

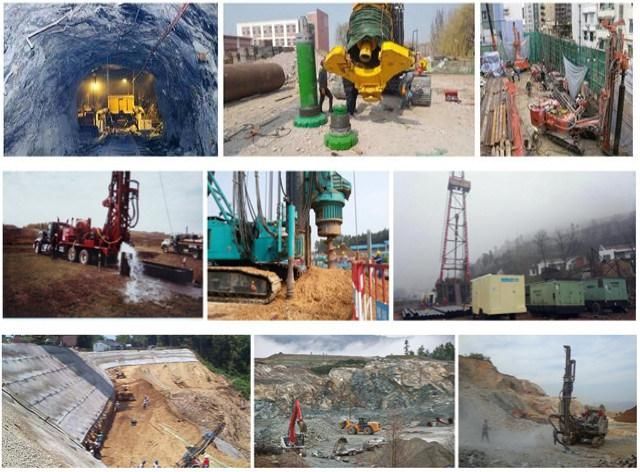

  Product Application:


Transport:


Package and Delivery:
Packed by Carton or Wooden cases.

Delivery:

1. Goods in stock can be delivered within 5 days.
2. DTH Bits production time is about 15 days.
3. DTH Hammer product time is about 30 days.

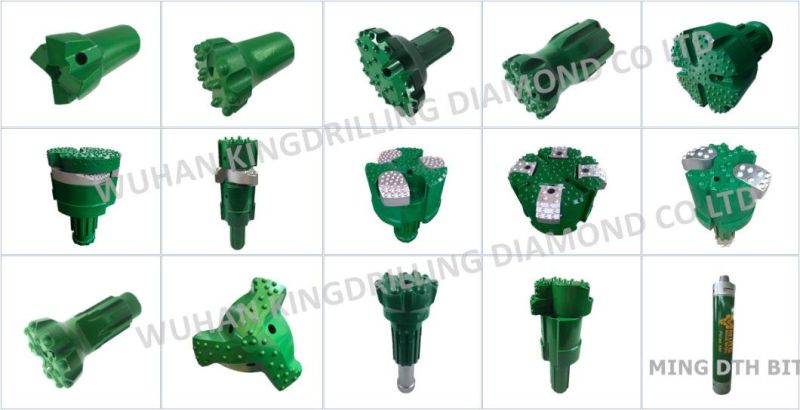

More products:
