• Model NO.：T51-89
• Body Type：Normal Type and Retract Type
• Diameter：89mm
• Color：Red, Black, Yellow, Gold
• Transport Package：Wood Package
• Specification：CE, SGS, ISO: 9001, R32 R38 T38 T45 T51
• Trademark：PRODRILL
• Origin：China
• HS Code：82071990
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. T51-89 Body Type Normal Type and Retract Type Diameter 89mm Color Red, Black, Yellow, Gold Transport Package Wood Package Specification CE, SGS, ISO: 9001, R32 R38 T38 T45 T51 Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 10000PCS/Month

Product Description

Product Name:	Thread Button bits
Description:	Thread Button bits Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment like Atlas.
Material:	Alloy steel bar and tungsten carbide bit
MOQ:	No MOQ required for testing and trial order
Body Type	Normal type and retract type
Thread type	R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
Diameter	32mm-152mm
Button bit shape	Spherical and Ballistic
Face shape	Flat shape and Drop-Center shape

Description:

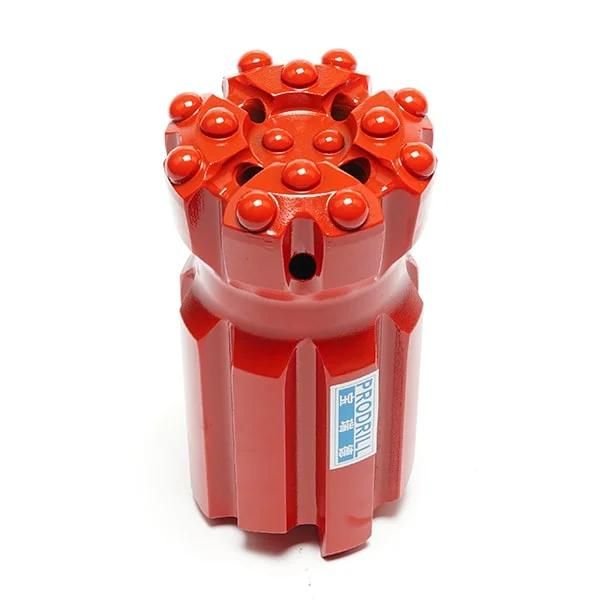

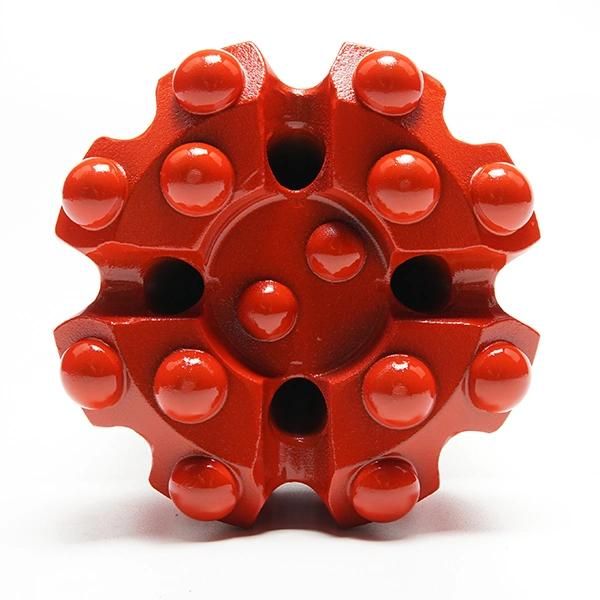

Q14-89-T51RC Threaded Button Bit

• Code No.: Q14-89-T51-RC
• Thread: T51
• Diameter: 89mm
• Gauge Buttons: 8
• Front Buttons: 6
• Carbide Design: Semi-ballistic
• Face Design: Drop Center
• Skirt Design: Retrac

Rock drilling tools factory ProDrill manufactures high quality rock drill bits, one of the most important size for benching and long-hole drilling underground is T51 Threaded Button Bit

Diameter: 76mm, 89mm, 102mm
Skirt body: retrac, and normal, straightrac
Face type: flat, uniface, Drop Center
Carbide shape:  Dome, ballistic, semi-ballistic
Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer drilling tools.

14 Semi-ballistic carbide inserts T51 threaded drill bit with drop center face design, 89 mm diameter match with extension drill steels. Drop center bits (DC) are well suited for drilling straighter holes in less abrasive and less consolidated rock at a faster rate.


Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory


About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 15 years.
2. We have advanced technology and equipment.
3. Our technician has more than 15 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.

The products we produce:A.Tapered rock drilling toolsTapered rod+Taper button bits
7o Taper Button bits  (Recommended bit diameter Dia.32~Dia.44)
11o Taper Button bits  (Recommended bit diameter Dia.32~Dia.44)
12o Taper Button bits  (Recommended bit diameter Dia.32~Dia.44)

B.Extension Drill Tools(System): R22/R25/R28/R32/R35/T35/T38/T45/T51/GT60
a. Shank adapter + M/F Rod + Thread Button Bit
b. Shank adapter + Coupling + M/M rod + Thread Button bit
R25 (1") SERIES (Recommended bit diameter Dia.33~Dia.45)
R28 (1 1/8") SERIES (Recommended bit diameter Dia.37~Dia.45)
R32 (1 1/4") SERIES (Recommended bit diameter Dia.41~Dia.64)
R35 (1 3/8") SERIES (Recommended bit diameter Dia.48~Dia.64)
T38 (1 1/2") SERIES (Recommended bit diameter Dia.57~Dia.102)
T45 (1 3/4") SERIES (Recommended bit diameter Dia.70~Dia.115)
T51 (2") SERIES (Recommended bit diameter Dia.89~Dia.127)
GT60 SERIES (Recommended bit diameter Dia.92~Dia.152)

 We can provide Taperde rod, Taper button bit, Shank adapter, M/F (Speed)  rod, M/M (Extension ) rod, Coupling And Thread Button bit for you.

Product Strength:

1. Using high quality alloy steel rod and tungsten carbide, threaded drill bit is made by vacuum heat treatment process, which can withstand the most stringent rock drilling requirements, and has very good fatigue and wear resistance effect.We have a series of product systems including shank adapter, drill rods, connecting sleeves and drill bits.We have excellent pre-sale and after sales service system, with senior engineers and professional support.For samples, we offer 15 days delivery time, bulk products for 30 days to meet your needs.

Production Site:

  We have CNC machining center, vacuum heat treatment equipment, well carburizing heat treatment equipment and other advanced processing equipment to ensure the production of high-quality rock drilling tools products




Packing and transportation:

A.We offer simple packing, wooden case packing, plastic box packing, plastic bracket packing and so on.
B.We provide FOB services.


We will serve you in the most sincere way!
