Carbide Tipped Annular Cutter Drill Dntx 19.05mm Weldon Shank
Zhejiang Xinxing Tools Co., Ltd.- Customized：Customized
- Length：35,50mm
- Type：Core Drill Bit
- Material：Tungsten Carbide
- Usage：Metal Drilling
- Shank Type：Weldon Shank
Base Info
- Model NO.：DNTX
- Shank Diameter：19.05mm
- Treatmnet：All-Ground
- Performance：Better Endurance
- Transport Package：Single Packing with PVC Plastic Tube
- Specification：35,50mm
- Trademark：CHTOOLS
- Origin：China(Mainland)Zhejiang
- HS Code：8207509000
- Production Capacity：100, 000PCS,Month
Description

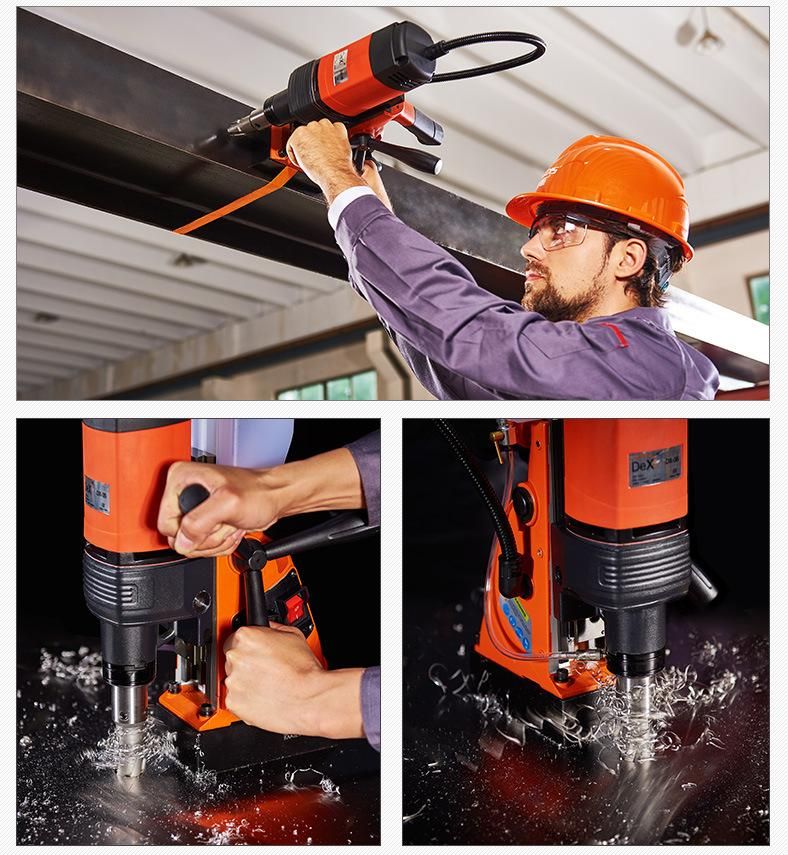

1. Weldon shank, with more stable clamping for stable cutting and finish of holes; 2. Selected speical-purpose carbide tips with multi-cut geometry for ply-cutting and lower friction. Reduced damage of tips and improved performance of chips removal; 3. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Euroboor, BDS, Ruko;
| Model | DNTX-3 | DNTX-4 | DNTX-5 | DNTX-6 |
| Diameter(mm) | φ12-65 | φ12-65 | φ18-65 | φ18-65 |
| Cutting depth(mm) | 35 | 50 | 75 | 100 |
| Matched pilot pin | DPB-62090 | DPB-81102 | DPB-81130 | DPB-81160 |
| Specification(mm) | 6.34*90 | 7.98*102 | 7.98*130 | 7.98*160 |
