Pgm High Quality Quick Change Masonry Drill DIN6.35e Shank for Masonry Brick Stone Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:60mm to 600mm
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Masonry Drilling
Base Info
- Model NO.:3376
- Carbide Tip Type:Virgin Yg9
- Steel Shaft Type:40cr
- Flute Type:H
- Shank Type:DIN6.35e
- Welding Type:AVS. (Automatic Vacuum Soldering)
- Surface Treatment:Shot-Peened
- Certificate:Pgm
- Cutter Head:2cutter 130degrees Triangle
- Transport Package:Paper Hanger, PVC Bag, Skin Pack, Blister Pack
- Specification:3mm to 16mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:2400000
Description
Basic Info.
Model NO. 3376 Carbide Tip Type Virgin Yg9 Steel Shaft Type 40cr Flute Type H Shank Type DIN6.35e Welding Type AVS. (Automatic Vacuum Soldering) Surface Treatment Shot-Peened Certificate Pgm Cutter Head 2cutter 130degrees Triangle Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000Product Description

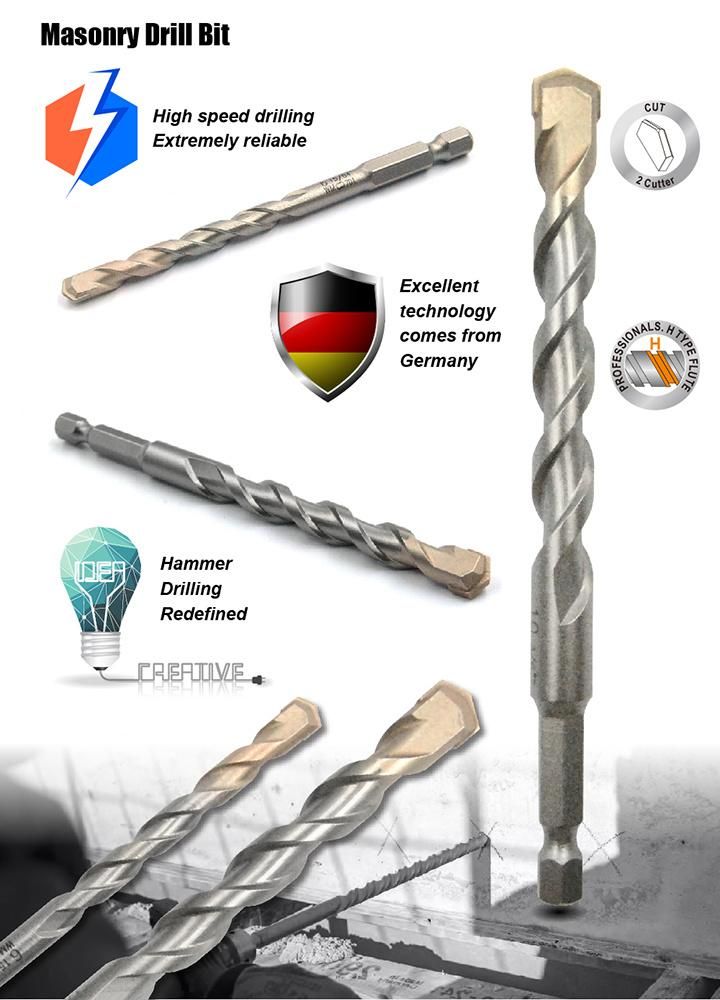

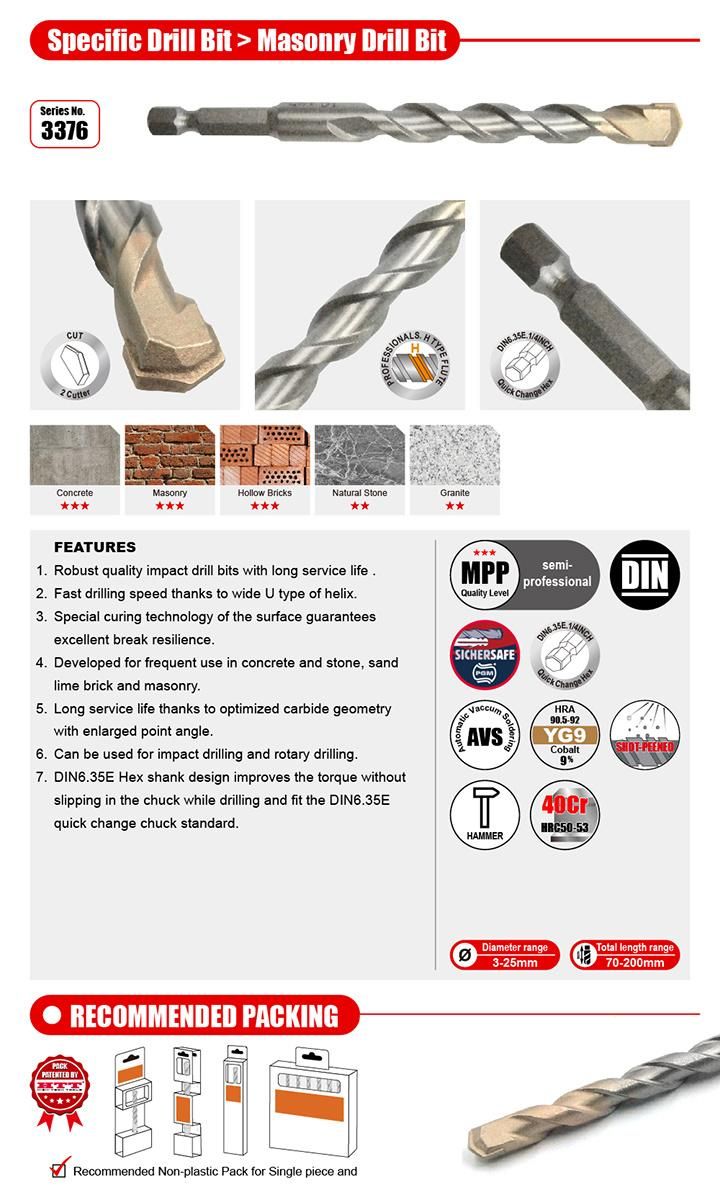

*Quick Change Masonry Drill Bit with DIN6.35E quick-change shank, Virgin YG9 carbide-tipped for drilling holes in various concrete, brick, stone, cement, etc.* H type of flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for an easy longer-time drilling job thanks to the higher run-out concentricity controlling.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry and rotary run-out straightness for the industrial professional applications.
*Other special sizes are available on the customers' special requests.
Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
3376.030060 | 3 | 25 | 60 |
3376.030070 | 3 | 30 | 70 |
3376.030085 | 3 | 40 | 85 |
3376.030090 | 3 | 50 | 90 |
3376.030095 | 3 | 50 | 95 |
3376.030100 | 3 | 50 | 100 |
3376.040075 | 4 | 30 | 75 |
3376.040085 | 4 | 40 | 85 |
3376.040090 | 4 | 50 | 90 |
3376.040100 | 4 | 60 | 100 |
3376.040105 | 4 | 60 | 105 |
3376.040150 | 4 | 110 | 150 |
3376.050085 | 5 | 40 | 85 |
3376.050090 | 5 | 45 | 90 |
3376.050095 | 5 | 50 | 95 |
3376.050100 | 5 | 60 | 100 |
3376.050105 | 5 | 60 | 105 |
3376.050150 | 5 | 110 | 150 |
3376.050250 | 5 | 200 | 250 |
3376.050300 | 5 | 250 | 300 |
3376.050400 | 5 | 260 | 400 |
3376.050500 | 5 | 360 | 500 |
3376.055085 | 5.5 | 40 | 85 |
3376.055090 | 5.5 | 50 | 90 |
3376.055095 | 5.5 | 50 | 95 |
3376.055100 | 5.5 | 60 | 100 |
3376.055150 | 5.5 | 110 | 150 |
3376.060085 | 6 | 40 | 85 |
3376.060090 | 6 | 50 | 90 |
3376.060100 | 6 | 60 | 100 |
3376.060115 | 6 | 65 | 115 |
3376.060150 | 6 | 110 | 150 |
3376.060200 | 6 | 130 | 200 |
3376.060250 | 6 | 180 | 250 |
3376.060300 | 6 | 230 | 300 |
3376.060400 | 6 | 340 | 400 |
3376.060600 | 6 | 460 | 600 |
3376.065100 | 6.5 | 60 | 100 |
3376.065115 | 6.5 | 65 | 115 |
3376.065150 | 6.5 | 110 | 150 |
3376.065200 | 6.5 | 130 | 200 |
3376.065250 | 6.5 | 180 | 250 |
3376.065300 | 6.5 | 230 | 300 |
3376.065400 | 6.5 | 340 | 400 |
3376.070090 | 7 | 50 | 90 |
3376.070100 | 7 | 60 | 100 |
3376.070120 | 7 | 80 | 120 |
3376.070150 | 7 | 110 | 150 |
3376.070300 | 7 | 230 | 300 |
3376.070400 | 7 | 340 | 400 |
3376.070500 | 7 | 360 | 500 |
3376.080100 | 8 | 60 | 100 |
3376.080120 | 8 | 80 | 120 |
3376.080125 | 8 | 80 | 125 |
3376.080150 | 8 | 110 | 150 |
3376.080200 | 8 | 130 | 200 |
3376.080260 | 8 | 190 | 260 |
3376.080300 | 8 | 230 | 300 |
3376.080400 | 8 | 340 | 400 |
3376.080600 | 8 | 460 | 600 |
3376.090120 | 9 | 80 | 120 |
3376.090150 | 9 | 110 | 150 |
3376.100120 | 10 | 80 | 120 |
3376.100150 | 10 | 110 | 150 |
3376.100200 | 10 | 135 | 200 |
3376.100260 | 10 | 190 | 260 |
3376.100300 | 10 | 230 | 300 |
3376.100400 | 10 | 340 | 400 |
3376.100600 | 10 | 460 | 600 |
3376.120130 | 12 | 80 | 130 |
3376.120150 | 12 | 90 | 150 |
3376.120200 | 12 | 150 | 200 |
3376.120260 | 12 | 150 | 260 |
3376.120300 | 12 | 230 | 300 |
3376.120400 | 12 | 340 | 400 |
3376.120600 | 12 | 460 | 600 |
3376.130130 | 13 | 80 | 130 |
3376.130160 | 13 | 90 | 150 |
3376.130300 | 13 | 230 | 300 |
3376.140150 | 14 | 90 | 150 |
3376.140200 | 14 | 135 | 200 |
3376.140260 | 14 | 200 | 260 |
3376.140300 | 14 | 230 | 300 |
3376.140400 | 14 | 340 | 400 |
3376.140600 | 14 | 460 | 600 |
3376.160150 | 16 | 90 | 150 |
3376.160200 | 16 | 135 | 200 |
3376.160250 | 16 | 200 | 260 |
3376.160300 | 16 | 230 | 300 |
3376.160400 | 16 | 340 | 400 |
3376.160600 | 16 | 460 | 600 |
