Pgm German Quality Hollow Block Hammer Drill Compatible SDS Plus for Professional Hollow Brick, Block Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：110mm to 800mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：2372
- Carbide Type：Ceratizit Bc05
- Transport Package：Clip Hanger, PVC Bag, Skin, Blister, Sandwich
- Specification：4mm to 16mm diameters
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：24000000PCS,Year
Description
Basic Info.
Model NO. 2372 Carbide Type Ceratizit Bc05 Transport Package Clip Hanger, PVC Bag, Skin, Blister, Sandwich Specification 4mm to 16mm diameters Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 24000000PCS/YearProduct Description

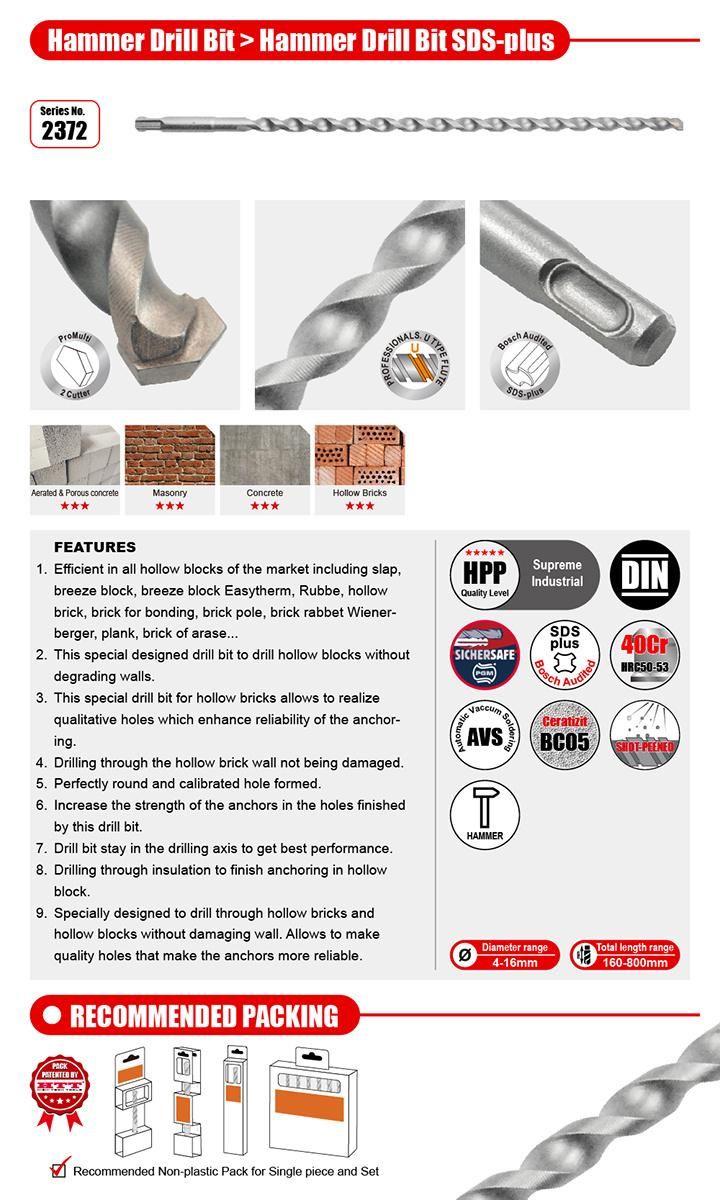

* Hollow Block Drilling Hammer Drill Bit Compatible SDS-plus shank for professional drilling holes in hollow brick, hollow block, etc.* The hammering reducer generates micro percussion and keeps the walls of the block safe from damage.
* To finish calibrated hole.
* Increased anchoring strength.
* The unshaped part of the flute provides rigidity and guides the bit along the line over the entire drilling depth.
* The flute shape makes removal easier while drilling through insulating material.
* Short Compatible SDS-plus Shank with Hammering reducer function.
Other special sizes are also available on the customers' special request.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 2372.040110 | 4 | 60 | 110 |
| 2372.050110 | 5 | 60 | 110 |
| 2372.055110 | 5.5 | 60 | 110 |
| 2372.060110 | 6 | 60 | 110 |
| 2372.065110 | 6.5 | 60 | 110 |
| 2372.070110 | 7 | 60 | 110 |
| 2372.080110 | 8 | 60 | 110 |
| 2372.090110 | 9 | 60 | 110 |
| 2372.100110 | 10 | 60 | 110 |
| 2372.110110 | 11 | 60 | 110 |
| 2372.040160 | 4 | 110 | 160 |
| 2372.050160 | 5 | 110 | 160 |
| 2372.055160 | 5.5 | 110 | 160 |
| 2372.060160 | 6 | 110 | 160 |
| 2372.065160 | 6.5 | 110 | 160 |
| 2372.070160 | 7 | 110 | 160 |
| 2372.080160 | 8 | 110 | 160 |
| 2372.090160 | 9 | 110 | 160 |
| 2372.100160 | 10 | 110 | 160 |
| 2372.110160 | 11 | 110 | 160 |
| 2372.120160 | 12 | 110 | 160 |
| 2372.130160 | 13 | 110 | 160 |
| 2372.140160 | 14 | 110 | 160 |
| 2372.160160 | 16 | 110 | 160 |
| 2372.040180 | 4 | 130 | 180 |
| 2372.050180 | 5 | 130 | 180 |
| 2372.055180 | 5.5 | 130 | 180 |
| 2372.060180 | 6 | 130 | 180 |
| 2372.065180 | 6.5 | 130 | 180 |
| 2372.080180 | 8 | 130 | 180 |
| 2372.100180 | 10 | 130 | 180 |
| 2372.050210 | 5 | 160 | 210 |
| 2372.055210 | 5.5 | 160 | 210 |
| 2372.060210 | 6 | 160 | 210 |
| 2372.065210 | 6.5 | 160 | 210 |
| 2372.070210 | 7 | 160 | 210 |
| 2372.080210 | 8 | 160 | 210 |
| 2372.090210 | 9 | 160 | 210 |
| 2372.100210 | 10 | 160 | 210 |
| 2372.110210 | 11 | 160 | 210 |
| 2372.120210 | 12 | 160 | 210 |
| 2372.130210 | 13 | 160 | 210 |
| 2372.140210 | 14 | 160 | 210 |
| 2372.160210 | 16 | 160 | 210 |
| 2372.050260 | 5 | 210 | 260 |
| 2372.055260 | 5.5 | 210 | 260 |
| 2372.060260 | 6 | 210 | 260 |
| 2372.065260 | 6.5 | 210 | 260 |
| 2372.070260 | 7 | 210 | 260 |
| 2372.075260 | 7.5 | 210 | 260 |
| 2372.080260 | 8 | 210 | 260 |
| 2372.090260 | 9 | 210 | 260 |
| 2372.100260 | 10 | 210 | 260 |
| 2372.110260 | 11 | 210 | 260 |
| 2372.120260 | 12 | 210 | 260 |
| 2372.130260 | 13 | 210 | 260 |
| 2372.140260 | 14 | 210 | 260 |
| 2372.160260 | 16 | 210 | 260 |
| 2372.050310 | 5 | 260 | 310 |
| 2372.055310 | 5.5 | 260 | 310 |
| 2372.060310 | 6 | 260 | 310 |
| 2372.065310 | 6.5 | 260 | 310 |
| 2372.070310 | 7 | 260 | 310 |
| 2372.080310 | 8 | 260 | 310 |
| 2372.090310 | 9 | 260 | 310 |
| 2372.100310 | 10 | 260 | 310 |
| 2372.110310 | 11 | 260 | 310 |
| 2372.120310 | 12 | 260 | 310 |
| 2372.130310 | 13 | 260 | 310 |
| 2372.140310 | 14 | 260 | 310 |
| 2372.160310 | 16 | 260 | 310 |
| 2372.050350 | 5 | 300 | 350 |
| 2372.055350 | 5.5 | 300 | 350 |
| 2372.060350 | 6 | 300 | 350 |
| 2372.065350 | 6.5 | 300 | 350 |
| 2372.070350 | 7 | 300 | 350 |
| 2372.080350 | 8 | 300 | 350 |
| 2372.090350 | 9 | 300 | 350 |
| 2372.100350 | 10 | 300 | 350 |
| 2372.110350 | 11 | 300 | 350 |
| 2372.120350 | 12 | 300 | 350 |
| 2372.130350 | 13 | 300 | 350 |
| 2372.140350 | 14 | 300 | 350 |
| 2372.160350 | 16 | 300 | 350 |
| 2372.050410 | 5 | 360 | 410 |
| 2372.055410 | 5.5 | 360 | 410 |
| 2372.060410 | 6 | 360 | 410 |
| 2372.065410 | 6.5 | 360 | 410 |
| 2372.070410 | 7 | 360 | 410 |
| 2372.080410 | 8 | 360 | 410 |
| 2372.090410 | 9 | 360 | 410 |
| 2372.100410 | 10 | 360 | 410 |
| 2372.110410 | 11 | 360 | 410 |
| 2372.120410 | 12 | 360 | 410 |
| 2372.130410 | 13 | 360 | 410 |
| 2372.140410 | 14 | 360 | 410 |
| 2372.160410 | 16 | 360 | 410 |
| 2372.050460 | 5 | 410 | 460 |
| 2372.055460 | 5.5 | 410 | 460 |
| 2372.060460 | 6 | 410 | 460 |
| 2372.065460 | 6.5 | 410 | 460 |
| 2372.070460 | 7 | 410 | 460 |
| 2372.080460 | 8 | 410 | 460 |
| 2372.090460 | 9 | 410 | 460 |
| 2372.100460 | 10 | 410 | 460 |
| 2372.110460 | 11 | 410 | 460 |
| 2372.120460 | 12 | 400 | 460 |
| 2372.130460 | 13 | 400 | 460 |
| 2372.140460 | 14 | 400 | 460 |
| 2372.160460 | 16 | 400 | 460 |
| 2372.060550 | 6 | 500 | 550 |
| 2372.065550 | 6.5 | 500 | 550 |
| 2372.070550 | 7 | 500 | 550 |
| 2372.080550 | 8 | 500 | 550 |
| 2372.090550 | 9 | 500 | 550 |
| 2372.100550 | 10 | 500 | 550 |
| 2372.110550 | 11 | 500 | 550 |
| 2372.120550 | 12 | 500 | 550 |
| 2372.130550 | 13 | 500 | 550 |
| 2372.140550 | 14 | 500 | 550 |
| 2372.160550 | 16 | 500 | 550 |
| 2372.060600 | 6 | 550 | 600 |
| 2372.065600 | 6.5 | 550 | 600 |
| 2372.070600 | 7 | 550 | 600 |
| 2372.080600 | 8 | 550 | 600 |
| 2372.090600 | 9 | 550 | 600 |
| 2372.100600 | 10 | 550 | 600 |
| 2372.110600 | 11 | 550 | 600 |
| 2372.120600 | 12 | 550 | 600 |
| 2372.130600 | 13 | 550 | 600 |
| 2372.140600 | 14 | 550 | 600 |
| 2372.160600 | 16 | 550 | 600 |
| 2372.080800 | 8 | 750 | 800 |
| 2372.090800 | 9 | 750 | 800 |
| 2372.100800 | 10 | 750 | 800 |
| 2372.110800 | 11 | 750 | 800 |
| 2372.120800 | 12 | 750 | 800 |
| 2372.130800 | 13 | 750 | 800 |
| 2372.140800 | 14 | 750 | 800 |
| 2372.160800 | 16 | 750 | 800 |
