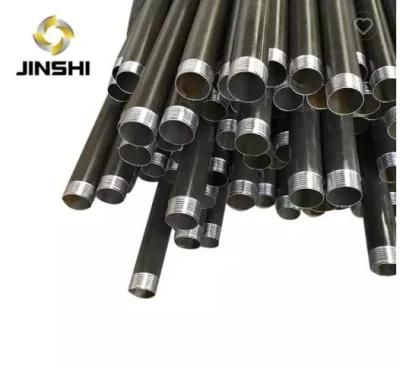

Bq Nq Hq Pq Nrq Hrq Phd Drill Rod/Nw Hw Drill Pipe
JINSHI DRILLTECH CO., LTD.- Standard：RoHS, BS, DIN, JIS, AISI, API
- Length：0.5m,1m,1.5m,3m,4m,4.5m,6m
- Usage：Oil Mining, Coal Mining, Well Drilling, Ore Mining
- Material：Carbon Steel
- Drill Pipe：for Mining
- Transport Package：Iron Bundle
Base Info
- Model NO.：BQ NQ HQ PQ NRQ HRQ PHD NTW HTW
- Specification：3100*520*520mm
- Trademark：JS
- Origin：China
- HS Code：7304512000
- Production Capacity：500 Piece,Pieces Per Day
Description
C series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cuttersSpec. Unit BCB NCB HCB PCB OD/ID mm 55.6/46 71/60 89/77.8 114.3/101.6 Thickness mm 4.8 5.5 5.6 6.35 Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3 Weight kg/m 6.01 8.8 11.51 17.3 thread length mm 44.45 44.45 44.45 63.5 thread pitch thread/inch 3 3 3 2.5 box thread tooth height mm 0.76 0.76 0.76 1.17 pin thread tooth height mm 0.88 0.88 0.88 1.27 thread tooth angle . 29 29 29 29 tensile resistance(A series) kn 400 530 510 565 tensile resistance(B series) kn 450 615 625 660 bore depth m 1200 1000 900 800 RC series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cutters Spec. Unit BRC NRC HRC PRC OD/ID mm 55.6/46 69.9/60.3 88.9/77.8 114.3/101.6 Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3 Weight kg/m 6.01 8.8 11.51 17.3 thread length mm 42 42 41.91 63.5 thread pitch thread/inch 3 3 3 2.5 box thread tooth height mm 0.76 0.76 0.76 1.17 pin thread tooth height mm 0.88 0.88 0.88 1.27 thread tooth negative angle . 5 5 5 5 tensile resistance(A) kn 450 525 545 565 tensile resistance(B) kn 530 625.5 602 660 bore depth m
