Pgm German Quality Supreme Splus Tip Hammer Drill SDS Plus for Reinforcement Concrete Granite Stone Brick Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：110mm to 1000mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：2220
- Carbide Type：Ceratizit Bc20
- Steel Type：35CrMo , 40cr
- Surface Treatment：Shot-Peened
- Cutter Type：Splus Carbide Tip
- Flute Type：O
- Marking：Stamped
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Certificated：Pgm, Bosch Audited SDS-Plus Logo
- Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
- Specification：Diameter 4mm to 32mm
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：3600000,Year
Description
Basic Info.
Model NO. 2220 Carbide Type Ceratizit Bc20 Steel Type 35CrMo / 40cr Surface Treatment Shot-Peened Cutter Type Splus Carbide Tip Flute Type O Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Pgm, Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 4mm to 32mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/YearProduct Description

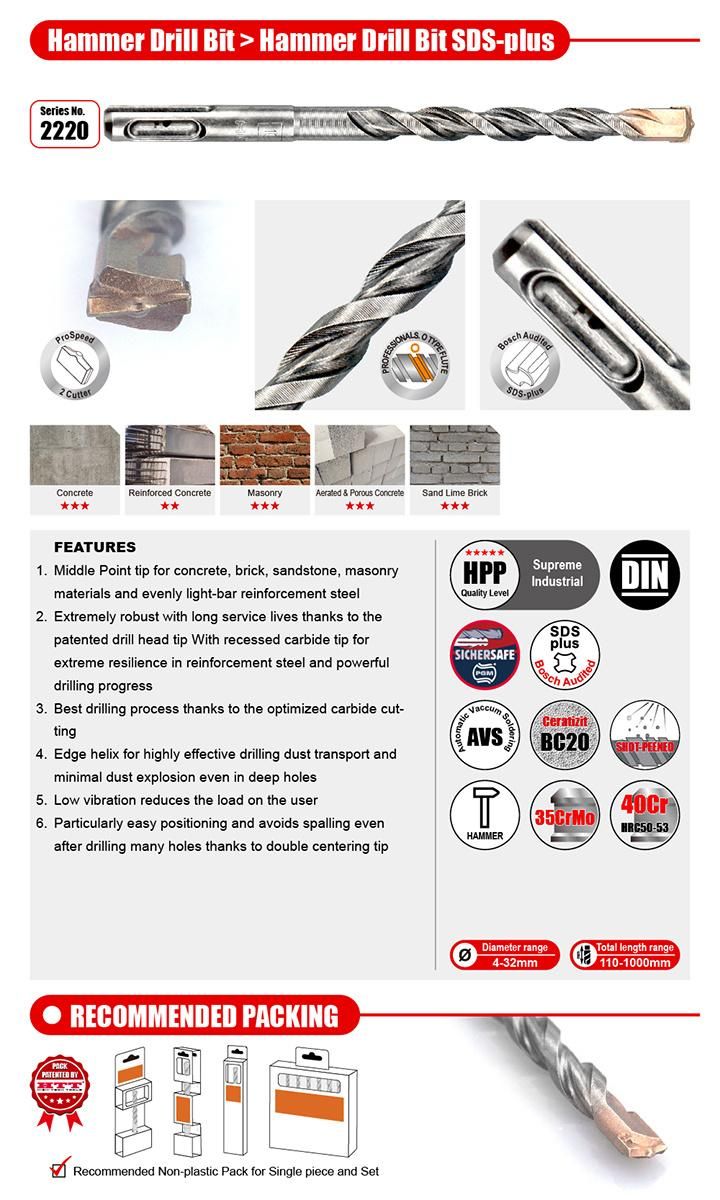

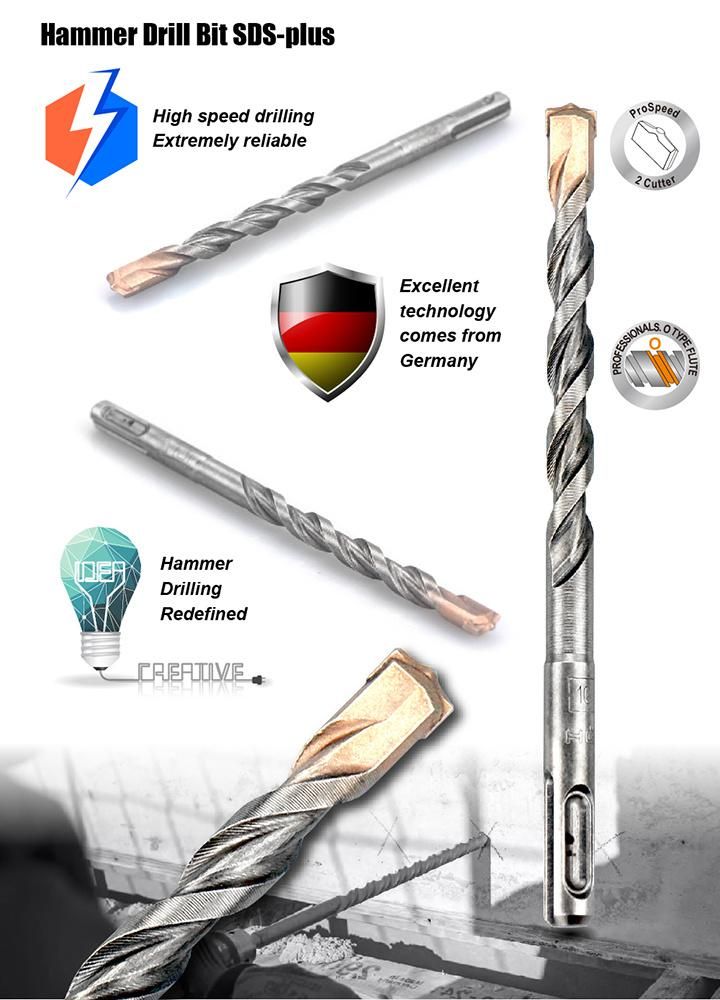

*Hammer Drill SDS plus for Concrete Stone Drilling, PGM certificated on German Quality, Manufactured by HTT, 2 Cutter W Splus carbide tip made by Ceratizit.* Carbide tips are supplied By Ceratizit, one of the most professional tungsten carbides manufacturers in the globe, which is located in Luxemburg.
* H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
* Lower vibration for easy longer-time drilling job.
* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special requests.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 2220.040110 | 4 | 60 | 110 |
| 2220.050110 | 5 | 60 | 110 |
| 2220.055110 | 5.5 | 60 | 110 |
| 2220.060110 | 6 | 60 | 110 |
| 2220.065110 | 6.5 | 60 | 110 |
| 2220.070110 | 7 | 60 | 110 |
| 2220.080110 | 8 | 60 | 110 |
| 2220.090110 | 9 | 60 | 110 |
| 2220.100110 | 10 | 60 | 110 |
| 2220.110110 | 11 | 60 | 110 |
| 2220.040160 | 4 | 110 | 160 |
| 2220.050160 | 5 | 110 | 160 |
| 2220.055160 | 5.5 | 110 | 160 |
| 2220.060160 | 6 | 110 | 160 |
| 2220.065160 | 6.5 | 110 | 160 |
| 2220.070160 | 7 | 110 | 160 |
| 2220.080160 | 8 | 110 | 160 |
| 2220.090160 | 9 | 110 | 160 |
| 2220.100160 | 10 | 110 | 160 |
| 2220.110160 | 11 | 110 | 160 |
| 2220.120160 | 12 | 110 | 160 |
| 2220.130160 | 13 | 110 | 160 |
| 2220.140160 | 14 | 110 | 160 |
| 2220.150160 | 15 | 110 | 160 |
| 2220.160160 | 16 | 110 | 160 |
| 2220.180160 | 18 | 110 | 160 |
| 2220.190160 | 19 | 110 | 160 |
| 2220.200160 | 20 | 110 | 160 |
| 2220.220160 | 22 | 110 | 160 |
| 2220.240160 | 24 | 110 | 160 |
| 2220.250160 | 25 | 110 | 160 |
| 2220.260160 | 26 | 110 | 160 |
| 2220.280160 | 28 | 110 | 160 |
| 2220.300160 | 30 | 110 | 160 |
| 2220.320160 | 32 | 110 | 160 |
| 2220.040180 | 4 | 130 | 180 |
| 2220.050180 | 5 | 130 | 180 |
| 2220.055180 | 5.5 | 130 | 180 |
| 2220.060180 | 6 | 130 | 180 |
| 2220.065180 | 6.5 | 130 | 180 |
| 2220.080180 | 8 | 130 | 180 |
| 2220.100180 | 10 | 130 | 180 |
| 2220.050210 | 5 | 160 | 210 |
| 2220.055210 | 5.5 | 160 | 210 |
| 2220.060210 | 6 | 160 | 210 |
| 2220.065210 | 6.5 | 160 | 210 |
| 2220.070210 | 7 | 160 | 210 |
| 2220.080210 | 8 | 160 | 210 |
| 2220.090210 | 9 | 160 | 210 |
| 2220.100210 | 10 | 160 | 210 |
| 2220.110210 | 11 | 160 | 210 |
| 2220.120210 | 12 | 160 | 210 |
| 2220.130210 | 13 | 160 | 210 |
| 2220.140210 | 14 | 160 | 210 |
| 2220.150210 | 15 | 160 | 210 |
| 2220.160210 | 16 | 160 | 210 |
| 2220.180210 | 18 | 160 | 210 |
| 2220.190210 | 19 | 160 | 210 |
| 2220.200210 | 20 | 160 | 210 |
| 2220.220210 | 22 | 160 | 210 |
| 2220.240210 | 24 | 160 | 210 |
| 2220.250210 | 25 | 160 | 210 |
| 2220.260210 | 26 | 160 | 210 |
| 2220.280210 | 28 | 160 | 210 |
| 2220.300210 | 30 | 160 | 210 |
| 2220.320210 | 32 | 160 | 210 |
| 2220.050260 | 5 | 210 | 260 |
| 2220.055260 | 5.5 | 210 | 260 |
| 2220.060260 | 6 | 210 | 260 |
| 2220.065260 | 6.5 | 210 | 260 |
| 2220.070260 | 7 | 210 | 260 |
| 2220.080260 | 8 | 210 | 260 |
| 2220.090260 | 9 | 210 | 260 |
| 2220.100260 | 10 | 210 | 260 |
| 2220.110260 | 11 | 210 | 260 |
| 2220.120260 | 12 | 210 | 260 |
| 2220.130260 | 13 | 210 | 260 |
| 2220.140260 | 14 | 210 | 260 |
| 2220.150260 | 15 | 210 | 260 |
| 2220.160260 | 16 | 210 | 260 |
| 2220.180260 | 18 | 210 | 260 |
| 2220.190260 | 19 | 210 | 260 |
| 2220.200260 | 20 | 210 | 260 |
| 2220.220260 | 22 | 210 | 260 |
| 2220.240260 | 24 | 210 | 260 |
| 2220.250260 | 25 | 210 | 260 |
| 2220.260260 | 26 | 210 | 260 |
| 2220.280260 | 28 | 210 | 260 |
| 2220.300260 | 30 | 210 | 260 |
| 2220.320260 | 32 | 210 | 260 |
| 2220.050310 | 5 | 260 | 310 |
| 2220.055310 | 5.5 | 260 | 310 |
| 2220.060310 | 6 | 260 | 310 |
| 2220.065310 | 6.5 | 260 | 310 |
| 2220.070310 | 7 | 260 | 310 |
| 2220.080310 | 8 | 260 | 310 |
| 2220.090310 | 9 | 260 | 310 |
| 2220.100310 | 10 | 260 | 310 |
| 2220.110310 | 11 | 260 | 310 |
| 2220.120310 | 12 | 260 | 310 |
| 2220.130310 | 13 | 260 | 310 |
| 2220.140310 | 14 | 260 | 310 |
| 2220.150310 | 15 | 260 | 310 |
| 2220.160310 | 16 | 260 | 310 |
| 2220.180310 | 18 | 260 | 310 |
| 2220.190310 | 19 | 260 | 310 |
| 2220.200310 | 20 | 260 | 310 |
| 2220.220310 | 22 | 260 | 310 |
| 2220.240310 | 24 | 260 | 310 |
| 2220.250310 | 25 | 260 | 310 |
| 2220.260310 | 26 | 260 | 310 |
| 2220.280310 | 28 | 260 | 310 |
| 2220.300310 | 30 | 260 | 310 |
| 2220.320310 | 32 | 260 | 310 |
| 2220.050350 | 5 | 300 | 350 |
| 2220.055350 | 5.5 | 300 | 350 |
| 2220.060350 | 6 | 300 | 350 |
| 2220.065350 | 6.5 | 300 | 350 |
| 2220.070350 | 7 | 300 | 350 |
| 2220.080350 | 8 | 300 | 350 |
| 2220.090350 | 9 | 300 | 350 |
| 2220.100350 | 10 | 300 | 350 |
| 2220.110350 | 11 | 300 | 350 |
| 2220.120350 | 12 | 300 | 350 |
| 2220.130350 | 13 | 300 | 350 |
| 2220.140350 | 14 | 300 | 350 |
| 2220.150350 | 15 | 300 | 350 |
| 2220.160350 | 16 | 300 | 350 |
| 2220.180350 | 18 | 300 | 350 |
| 2220.190350 | 19 | 300 | 350 |
| 2220.200350 | 20 | 300 | 350 |
| 2220.220350 | 22 | 300 | 350 |
| 2220.240350 | 24 | 300 | 350 |
| 2220.250350 | 25 | 300 | 350 |
| 2220.260350 | 26 | 300 | 350 |
| 2220.280350 | 28 | 300 | 350 |
| 2220.300350 | 30 | 300 | 350 |
| 2220.320350 | 32 | 300 | 350 |
| 2220.050410 | 5 | 360 | 410 |
| 2220.055410 | 5.5 | 360 | 410 |
| 2220.060410 | 6 | 360 | 410 |
| 2220.065410 | 6.5 | 360 | 410 |
| 2220.070410 | 7 | 360 | 410 |
| 2220.080410 | 8 | 360 | 410 |
| 2220.090410 | 9 | 360 | 410 |
| 2220.100410 | 10 | 360 | 410 |
| 2220.110410 | 11 | 360 | 410 |
| 2220.120410 | 12 | 360 | 410 |
| 2220.130410 | 13 | 360 | 410 |
| 2220.140410 | 14 | 360 | 410 |
| 2220.150410 | 15 | 360 | 410 |
| 2220.160410 | 16 | 360 | 410 |
| 2220.180410 | 18 | 360 | 410 |
| 2220.190410 | 19 | 360 | 410 |
| 2220.200410 | 20 | 360 | 410 |
| 2220.220410 | 22 | 360 | 410 |
| 2220.240410 | 24 | 360 | 410 |
| 2220.250410 | 25 | 360 | 410 |
| 2220.260410 | 26 | 360 | 410 |
| 2220.280410 | 28 | 360 | 410 |
| 2220.300410 | 30 | 360 | 410 |
| 2220.320410 | 32 | 360 | 410 |
| 2220.050460 | 5 | 410 | 460 |
| 2220.055460 | 5.5 | 410 | 460 |
| 2220.060460 | 6 | 410 | 460 |
| 2220.065460 | 6.5 | 410 | 460 |
| 2220.070460 | 7 | 410 | 460 |
| 2220.080460 | 8 | 410 | 460 |
| 2220.090460 | 9 | 410 | 460 |
| 2220.100460 | 10 | 410 | 460 |
| 2220.110460 | 11 | 410 | 460 |
| 2220.120460 | 12 | 400 | 460 |
| 2220.130460 | 13 | 400 | 460 |
| 2220.140460 | 14 | 400 | 460 |
| 2220.150460 | 15 | 400 | 460 |
| 2220.160460 | 16 | 400 | 460 |
| 2220.180460 | 18 | 400 | 460 |
| 2220.190460 | 19 | 400 | 460 |
| 2220.200460 | 20 | 400 | 460 |
| 2220.220460 | 22 | 400 | 460 |
| 2220.240460 | 24 | 400 | 460 |
| 2220.250460 | 25 | 400 | 460 |
| 2220.260460 | 26 | 400 | 460 |
| 2220.280460 | 28 | 400 | 460 |
| 2220.300460 | 30 | 400 | 460 |
| 2220.320460 | 32 | 400 | 460 |
| 2220.060550 | 6 | 500 | 550 |
| 2220.065550 | 6.5 | 500 | 550 |
| 2220.070550 | 7 | 500 | 550 |
| 2220.080550 | 8 | 500 | 550 |
| 2220.090550 | 9 | 500 | 550 |
| 2220.100550 | 10 | 500 | 550 |
| 2220.110550 | 11 | 500 | 550 |
| 2220.120550 | 12 | 500 | 550 |
| 2220.130550 | 13 | 500 | 550 |
| 2220.140550 | 14 | 500 | 550 |
| 2220.150550 | 15 | 500 | 550 |
| 2220.160550 | 16 | 500 | 550 |
| 2220.180550 | 18 | 500 | 550 |
| 2220.190550 | 19 | 500 | 550 |
| 2220.200550 | 20 | 500 | 550 |
| 2220.220550 | 22 | 500 | 550 |
| 2220.240550 | 24 | 500 | 550 |
| 2220.250550 | 25 | 500 | 550 |
| 2220.260550 | 26 | 500 | 550 |
| 2220.280550 | 28 | 500 | 550 |
| 2220.300550 | 30 | 500 | 550 |
| 2220.320550 | 32 | 500 | 550 |
| 2220.060600 | 6 | 550 | 600 |
| 2220.065600 | 6.5 | 550 | 600 |
| 2220.070600 | 7 | 550 | 600 |
| 2220.080600 | 8 | 550 | 600 |
| 2220.090600 | 9 | 550 | 600 |
| 2220.100600 | 10 | 550 | 600 |
| 2220.110600 | 11 | 550 | 600 |
| 2220.120600 | 12 | 550 | 600 |
| 2220.130600 | 13 | 550 | 600 |
| 2220.140600 | 14 | 550 | 600 |
| 2220.150600 | 15 | 550 | 600 |
| 2220.160600 | 16 | 550 | 600 |
| 2220.180600 | 18 | 550 | 600 |
| 2220.190600 | 19 | 550 | 600 |
| 2220.200600 | 20 | 550 | 600 |
| 2220.220600 | 22 | 550 | 600 |
| 2220.240600 | 24 | 550 | 600 |
| 2220.250600 | 25 | 550 | 600 |
| 2220.260600 | 26 | 550 | 600 |
| 2220.280600 | 28 | 550 | 600 |
| 2220.300600 | 30 | 550 | 600 |
| 2220.320600 | 32 | 550 | 600 |
| 2220.080800 | 8 | 750 | 800 |
| 2220.090800 | 9 | 750 | 800 |
| 2220.100800 | 10 | 750 | 800 |
| 2220.110800 | 11 | 750 | 800 |
| 2220.120800 | 12 | 750 | 800 |
| 2220.130800 | 13 | 750 | 800 |
| 2220.140800 | 14 | 750 | 800 |
| 2220.150800 | 15 | 750 | 800 |
| 2220.160800 | 16 | 750 | 800 |
| 2220.180800 | 18 | 750 | 800 |
| 2220.190800 | 19 | 750 | 800 |
| 2220.200800 | 20 | 750 | 800 |
| 2220.220800 | 22 | 750 | 800 |
| 2220.240800 | 24 | 750 | 800 |
| 2220.250800 | 25 | 750 | 800 |
| 2220.260800 | 26 | 750 | 800 |
| 2220.280800 | 28 | 750 | 800 |
| 2220.300800 | 30 | 750 | 800 |
| 2220.320800 | 32 | 750 | 800 |
| 2220.101000 | 10 | 950 | 1000 |
| 2220.111000 | 11 | 950 | 1000 |
| 2220.121000 | 12 | 950 | 1000 |
| 2220.131000 | 13 | 950 | 1000 |
| 2220.141000 | 14 | 950 | 1000 |
| 2220.151000 | 15 | 950 | 1000 |
| 2220.161000 | 16 | 950 | 1000 |
| 2220.181000 | 18 | 950 | 1000 |
| 2220.191000 | 19 | 950 | 1000 |
| 2220.201000 | 20 | 950 | 1000 |
| 2220.221000 | 22 | 950 | 1000 |
| 2220.241000 | 24 | 950 | 1000 |
| 2220.251000 | 25 | 950 | 1000 |
| 2220.261000 | 26 | 950 | 1000 |
| 2220.281000 | 28 | 950 | 1000 |
| 2220.301000 | 30 | 950 | 1000 |
| 2220.321000 | 32 | 950 | 1000 |
