Drilling Tools

Customer Design Straight Shank Solid Carbide Drill Bit Coating Altin

Changzhou Jianhua Changsheng Tools Co., Ltd.
  • Customized:Non-Customized
  • Standard:AISI
  • Length:Jobber-length
  • Type:Core Drill Bit
  • Usage:Wood Drilling, PCB Drilling, Metal Drilling, General Purpose,High Speed Drilling
  • Precision:High Precision

Base Info

  • HRC:45,55,60,65 HRC
  • Drill Bit Flutes:1,2,3
  • Flexural Strength:3500-8000n,mm2
  • Diameter:0.5mm-22mm (on Your Requirement)
  • Controlling Mode:CNC System
  • Certificate:ISO9001:2008
  • OEM:Yes
  • Transport Package:Protective Sleeve+Plastic Box+Paper Box+Carton
  • Trademark:ChangCheng
  • Origin:China
  • HS Code:8207191000
  • Production Capacity:100000

Description

Basic Info.

HRC 45/55/60/65 HRC Drill Bit Flutes 1/2/3 Flexural Strength 3500-8000n/mm2 Diameter 0.5mm-22mm (on Your Requirement) Controlling Mode CNC System Certificate ISO9001:2008 OEM Yes Transport Package Protective Sleeve+Plastic Box+Paper Box+Carton Trademark ChangCheng Origin China HS Code 8207191000 Production Capacity 100000

Product Description

Tool modelsEnd mill, Drill Bits, Reamers, Boring cutters, Taps, Saw Blades, Welding Tools, Customized Cutting Tools, etc.
Raw MaterialSolid carbide, Tungsten carbide , HSS…(Customized)
CoatingTIN, TiALN, AlTiN, TiAIN, etc.
Length30-200mm (Customized)
Diameter3mm-40mm (Customized)
HRC45/55/60/65 Degrees
Controlling modeCNC
UsageGeneral High Speed Cutting
Used On CNC Lathe
Used in industrial milling applications such as profile milling, tracer milling, face milling, and plunging
Processing materialAlloy steel, titanium alloy, nickel base alloy, steel, stainless steel, quenched and tempered hardened steel, non-ferrous metals, etc.
ApplicationAutomotive, aviation, aerospace enterprise, motorcycle engine, diesel engine, carburetor, compressor, mold industry, etc.
Customized Available,OEM or ODM Available

Our Advantage

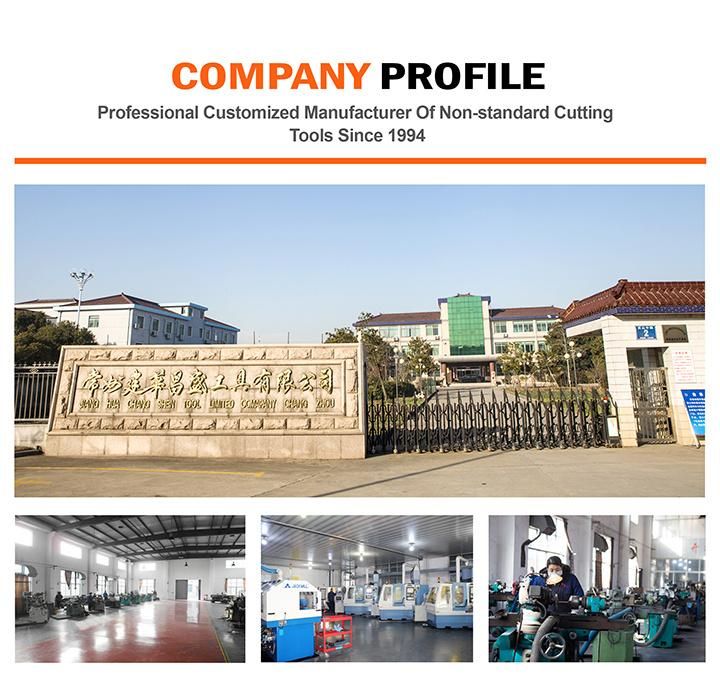

1.Professional: Engaged in designing and producing solid carbide cutting tools since 1994, so rich experience and more professional.

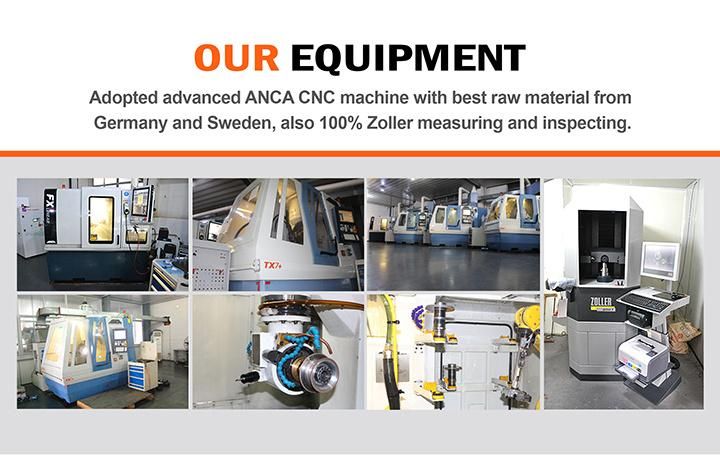

2.High quality: Adopted advanced ANCA CNC machine with best raw material from Germany and Sweden, also 100% Zoller measuring and inspecting.
3.Best service: Produce according to your requirement and provide after-sale help if you need.
4.Price: With our own factory, you can get more competitive price from us.
Customer Design Straight Shank Solid Carbide Drill Bit Coating Altin
Customer Design Straight Shank Solid Carbide Drill Bit Coating Altin

Customer Design Straight Shank Solid Carbide Drill Bit Coating Altin


1.Selected high-quality raw materials
GradeYG10XYG10.2 WF25(Taiwan)K44 K40Sandvik H10F
HardnessHRC50HRC55HRC60HRC65
Grain Size0.7um0.6um0.5um0.4um
Cobalt Content10%10%12%12.50%
Flexural Strength3320N/mm24000N/mm24300N/mm24300N/mm2
100% original raw materials, no recycle

2.Super Coating
 TiNTiCNCrNAlTiNTiSiNNanoDLC
Hardness(HV)2700300025003200360042(GPA)3600
Thickness(UM)2-62-62-62.5-3330.5-10
Oxidation Temp(°)60040070090010001200350
Friction Coefficient0.40.30.20.30.450.40.06
ColorGoldSteelGraySilverGreyBlackCopperBlueSilverGrey
Super coating reduce the coefficient of friction, improve the efficency of machines and improve the tools life much.

3.Imported CNC machine
1.ANCA from Australia
2.Tru Tech from USA
3.Jack Mill from TaiWan province of CHINA

4.Imported Test Machine
1.Zoller Genius 3s  Zoller TFT-Display
2.SEVEN OCEAN part of Hexagon

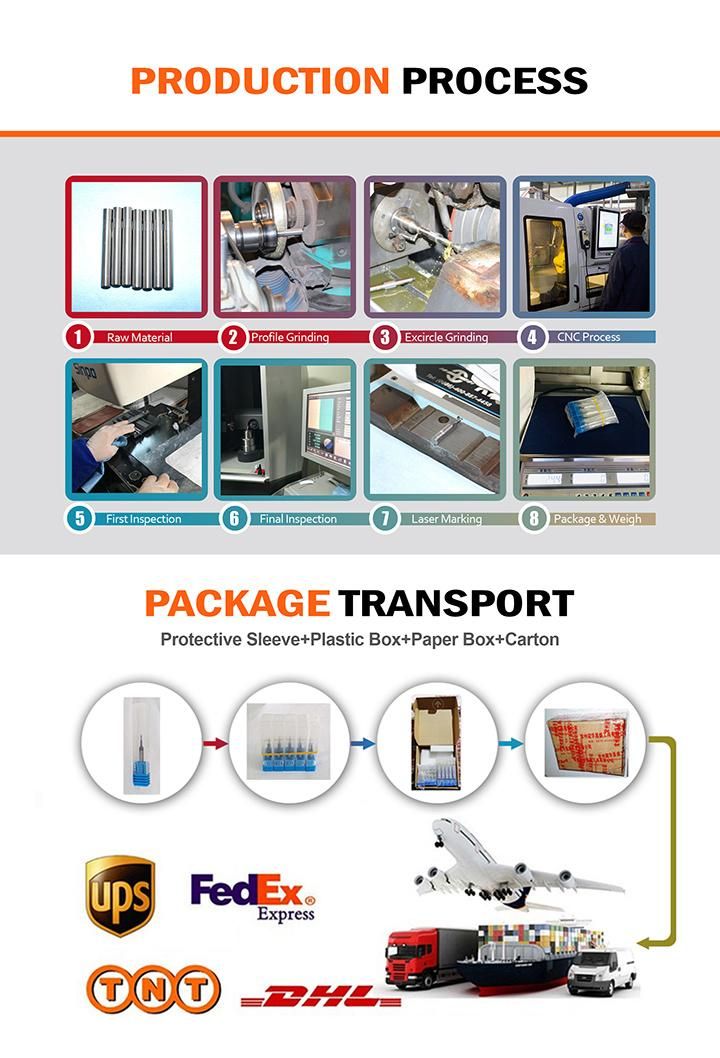

5.Strict measurement sequence Five step test
1.Test the rod after grinding
2.Test when produce the tools
3.Test all parameter the After the tools finished after CNC machine
4.Test flutes After coating
5.Test the packing before shipping
Customer Design Straight Shank Solid Carbide Drill Bit Coating Altin



6.Packaging & Shipping
1.Laser brand and dimensions on the body of cutters, print labels.
2.5PCS or 10PCS each group,sealed with air bubble wrap, pack into bigger carton.
3.Marking and Laser brand can be our and yours, or no. All depend on your require.

7.Delivery Time
1.For samples, we dispatch your tools in 2-7 workdays.
2.For formal orders, We delivery tools to you in 7-30 workdays, it will depond on your order quantity.
