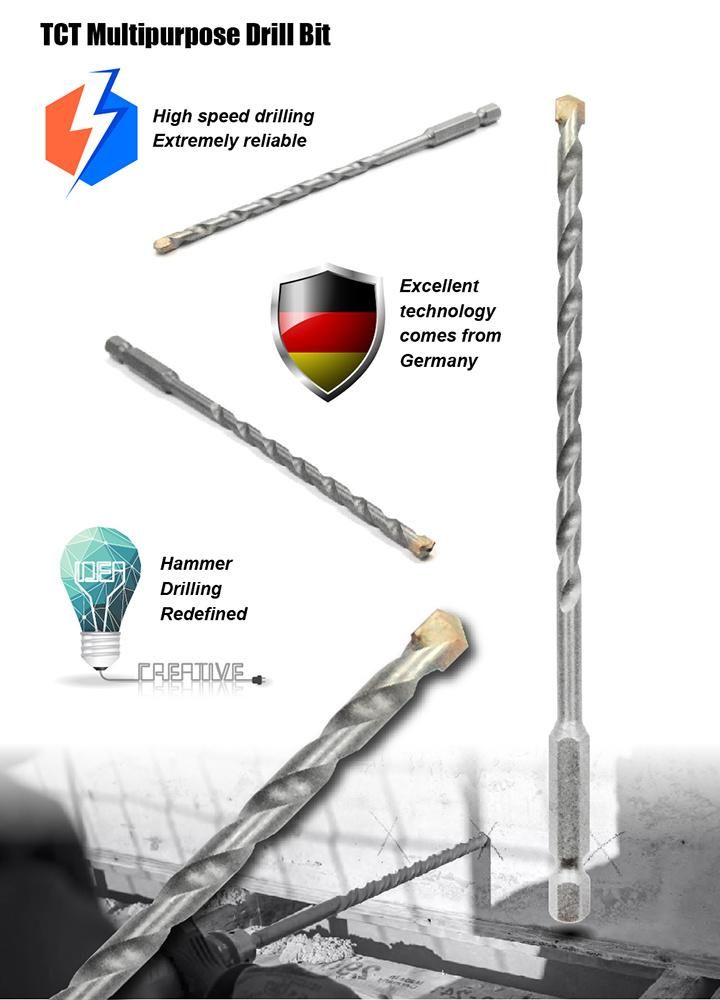

Premium Quality Tct All Purpose Drill Bit U Flute ANSI 1/4inch Quick Change Hex Hank for Various Materials, Concrete Brick Wood MDF Plywood Metal Sheet Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：3-1,2inche to 7-1,2inch
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Wood Drilling, Metal Drilling, Masonry Drilling
Base Info
- Model NO.：3016M
- Carbide Type：Virgin Yg6cx
- Steel Type：40cr
- Flute Type：U
- Cutting Head：Diamond Ground Edges
- Marking：Laser Marking
- Surface Treatment：Shot-Peened
- Shank Type：DIN6.35e(1,4 Inch Quick Change)
- Welding Type：AVS.(Automatic Vacuum Soldering)
- Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
- Specification：1,8inch to 1,2inch diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：4800000PCS,Year
Description
Basic Info.
Model NO. 3016M Carbide Type Virgin Yg6cx Steel Type 40cr Flute Type U Cutting Head Diamond Ground Edges Marking Laser Marking Surface Treatment Shot-Peened Shank Type DIN6.35e(1/4 Inch Quick Change) Welding Type AVS.(Automatic Vacuum Soldering) Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 1/8inch to 1/2inch diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/YearProduct Description

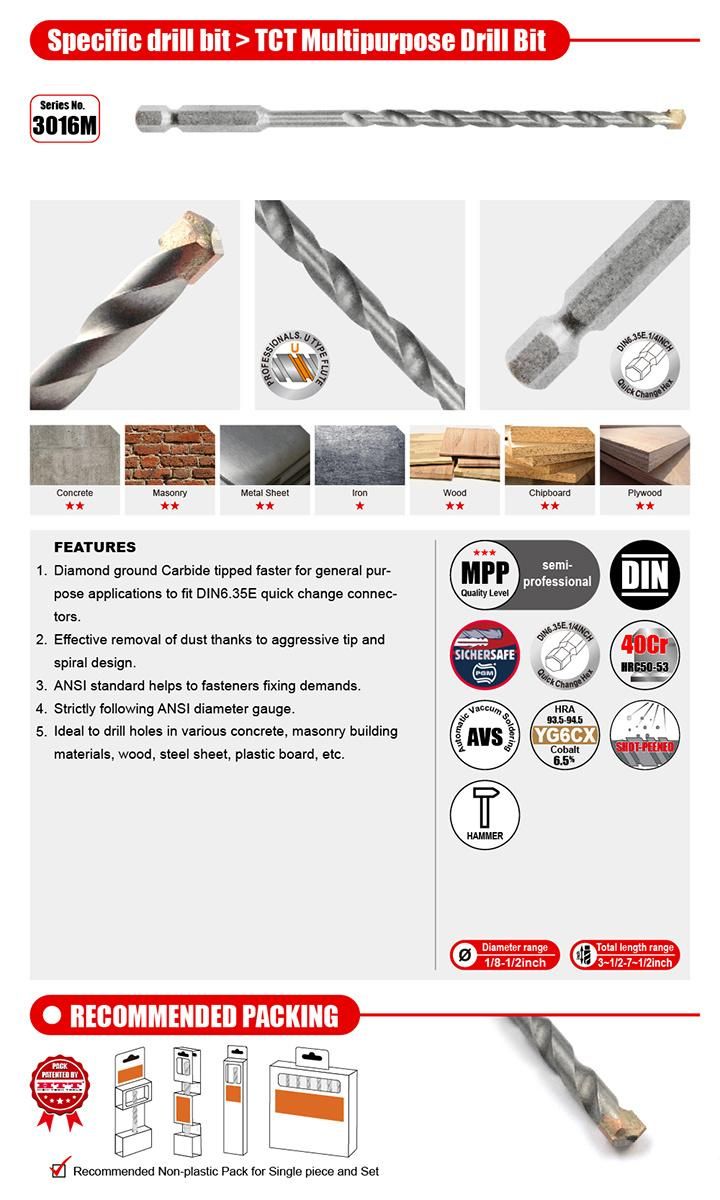

*Premium Quality TCT Multi purpose Drill Bit DIN6.35E shank for drilling various materials, such as concrete, brick, wood, MDF, fibre board, non-ferrous metal sheet, iron steel, tile, ceramics, and cement etc.*Virgin YG6CX super micro grained carbide tip to be with extra high wear-resistance for various material drilling work on the economic costs.
*U type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job
*DIN6.35E quick change hex shank(1/4 quick change) increase the grip power to avoid slip while drilling work and to fit the DIN6.35E quick change connectors and power drill chucks.
*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.
*Other special sizes are also available on the customers' special request.
| Item Number | Diameter(inch) | Working Length(inch) | Overall Length(inch) |
| 3016M.0108312 | 1/8 | 2 | 3-1/2 |
| 3016M.0532312 | 5/32 | 2 | 3-1/2 |
| 3016M.0532412 | 5/32 | 3 | 4-1/2 |
| 3016M.0532512 | 5/32 | 3-1/2 | 5-1/2 |
| 3016M.0316312 | 3/16 | 2 | 3-1/2 |
| 3016M.0316412 | 3/16 | 3 | 4-1/2 |
| 3016M.0316512 | 3/16 | 3-1/2 | 5-1/2 |
| 3016M.0316612 | 3/16 | 3-3/4 | 6-1/2 |
| 3016M.0316712 | 3/16 | 4-3/8 | 7-1/2 |
| 3016M.0104412 | 1/4 | 3 | 4-1/2 |
| 3016M.0104512 | 1/4 | 3-1/2 | 5-1/2 |
| 3016M.0104612 | 1/4 | 3-3/4 | 6-1/2 |
| 3016M.0104712 | 1/4 | 4-3/8 | 7-1/2 |
| 3016M.0516412 | 5/16 | 3 | 4-1/2 |
| 3016M.0516512 | 5/16 | 3-1/2 | 5-1/2 |
| 3016M.0516612 | 5/16 | 3-3/4 | 6-1/2 |
| 3016M.0516712 | 5/16 | 4-3/8 | 7-1/2 |
| 3016M.0308512 | 3/8 | 3-1/2 | 5-1/2 |
| 3016M.0308612 | 3/8 | 3-3/4 | 6-1/2 |
| 3016M.0308712 | 3/8 | 4-3/8 | 7-1/2 |
| 3016M.0716512 | 7/16 | 3-1/2 | 5-1/2 |
| 3016M.0716612 | 7/16 | 3-3/4 | 6-1/2 |
| 3016M.0716712 | 7/16 | 4-3/8 | 7-1/2 |
| 3016M.0102612 | 1/2 | 3-3/4 | 6-1/2 |
| 3016M.0102712 | 1/2 | 4-3/8 | 7-1/2 |
