Cheap Price DTH Hammer for Rock Drilling
Glorytek Industry (Beijing) Co., Ltd.- Customized：Customized
- Certification：CE
- Types：DTH Hammer
- Transport Package：Seaworthy Packing
- Specification：,
- Trademark：Glorytek
Base Info
- Model NO.：DTH Hammer
- Origin：China
- Production Capacity：5000 PCS,Month
Description

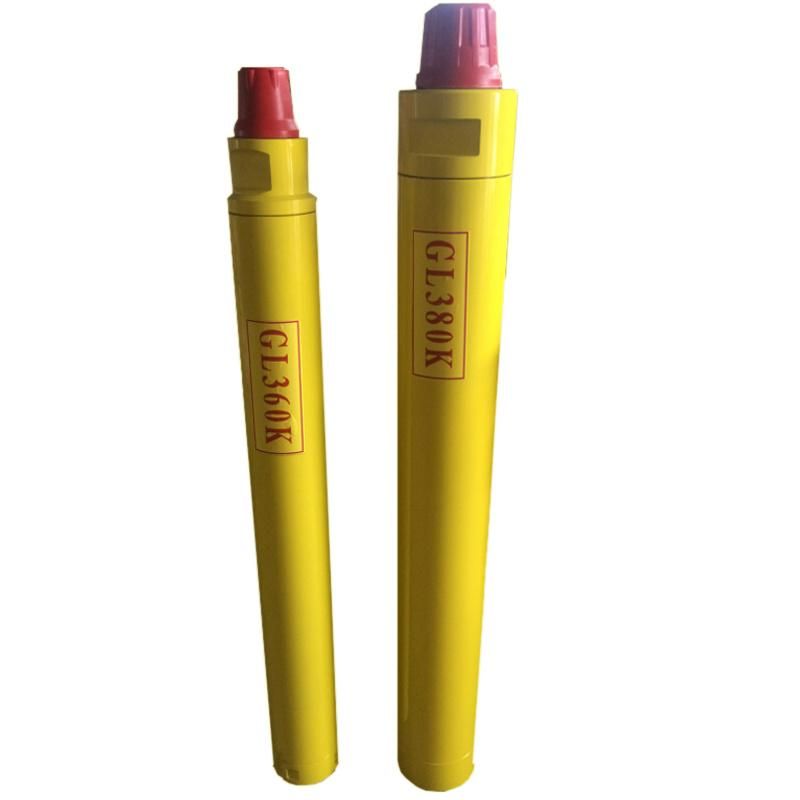

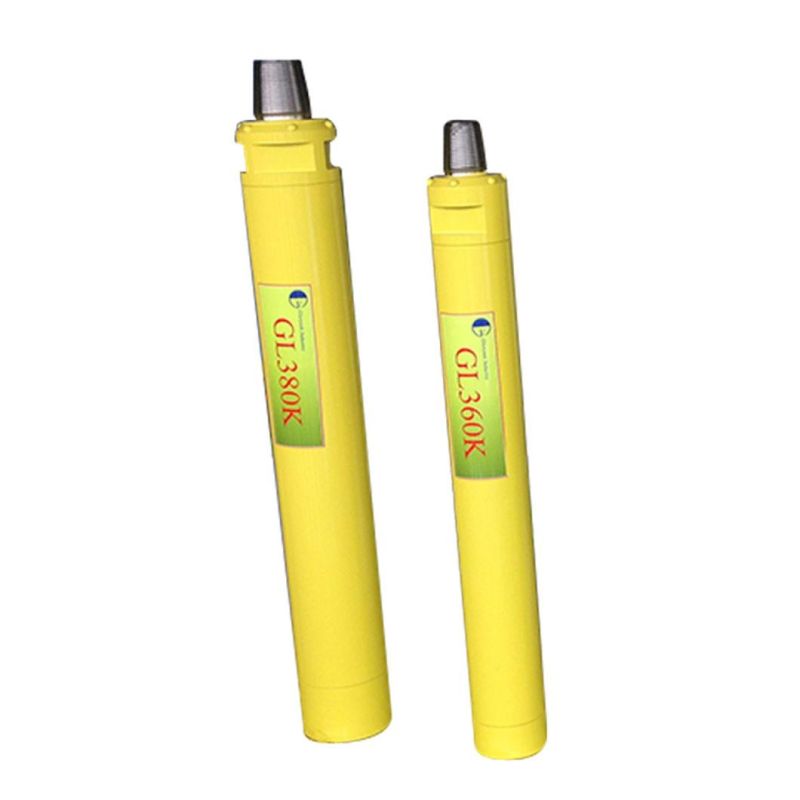

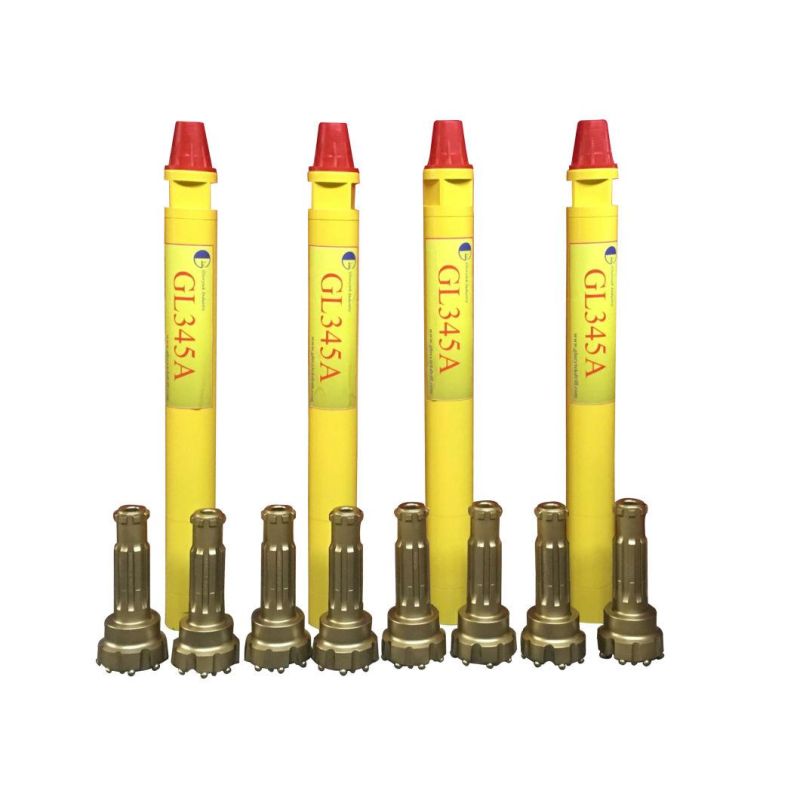

High Efficient High Pressure HammerItem GL340A GL345A GL355K GL360K GL380K Drilling Dia. (φ/mm) 105-130 105-130 140-152 165-219 203-350 Hammer Length(mm) 1052 1034 1098 1372 1504 Outside Dia.(φ/mm) 92 98 124 152 180 Weight(kg) 38 39 70 92 230 Working Pressure(Mpa) 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 0.8-2.1 Air Consumption (M3/Min.) 3.5-18 3.5-15 4.5-18 9- 26 9.6-24.8 Torque(N.M) 304 335 800 1150 1870 Impact Frequency (Times/Min.) ≥800 ≥800 840-1500 950-1650 1100-1550 Connection 1 API 2-3/8 API 2-3/8 API 2-3/8 API 3-1/2 API 4 1-2 Connection 2 φ64-8 φ64-8 φ84-8 φ99.5-8 φ128-10
