• Model NO.：DNTC
• Size：Diameter 12mm-65mm
• Shank Type：Universal Shank
• Treatment：All-Ground
• Performance：Better Endurance
• Transport Package：Plastic Tube

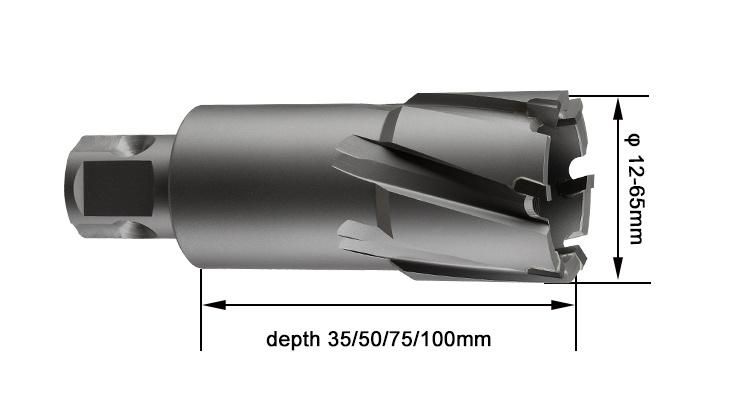

• Specification：diameter 12mm-65mm, depth 35mm
• Trademark：CHTOOLS
• Origin：China
• HS Code：820750900
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. DNTC Size Diameter 12mm-65mm Shank Type Universal Shank Treatment All-Ground Performance Better Endurance Transport Package Plastic Tube Specification diameter 12mm-65mm, depth 35mm Trademark CHTOOLS Origin China HS Code 820750900 Production Capacity 100, 000PCS/Month

Product Description

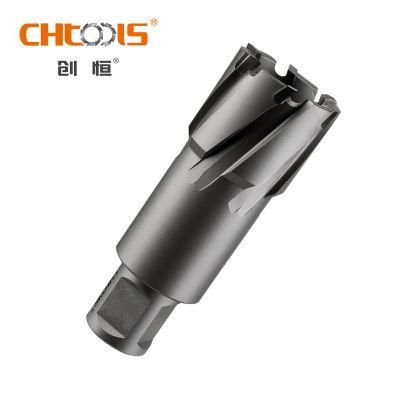

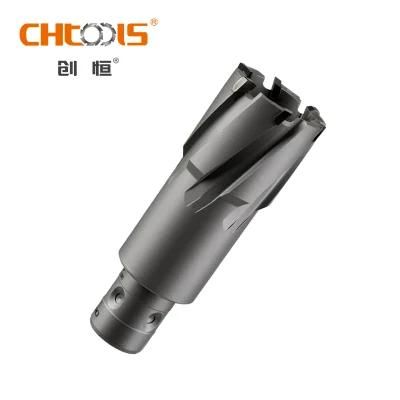

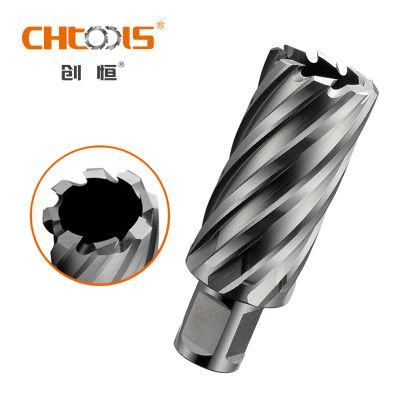

Tct 12-65mm Diamter Broach Cutter for Drill Hole


1. Cutting tool range

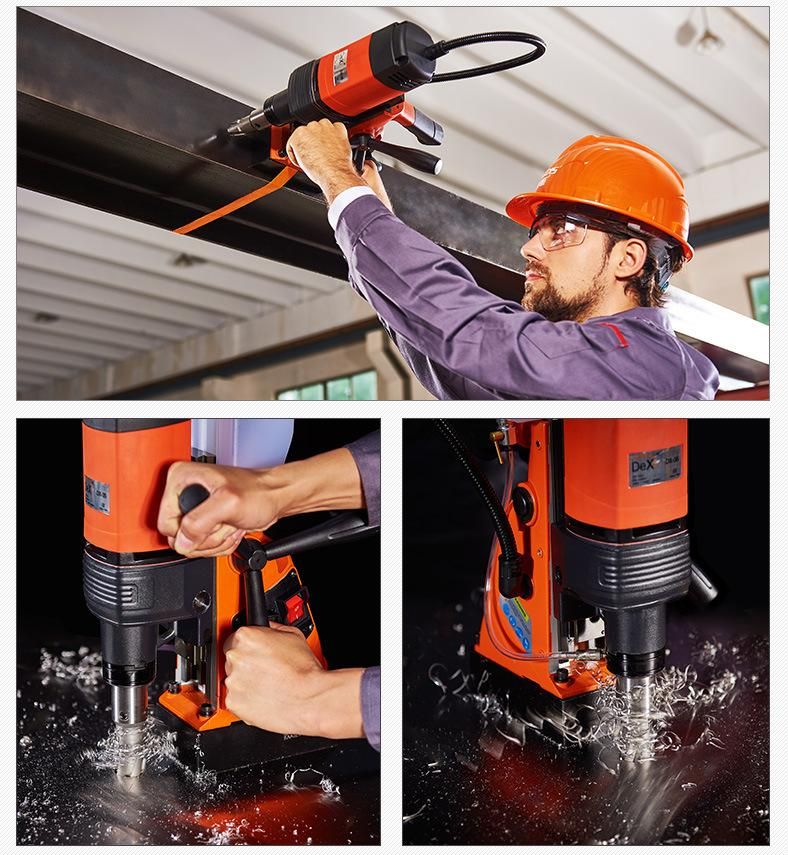

2. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Hougen, Jancy, Euroboor, BDS, Ruko.
3. Can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic. And complex material available for drilling, a higher cutting speed available.
4. Selected speical-purpose carbide tips with multi-cut geometry for ply-cutting and lower friction. Reduced damage of tips and improved performance of ships removal.
5. Multi-ply cutting end edge geometry, to improve removal of chips and keep less resistance.
6. The specifications from the Φ 61mm ~ Φ 150mm, depth of cutting 50mm, 75mm, 100mm series.
7. Can be customized Φ 150mm ~ Φ 200mm, depth can be extended to 200mm according the needs of special occasions
8. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.

Type	Size	Type	Size
DNTC-30120	12*35	DNTC-30340	34*35
DNTC-30130	13*35	DNTC-30350	35*35
DNTC-30140	14*35	DNTC-30360	36*35
DNTC-30150	15*35	DNTC-30370	37*35
DNTC-30160	16*35	DNTC-30380	38*35
DNTC-30170	17*35	DNTC-30390	39*35
DNTC-30180	18*35	DNTC-30400	40*35
DNTC-30185	18.5*35	DNTC-30410	41*35
DNTC-30190	19*35	DNTC-30420	42*35
DNTC-30200	20*35	DNTC-30430	43*35
DNTC-30205	20.5*35	DNTC-30440	44*35
DNTC-30210	21*35	DNTC-30450	45*35
DNTC-30215	21.5*35	DNTC-30460	46*35
DNTC-30220	22*35	DNTC-30470	47*35
DNTC-30225	22.5*35	DNTC-30480	48*35
DNTC-30230	23*35	DNTC-30490	49*35
DNTC-30240	24*35	DNTC-30500	50*35
DNTC-30245	24.5*35	DNTC-30510	51*35
DNTC-30250	25*35	DNTC-30520	52*35
DNTC-30260	26*35	DNTC-30530	53*35
DNTC-30265	26.5*35	DNTC-30540	54*35
DNTC-30270	27*35	DNTC-30550	55*35
DNTC-30280	28*35	DNTC-30560	56*35
DNTC-30290	29*35	DNTC-30570	57*35
DNTC-30300	30*35	DNTC-30580	58*35
DNTC-30310	31*35	DNTC-30590	59*35
DNTC-30320	32*35	DNTC-30600	60*35
DNTC-30330	33*35
