11′′ IADC637 Sealed Bearing Tricone Drill Bits
Hejian Hengji Bit Manufacture Co., Ltd.- Type：Center Drill Bit
- Material：Alloy Steel, Tungsten Carbide
- Usage：Well Drilling
- Certification：ISO
- Model Number：Steel Tooth Bit, TCI Bit
- Bearing Type：Sealed Bearing and Non-Sealed Bearing
Base Info
- Model NO.：IADC CODE
- Suitable Formation：Soft, Medium Soft, Hard, Medium Hard, Very Hard
- Color：Blue or Red

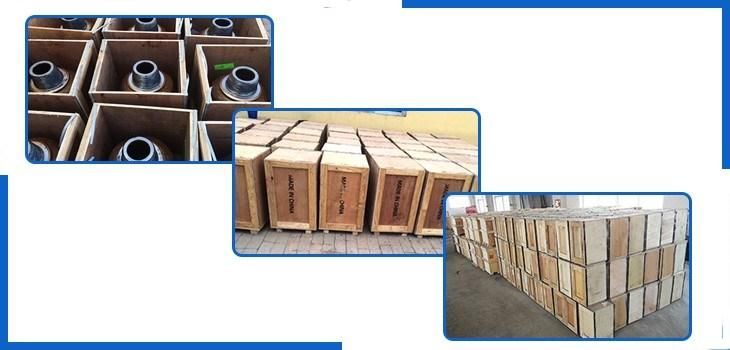

- Transport Package：Wooden Case
- Specification：according requirement
- Trademark：HJ
- Origin：China
- HS Code：8207191
- Production Capacity：500
Description
HENGJI
BIT SPECIFICATION
Bit Size
11'' (279mm)
IADC Code
637Series HR Tooth type TCI/tungsten carbide insert
Connection
6 5/8 API REG PINBearing rubber sealed bearing
Nozzle
three jet nozzles
Rotary Speed(rpm)
120~50
Weight on Bit(KN/MM)
0.45~1.0Application water well,oil well,HDD,exploration,etc
FormationSoft to medium formation with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,etc.
1. Tricone bit cutting structure
Adopting new formula of new technology of the high quality hard alloy tooth, enhance the cutting teeth mechanical properties.
2. Tricone bit diameter structure
Using multiple gage protection structure: Die with multidrug trimming tooth (GT teeth), round back, claw back set have cemented carbide gear, surfacing resistance mo alloy, strengthen ZhaoJian and anterior apply welding, greatly improving the drill gage protection ability.
3. Tricone bit bearing structure
Adopting high precision with radial sliding, two way thrust bearings, ball tight. Tooth claw big shaft neck and two stop surface welding have wear-resisting alloy, cone big hole and two stop surface solution and silver inlaid special alloy, increase the abrasion resistance and resistance bearing vice occlusive ability, improve bearing ability of high speed vice adapt.Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
BIT SPECIFICATION
Bit Size
11'' (279mm)
IADC Code
637
Connection
6 5/8 API REG PIN
Nozzle
three jet nozzles
Rotary Speed(rpm)
120~50
Weight on Bit(KN/MM)
0.45~1.0
Formation
1. Tricone bit cutting structure
Adopting new formula of new technology of the high quality hard alloy tooth, enhance the cutting teeth mechanical properties.
2. Tricone bit diameter structure
Using multiple gage protection structure: Die with multidrug trimming tooth (GT teeth), round back, claw back set have cemented carbide gear, surfacing resistance mo alloy, strengthen ZhaoJian and anterior apply welding, greatly improving the drill gage protection ability.
3. Tricone bit bearing structure
Adopting high precision with radial sliding, two way thrust bearings, ball tight. Tooth claw big shaft neck and two stop surface welding have wear-resisting alloy, cone big hole and two stop surface solution and silver inlaid special alloy, increase the abrasion resistance and resistance bearing vice occlusive ability, improve bearing ability of high speed vice adapt.Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
| Company Information |
| Hejian Hengji Bit Manufacture Co.,LTD is specialized in manufacturing high quality rock bit,especially for tricone bit,PDC bit,hole opener,single cone bit and drag bit.with advanced CNC machines and R&D team and on-time delivery. We have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices . We ship to more than 40 different countries and serve industries such as Oil & Gas, water well , Construction,Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe. Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop. Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim. We have been always insist on"Hengji bit,focusing on quality". |
| Main products tricone bit(mill tooth and tungsten carbide insert tricone bit) PDC bit(matrix body and steel body PDC bit) hole opener(HDD rock reamer,barrel reamer,etc) drag bit(step drag bit,PDC drag bit,chevron drag bit,etc) accessories(single cone,bit breaker,nozzle ,etc) |
